#include "pdr.h"
#include "sensor.h"

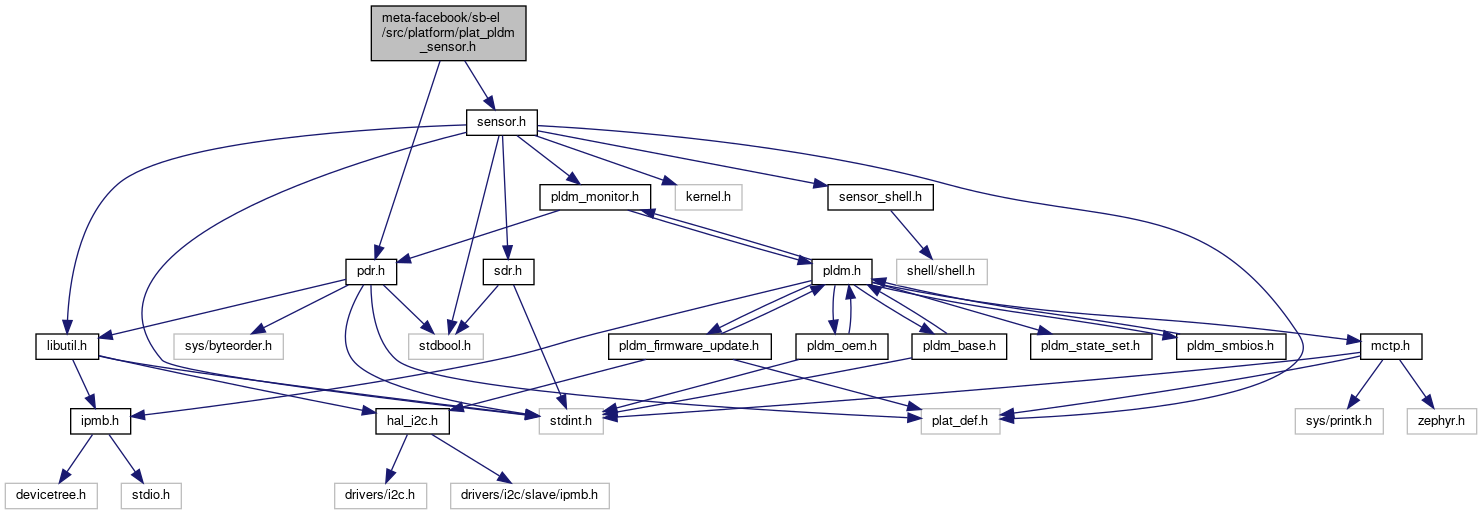

Include dependency graph for plat_pldm_sensor.h:

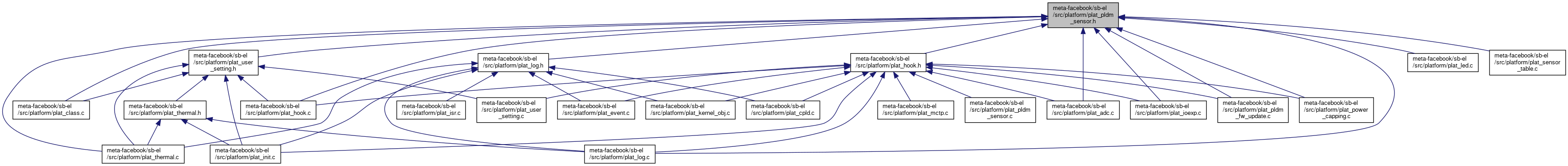

This graph shows which files directly or indirectly include this file:

Classes
struct	_power_capping_time_setting

Macros
#define	QUICK_POLL_INTERVAL 0xFF

#define	VR_DEFAULT_POLLING_INTERVAL_MS 1000

#define	ADDR_UNKNOWN (0xFF >> 1)

#define	TOP_INLET_ADDR (0x92 >> 1)

#define	BOT_INLET_ADDR (0x94 >> 1)

#define	BOT_OUTLET_ADDR (0x96 >> 1)

#define	ASIC_NUWA0_SENSOR0_ADDR (0x98 >> 1)

#define	ASIC_NUWA0_SENSOR1_ADDR (0x98 >> 1)

#define	ASIC_OWL_W_ADDR (0x9A >> 1)

#define	ASIC_OWL_E_ADDR (0x9A >> 1)

#define	ASIC_HAMSA_CRM_ADDR (0x98 >> 1)

#define	ASIC_HAMSA_LS_ADDR (0x98 >> 1)

#define	ASIC_NUWA1_SENSOR0_ADDR (0x9A >> 1)

#define	ASIC_NUWA1_SENSOR1_ADDR (0x9A >> 1)

#define	ASIC_NUWA0_SENSOR0_EMC1413_ADDR (0xD8 >> 1)

#define	ASIC_NUWA0_SENSOR1_EMC1413_ADDR (0xD8 >> 1)

#define	ASIC_OWL_W_EMC1413_ADDR (0x38 >> 1)

#define	ASIC_OWL_E_EMC1413_ADDR (0x38 >> 1)

#define	ASIC_HAMSA_CRM_EMC1413_ADDR (0xD8 >> 1)

#define	ASIC_HAMSA_LS_EMC1413_ADDR (0xD8 >> 1)

#define	ASIC_NUWA1_SENSOR0_EMC1413_ADDR (0x38 >> 1)

#define	ASIC_NUWA1_SENSOR1_EMC1413_ADDR (0x38 >> 1)

#define	ASIC_P0V75_NUWA0_VDD_ADDR (0x50 >> 1)

#define	ASIC_P0V75_NUWA1_VDD_ADDR (0x4C >> 1)

#define	ASIC_P0V9_OWL_E_TRVDD_ADDR (0xEE >> 1)

#define	ASIC_P0V75_OWL_E_TRVDD_ADDR (0xEE >> 1)

#define	ASIC_P0V75_MAX_M_VDD_ADDR (0xEA >> 1)

#define	ASIC_P0V75_VDDPHY_HBM1357_ADDR (0xEA >> 1)

#define	ASIC_P0V75_OWL_E_VDD_ADDR (0xE2 >> 1)

#define	ASIC_P0V4_VDDQL_HBM1357_ADDR (0xE2 >> 1)

#define	ASIC_P1V05_VDDC_HBM1357_ADDR (0xEC >> 1)

#define	ASIC_P1V8_VPP_HBM1357_ADDR (0xEC >> 1)

#define	ASIC_P0V9_VDDQ_HBM1357_ADDR (0xD0 >> 1)

#define	ASIC_P0V85_HAMSA_VDD_ADDR (0xD0 >> 1)

#define	ASIC_P0V75_MAX_N_VDD_ADDR (0xD6 >> 1)

#define	ASIC_P0V8_HAMSA_AVDD_PCIE_ADDR (0xD6 >> 1)

#define	ASIC_P0V9_VDDQ_HBM0246_ADDR (0xD2 >> 1)

#define	ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_ADDR (0xD2 >> 1)

#define	ASIC_P1V05_VDDC_HBM0246_ADDR (0xE0 >> 1)

#define	ASIC_P1V8_VPP_HBM0246_ADDR (0xE0 >> 1)

#define	ASIC_P0V4_VDDQL_HBM0246_ADDR (0xE4 >> 1)

#define	ASIC_P0V75_VDDPHY_HBM0246_ADDR (0xE4 >> 1)

#define	ASIC_P0V75_OWL_W_VDD_ADDR (0xE6 >> 1)

#define	ASIC_P0V75_MAX_S_VDD_ADDR (0xE6 >> 1)

#define	ASIC_P0V9_OWL_W_TRVDD_ADDR (0xD8 >> 1)

#define	ASIC_P0V75_OWL_W_TRVDD_ADDR (0xD8 >> 1)

#define	ASIC_P0V75_NUWA0_VDD_RNS_ADDR (0xEC >> 1)

#define	ASIC_P0V75_NUWA1_VDD_RNS_ADDR (0xE4 >> 1)

#define	ASIC_P0V9_OWL_E_TRVDD_RNS_ADDR (0xC0 >> 1)

#define	ASIC_P0V75_OWL_E_TRVDD_RNS_ADDR (0xC0 >> 1)

#define	ASIC_P0V75_MAX_M_VDD_RNS_ADDR (0xE8 >> 1)

#define	ASIC_P0V75_VDDPHY_HBM1357_RNS_ADDR (0xE8 >> 1)

#define	ASIC_P0V75_OWL_E_VDD_RNS_ADDR (0xC2 >> 1)

#define	ASIC_P0V4_VDDQL_HBM1357_RNS_ADDR (0xC2 >> 1)

#define	ASIC_P1V05_VDDC_HBM1357_RNS_ADDR (0xC6 >> 1)

#define	ASIC_P1V8_VPP_HBM1357_RNS_ADDR (0xC6 >> 1)

#define	ASIC_P0V9_VDDQ_HBM1357_RNS_ADDR (0xEA >> 1)

#define	ASIC_P0V85_HAMSA_VDD_RNS_ADDR (0xEA >> 1)

#define	ASIC_P0V75_MAX_N_VDD_RNS_ADDR (0xC2 >> 1)

#define	ASIC_P0V8_HAMSA_AVDD_PCIE_RNS_ADDR (0xC2 >> 1)

#define	ASIC_P0V9_VDDQ_HBM0246_RNS_ADDR (0xC6 >> 1)

#define	ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_RNS_ADDR (0xC6 >> 1)

#define	ASIC_P1V05_VDDC_HBM0246_RNS_ADDR (0xC0 >> 1)

#define	ASIC_P1V8_VPP_HBM0246_RNS_ADDR (0xC0 >> 1)

#define	ASIC_P0V4_VDDQL_HBM0246_RNS_ADDR (0xE8 >> 1)

#define	ASIC_P0V75_VDDPHY_HBM0246_RNS_ADDR (0xE8 >> 1)

#define	ASIC_P0V75_OWL_W_VDD_RNS_ADDR (0xE4 >> 1)

#define	ASIC_P0V75_MAX_S_VDD_RNS_ADDR (0xE4 >> 1)

#define	ASIC_P0V9_OWL_W_TRVDD_RNS_ADDR (0xEA >> 1)

#define	ASIC_P0V75_OWL_W_TRVDD_RNS_ADDR (0xEA >> 1)

#define	UBC1_ADDR (0x2E >> 1)

#define	UBC2_ADDR (0x34 >> 1)

#define	P3V3_OSFP_ADDR (0xFA >> 1)

#define	TMP75_TEMP_OFFSET 0x00

#define	UPDATE_INTERVAL_1S 1

#define	UPDATE_INTERVAL_5S 5

#define	UPDATE_INTERVAL_60S 60

#define	ONE_STEP_POWER_MAGIC_NUMBER 0x56

Typedefs
typedef struct _power_capping_time_setting	power_capping_time_setting

Enumerations
enum	SENSOR_NUM_LIST { SENSOR_NUM_TOP_INLET_TEMP_C = 0x01 , SENSOR_NUM_BOT_INLET_TEMP_C , SENSOR_NUM_BOT_OUTLET_TEMP_C , SENSOR_NUM_ASIC_NUWA0_SENSOR0_TEMP_C , SENSOR_NUM_ASIC_NUWA0_SENSOR1_TEMP_C , SENSOR_NUM_ASIC_OWL_W_TEMP_C , SENSOR_NUM_ASIC_OWL_E_TEMP_C , SENSOR_NUM_ASIC_NUWA1_SENSOR0_TEMP_C , SENSOR_NUM_ASIC_NUWA1_SENSOR1_TEMP_C , SENSOR_NUM_ASIC_HAMSA_CRM_TEMP_C , SENSOR_NUM_ASIC_HAMSA_LS_TEMP_C , SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_CURR_A , SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_PWR_W , SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_CURR_A , SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_PWR_W , SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_TEMP_C , SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_VOLT_V , SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_CURR_A , SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_PWR_W , SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_CURR_A , SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_PWR_W , SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_CURR_A , SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_PWR_W , SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_TEMP_C , SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_VOLT_V , SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_CURR_A , SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_PWR_W , SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_CURR_A , SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_PWR_W , SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_CURR_A , SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_PWR_W , SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_CURR_A , SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_PWR_W , SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_CURR_A , SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_PWR_W , SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_TEMP_C , SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_VOLT_V , SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_CURR_A , SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_PWR_W , SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_TEMP_C , SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_VOLT_V , SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_CURR_A , SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_PWR_W , SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_TEMP_C , SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_VOLT_V , SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_CURR_A , SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_PWR_W , SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_TEMP_C , SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_VOLT_V , SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_CURR_A , SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_PWR_W , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_TEMP_C , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_VOLT_V , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_CURR_A , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_PWR_W , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_TEMP_C , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_VOLT_V , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_CURR_A , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_PWR_W , SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_TEMP_C , SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_VOLT_V , SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_CURR_A , SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_PWR_W , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_TEMP_C , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_VOLT_V , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_CURR_A , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_PWR_W , SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_TEMP_C , SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_VOLT_V , SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_CURR_A , SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_PWR_W , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_TEMP_C , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_VOLT_V , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_CURR_A , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_PWR_W , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_TEMP_C , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_VOLT_V , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_CURR_A , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_PWR_W , SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_TEMP_C , SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_VOLT_V , SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_CURR_A , SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_PWR_W , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_TEMP_C , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_VOLT_V , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_CURR_A , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_PWR_W , SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_TEMP_C , SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_VOLT_V , SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_CURR_A , SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_PWR_W , SENSOR_NUM_UBC1_P12V_TEMP_C , SENSOR_NUM_UBC1_P12V_VOLT_V , SENSOR_NUM_UBC1_P12V_CURR_A , SENSOR_NUM_UBC1_P12V_PWR_W , SENSOR_NUM_UBC1_P52V_INPUT_VOLT_V , SENSOR_NUM_UBC2_P12V_TEMP_C , SENSOR_NUM_UBC2_P12V_VOLT_V , SENSOR_NUM_UBC2_P12V_CURR_A , SENSOR_NUM_UBC2_P12V_PWR_W , SENSOR_NUM_UBC2_P52V_INPUT_VOLT_V , SENSOR_NUM_P3V3_OSFP_TEMP_C , SENSOR_NUM_P3V3_OSFP_VOLT_V , SENSOR_NUM_P3V3_OSFP_CURR_A , SENSOR_NUM_P3V3_OSFP_PWR_W , SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_INPUT_VOLT_V , SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_INPUT_VOLT_V , SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_INPUT_VOLT_V , SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_INPUT_VOLT_V , SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_INPUT_VOLT_V , SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_INPUT_VOLT_V , SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_INPUT_VOLT_V , SENSOR_NUM_P3V3_OSFP_INPUT_VOLT_V , SENSOR_NUM_NUMBERS , SENSOR_NUM_THERMAL_SENSOR_1_TEMP_C = 0x01 , SENSOR_NUM_THERMAL_SENSOR_2_TEMP_C , SENSOR_NUM_PCIE_SWITCH_PEX90144_TEMP_C , SENSOR_NUM_VR_ASIC_P0V895_PEX_TEMP_C , SENSOR_NUM_VR_ASIC_P0V895_PEX_VOLT_V , SENSOR_NUM_VR_ASIC_P0V895_PEX_CURR_A , SENSOR_NUM_VR_ASIC_P0V895_PEX_PWR_W , SENSOR_NUM_VR_ASIC_P0V825_A0_TEMP_C , SENSOR_NUM_VR_ASIC_P0V825_A0_VOLT_V , SENSOR_NUM_VR_ASIC_P0V825_A0_CURR_A , SENSOR_NUM_VR_ASIC_P0V825_A0_PWR_W , SENSOR_NUM_VR_ASIC_P0V825_A1_TEMP_C , SENSOR_NUM_VR_ASIC_P0V825_A1_VOLT_V , SENSOR_NUM_VR_ASIC_P0V825_A1_CURR_A , SENSOR_NUM_VR_ASIC_P0V825_A1_PWR_W , SENSOR_NUM_VR_ASIC_P0V825_A2_TEMP_C , SENSOR_NUM_VR_ASIC_P0V825_A2_VOLT_V , SENSOR_NUM_VR_ASIC_P0V825_A2_CURR_A , SENSOR_NUM_VR_ASIC_P0V825_A2_PWR_W , SENSOR_NUM_ADC_P12V_SCALED_VOLT_V , SENSOR_NUM_ADC_P5V_STBY_SCALED_VOLT_V , SENSOR_NUM_ADC_P3V3_AUX_SCALED_VOLT_V , SENSOR_NUM_ADC_P1V5_PEX_SCALED_VOLT_V , SENSOR_NUM_ADC_P1V2_PEX_SCALED_VOLT_V , SENSOR_NUM_ADC_P1V8_PEX_SCALED_VOLT_V }

enum	SENSOR_THREAD_LIST { UBC_SENSOR_THREAD_ID = 0 , VR_SENSOR_P3V3_THREAD_ID , VR_SENSOR_P0V85_PVDD_THREAD_ID , VR_SENSOR_THREAD_ID , TEMP_SENSOR_THREAD_ID , MAX_SENSOR_THREAD_ID , TEMP_SENSOR_THREAD_ID = 0 , VR_SENSOR_THREAD_ID , QUICK_VR_SENSOR_THREAD_ID , UBC_SENSOR_THREAD_ID , EVB_SENSOR_THREAD_ID , MAX_SENSOR_THREAD_ID , TEMP_SENSOR_THREAD_ID = 0 , VR_SENSOR_THREAD_ID , QUICK_VR_SENSOR_THREAD_ID , UBC_SENSOR_THREAD_ID , EVB_SENSOR_THREAD_ID , MAX_SENSOR_THREAD_ID , TEMP_SENSOR_THREAD_ID = 0 , VR_SENSOR_THREAD_ID , ADC_SENSOR_THREAD_ID , MAX_SENSOR_THREAD_ID , TMP_SENSOR_THREAD_ID = 0 , ADC_SENSOR_THREAD_ID , INA233_SENSOR_THREAD_ID , VR_SENSOR_THREAD_ID , DIMM_SENSOR_THREAD_ID , MAX_SENSOR_THREAD_ID , ADC_SENSOR_THREAD_ID = 0 , VR_SENSOR_THREAD_ID , MB_TEMP_SENSOR_THREAD_ID , CPU_SENSOR_THREAD_ID , INA233_SENSOR_THREAD_ID , DIMM_SENSOR_THREAD_ID , MAX_SENSOR_THREAD_ID , ADC_SENSOR_THREAD_ID = 0 , TMP_SENSOR_THREAD_ID , INA233_SENSOR_THREAD_ID , VR_SENSOR_THREAD_ID , DIMM_SENSOR_THREAD_ID , ADC_MONITOR_SENSOR_THREAD_ID , MAX_SENSOR_THREAD_ID }

enum	TMP_ADDRESS_VIRSION { FAB1_1ND_TMP432 = 0 , FAB1_2ND_EMC1413 , MAX_TMP_ADDRESS_VIRSION }

enum	VR_ADDRESS_VIRSION { FAB1_1ND_MPS = 0 , FAB1_2ND_RNS , MAX_VR_ADDRESS_VIRSION , OLD_MPS = 0 , OLD_RNS , NEW_MPS , NEW_RNS , MAX_VR_ADDRESS_VIRSION }

Functions
int	plat_pldm_sensor_get_sensor_count (int thread_id)

sensor_cfg *	get_sensor_cfg_by_sensor_id (uint8_t sensor_id)

void	plat_pldm_sensor_get_pdr_numeric_sensor (int thread_id, int sensor_num, PDR_numeric_sensor *numeric_sensor_table)

bool	is_dc_access (uint8_t sensor_num)

void	set_plat_sensor_polling_enable_flag (bool value)

void	set_plat_sensor_ubc_polling_enable_flag (bool value)

void	set_plat_sensor_temp_polling_enable_flag (bool value)

void	set_plat_sensor_vr_polling_enable_flag (bool value)

void	set_plat_sensor_one_step_enable_flag (uint8_t value)

bool	get_plat_sensor_polling_enable_flag ()

bool	get_plat_sensor_ubc_polling_enable_flag ()

bool	get_plat_sensor_temp_polling_enable_flag ()

bool	get_plat_sensor_vr_polling_enable_flag ()

uint8_t	get_plat_sensor_one_step_enable_flag ()

bool	is_ubc_access (uint8_t sensor_num)

bool	is_temp_access (uint8_t cfg_idx)

bool	is_vr_access (uint8_t sensor_num)

size_t	char16_strlen (const char16_t *str)

char16_t *	char16_strcpy (char16_t dest, const char16_t src)

char16_t *	char16_strcat_char (char16_t *dest, char16_t ch)

bool	get_raw_data_from_sensor_id (uint8_t sensor_id, uint8_t offset, uint8_t *val, uint8_t len)

void	change_sensor_cfg (uint8_t asic_board_id, uint8_t tmp_module, uint8_t vr_module, uint8_t ubc_module, uint8_t board_rev_id)

uint8_t	convert_tmp_addr (uint8_t bus, uint8_t addr, uint8_t tmp_change_mode)

uint8_t	convert_vr_addr (uint8_t bus, uint8_t addr, uint8_t vr_change_mode)

uint32_t	plat_get_pdr_size (uint8_t pdr_type)

void	plat_pldm_sensor_set_quick_vr_poll_interval (uint8_t type, uint8_t capping_source)

void	quick_sensor_poll_init ()

void	set_ioe_init_flag (uint8_t flag)

uint8_t	get_ioe_init_flag ()

PDR_numeric_sensor *	get_pdr_numeric_sensor_by_sensor_id (uint8_t sensor_id)

uint8_t	get_pwr_capping_polling_rate_type ()

uint16_t	get_quick_nuwa_polling_rate ()

Macro Definition Documentation

◆ ADDR_UNKNOWN

#define ADDR_UNKNOWN (0xFF >> 1)

◆ ASIC_HAMSA_CRM_ADDR

#define ASIC_HAMSA_CRM_ADDR (0x98 >> 1)

◆ ASIC_HAMSA_CRM_EMC1413_ADDR

#define ASIC_HAMSA_CRM_EMC1413_ADDR (0xD8 >> 1)

◆ ASIC_HAMSA_LS_ADDR

#define ASIC_HAMSA_LS_ADDR (0x98 >> 1)

◆ ASIC_HAMSA_LS_EMC1413_ADDR

#define ASIC_HAMSA_LS_EMC1413_ADDR (0xD8 >> 1)

◆ ASIC_NUWA0_SENSOR0_ADDR

#define ASIC_NUWA0_SENSOR0_ADDR (0x98 >> 1)

◆ ASIC_NUWA0_SENSOR0_EMC1413_ADDR

#define ASIC_NUWA0_SENSOR0_EMC1413_ADDR (0xD8 >> 1)

◆ ASIC_NUWA0_SENSOR1_ADDR

#define ASIC_NUWA0_SENSOR1_ADDR (0x98 >> 1)

◆ ASIC_NUWA0_SENSOR1_EMC1413_ADDR

#define ASIC_NUWA0_SENSOR1_EMC1413_ADDR (0xD8 >> 1)

◆ ASIC_NUWA1_SENSOR0_ADDR

#define ASIC_NUWA1_SENSOR0_ADDR (0x9A >> 1)

◆ ASIC_NUWA1_SENSOR0_EMC1413_ADDR

#define ASIC_NUWA1_SENSOR0_EMC1413_ADDR (0x38 >> 1)

◆ ASIC_NUWA1_SENSOR1_ADDR

#define ASIC_NUWA1_SENSOR1_ADDR (0x9A >> 1)

◆ ASIC_NUWA1_SENSOR1_EMC1413_ADDR

#define ASIC_NUWA1_SENSOR1_EMC1413_ADDR (0x38 >> 1)

◆ ASIC_OWL_E_ADDR

#define ASIC_OWL_E_ADDR (0x9A >> 1)

◆ ASIC_OWL_E_EMC1413_ADDR

#define ASIC_OWL_E_EMC1413_ADDR (0x38 >> 1)

◆ ASIC_OWL_W_ADDR

#define ASIC_OWL_W_ADDR (0x9A >> 1)

◆ ASIC_OWL_W_EMC1413_ADDR

#define ASIC_OWL_W_EMC1413_ADDR (0x38 >> 1)

◆ ASIC_P0V4_VDDQL_HBM0246_ADDR

#define ASIC_P0V4_VDDQL_HBM0246_ADDR (0xE4 >> 1)

◆ ASIC_P0V4_VDDQL_HBM0246_RNS_ADDR

#define ASIC_P0V4_VDDQL_HBM0246_RNS_ADDR (0xE8 >> 1)

◆ ASIC_P0V4_VDDQL_HBM1357_ADDR

#define ASIC_P0V4_VDDQL_HBM1357_ADDR (0xE2 >> 1)

◆ ASIC_P0V4_VDDQL_HBM1357_RNS_ADDR

#define ASIC_P0V4_VDDQL_HBM1357_RNS_ADDR (0xC2 >> 1)

◆ ASIC_P0V75_MAX_M_VDD_ADDR

#define ASIC_P0V75_MAX_M_VDD_ADDR (0xEA >> 1)

◆ ASIC_P0V75_MAX_M_VDD_RNS_ADDR

#define ASIC_P0V75_MAX_M_VDD_RNS_ADDR (0xE8 >> 1)

◆ ASIC_P0V75_MAX_N_VDD_ADDR

#define ASIC_P0V75_MAX_N_VDD_ADDR (0xD6 >> 1)

◆ ASIC_P0V75_MAX_N_VDD_RNS_ADDR

#define ASIC_P0V75_MAX_N_VDD_RNS_ADDR (0xC2 >> 1)

◆ ASIC_P0V75_MAX_S_VDD_ADDR

#define ASIC_P0V75_MAX_S_VDD_ADDR (0xE6 >> 1)

◆ ASIC_P0V75_MAX_S_VDD_RNS_ADDR

#define ASIC_P0V75_MAX_S_VDD_RNS_ADDR (0xE4 >> 1)

◆ ASIC_P0V75_NUWA0_VDD_ADDR

#define ASIC_P0V75_NUWA0_VDD_ADDR (0x50 >> 1)

◆ ASIC_P0V75_NUWA0_VDD_RNS_ADDR

#define ASIC_P0V75_NUWA0_VDD_RNS_ADDR (0xEC >> 1)

◆ ASIC_P0V75_NUWA1_VDD_ADDR

#define ASIC_P0V75_NUWA1_VDD_ADDR (0x4C >> 1)

◆ ASIC_P0V75_NUWA1_VDD_RNS_ADDR

#define ASIC_P0V75_NUWA1_VDD_RNS_ADDR (0xE4 >> 1)

◆ ASIC_P0V75_OWL_E_TRVDD_ADDR

#define ASIC_P0V75_OWL_E_TRVDD_ADDR (0xEE >> 1)

◆ ASIC_P0V75_OWL_E_TRVDD_RNS_ADDR

#define ASIC_P0V75_OWL_E_TRVDD_RNS_ADDR (0xC0 >> 1)

◆ ASIC_P0V75_OWL_E_VDD_ADDR

#define ASIC_P0V75_OWL_E_VDD_ADDR (0xE2 >> 1)

◆ ASIC_P0V75_OWL_E_VDD_RNS_ADDR

#define ASIC_P0V75_OWL_E_VDD_RNS_ADDR (0xC2 >> 1)

◆ ASIC_P0V75_OWL_W_TRVDD_ADDR

#define ASIC_P0V75_OWL_W_TRVDD_ADDR (0xD8 >> 1)

◆ ASIC_P0V75_OWL_W_TRVDD_RNS_ADDR

#define ASIC_P0V75_OWL_W_TRVDD_RNS_ADDR (0xEA >> 1)

◆ ASIC_P0V75_OWL_W_VDD_ADDR

#define ASIC_P0V75_OWL_W_VDD_ADDR (0xE6 >> 1)

◆ ASIC_P0V75_OWL_W_VDD_RNS_ADDR

#define ASIC_P0V75_OWL_W_VDD_RNS_ADDR (0xE4 >> 1)

◆ ASIC_P0V75_VDDPHY_HBM0246_ADDR

#define ASIC_P0V75_VDDPHY_HBM0246_ADDR (0xE4 >> 1)

◆ ASIC_P0V75_VDDPHY_HBM0246_RNS_ADDR

#define ASIC_P0V75_VDDPHY_HBM0246_RNS_ADDR (0xE8 >> 1)

◆ ASIC_P0V75_VDDPHY_HBM1357_ADDR

#define ASIC_P0V75_VDDPHY_HBM1357_ADDR (0xEA >> 1)

◆ ASIC_P0V75_VDDPHY_HBM1357_RNS_ADDR

#define ASIC_P0V75_VDDPHY_HBM1357_RNS_ADDR (0xE8 >> 1)

◆ ASIC_P0V85_HAMSA_VDD_ADDR

#define ASIC_P0V85_HAMSA_VDD_ADDR (0xD0 >> 1)

◆ ASIC_P0V85_HAMSA_VDD_RNS_ADDR

#define ASIC_P0V85_HAMSA_VDD_RNS_ADDR (0xEA >> 1)

◆ ASIC_P0V8_HAMSA_AVDD_PCIE_ADDR

#define ASIC_P0V8_HAMSA_AVDD_PCIE_ADDR (0xD6 >> 1)

◆ ASIC_P0V8_HAMSA_AVDD_PCIE_RNS_ADDR

#define ASIC_P0V8_HAMSA_AVDD_PCIE_RNS_ADDR (0xC2 >> 1)

◆ ASIC_P0V9_OWL_E_TRVDD_ADDR

#define ASIC_P0V9_OWL_E_TRVDD_ADDR (0xEE >> 1)

◆ ASIC_P0V9_OWL_E_TRVDD_RNS_ADDR

#define ASIC_P0V9_OWL_E_TRVDD_RNS_ADDR (0xC0 >> 1)

◆ ASIC_P0V9_OWL_W_TRVDD_ADDR

#define ASIC_P0V9_OWL_W_TRVDD_ADDR (0xD8 >> 1)

◆ ASIC_P0V9_OWL_W_TRVDD_RNS_ADDR

#define ASIC_P0V9_OWL_W_TRVDD_RNS_ADDR (0xEA >> 1)

◆ ASIC_P0V9_VDDQ_HBM0246_ADDR

#define ASIC_P0V9_VDDQ_HBM0246_ADDR (0xD2 >> 1)

◆ ASIC_P0V9_VDDQ_HBM0246_RNS_ADDR

#define ASIC_P0V9_VDDQ_HBM0246_RNS_ADDR (0xC6 >> 1)

◆ ASIC_P0V9_VDDQ_HBM1357_ADDR

#define ASIC_P0V9_VDDQ_HBM1357_ADDR (0xD0 >> 1)

◆ ASIC_P0V9_VDDQ_HBM1357_RNS_ADDR

#define ASIC_P0V9_VDDQ_HBM1357_RNS_ADDR (0xEA >> 1)

◆ ASIC_P1V05_VDDC_HBM0246_ADDR

#define ASIC_P1V05_VDDC_HBM0246_ADDR (0xE0 >> 1)

◆ ASIC_P1V05_VDDC_HBM0246_RNS_ADDR

#define ASIC_P1V05_VDDC_HBM0246_RNS_ADDR (0xC0 >> 1)

◆ ASIC_P1V05_VDDC_HBM1357_ADDR

#define ASIC_P1V05_VDDC_HBM1357_ADDR (0xEC >> 1)

◆ ASIC_P1V05_VDDC_HBM1357_RNS_ADDR

#define ASIC_P1V05_VDDC_HBM1357_RNS_ADDR (0xC6 >> 1)

◆ ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_ADDR

#define ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_ADDR (0xD2 >> 1)

◆ ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_RNS_ADDR

#define ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_RNS_ADDR (0xC6 >> 1)

◆ ASIC_P1V8_VPP_HBM0246_ADDR

#define ASIC_P1V8_VPP_HBM0246_ADDR (0xE0 >> 1)

◆ ASIC_P1V8_VPP_HBM0246_RNS_ADDR

#define ASIC_P1V8_VPP_HBM0246_RNS_ADDR (0xC0 >> 1)

◆ ASIC_P1V8_VPP_HBM1357_ADDR

#define ASIC_P1V8_VPP_HBM1357_ADDR (0xEC >> 1)

◆ ASIC_P1V8_VPP_HBM1357_RNS_ADDR

#define ASIC_P1V8_VPP_HBM1357_RNS_ADDR (0xC6 >> 1)

◆ BOT_INLET_ADDR

#define BOT_INLET_ADDR (0x94 >> 1)

◆ BOT_OUTLET_ADDR

#define BOT_OUTLET_ADDR (0x96 >> 1)

◆ ONE_STEP_POWER_MAGIC_NUMBER

#define ONE_STEP_POWER_MAGIC_NUMBER 0x56

◆ P3V3_OSFP_ADDR

#define P3V3_OSFP_ADDR (0xFA >> 1)

◆ QUICK_POLL_INTERVAL

#define QUICK_POLL_INTERVAL 0xFF

◆ TMP75_TEMP_OFFSET

#define TMP75_TEMP_OFFSET 0x00

◆ TOP_INLET_ADDR

#define TOP_INLET_ADDR (0x92 >> 1)

◆ UBC1_ADDR

#define UBC1_ADDR (0x2E >> 1)

◆ UBC2_ADDR

#define UBC2_ADDR (0x34 >> 1)

◆ UPDATE_INTERVAL_1S

#define UPDATE_INTERVAL_1S 1

◆ UPDATE_INTERVAL_5S

#define UPDATE_INTERVAL_5S 5

◆ UPDATE_INTERVAL_60S

#define UPDATE_INTERVAL_60S 60

◆ VR_DEFAULT_POLLING_INTERVAL_MS

#define VR_DEFAULT_POLLING_INTERVAL_MS 1000

Typedef Documentation

◆ power_capping_time_setting

typedef struct _power_capping_time_setting power_capping_time_setting

Enumeration Type Documentation

◆ SENSOR_NUM_LIST

enum SENSOR_NUM_LIST

Enumerator
SENSOR_NUM_TOP_INLET_TEMP_C
SENSOR_NUM_BOT_INLET_TEMP_C
SENSOR_NUM_BOT_OUTLET_TEMP_C
SENSOR_NUM_ASIC_NUWA0_SENSOR0_TEMP_C
SENSOR_NUM_ASIC_NUWA0_SENSOR1_TEMP_C
SENSOR_NUM_ASIC_OWL_W_TEMP_C
SENSOR_NUM_ASIC_OWL_E_TEMP_C
SENSOR_NUM_ASIC_NUWA1_SENSOR0_TEMP_C
SENSOR_NUM_ASIC_NUWA1_SENSOR1_TEMP_C
SENSOR_NUM_ASIC_HAMSA_CRM_TEMP_C
SENSOR_NUM_ASIC_HAMSA_LS_TEMP_C
SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_CURR_A
SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_PWR_W
SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_CURR_A
SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_PWR_W
SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_TEMP_C
SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_VOLT_V
SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_CURR_A
SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_PWR_W
SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_CURR_A
SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_PWR_W
SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_CURR_A
SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_PWR_W
SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_TEMP_C
SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_VOLT_V
SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_CURR_A
SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_PWR_W
SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_CURR_A
SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_PWR_W
SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_CURR_A
SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_PWR_W
SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_CURR_A
SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_PWR_W
SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_CURR_A
SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_PWR_W
SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_TEMP_C
SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_VOLT_V
SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_CURR_A
SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_PWR_W
SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_TEMP_C
SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_VOLT_V
SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_CURR_A
SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_PWR_W
SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_TEMP_C
SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_VOLT_V
SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_CURR_A
SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_PWR_W
SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_TEMP_C
SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_VOLT_V
SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_CURR_A
SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_PWR_W
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_TEMP_C
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_VOLT_V
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_CURR_A
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_PWR_W
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_TEMP_C
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_VOLT_V
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_CURR_A
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_PWR_W
SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_TEMP_C
SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_VOLT_V
SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_CURR_A
SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_PWR_W
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_TEMP_C
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_VOLT_V
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_CURR_A
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_PWR_W
SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_TEMP_C
SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_VOLT_V
SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_CURR_A
SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_PWR_W
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_TEMP_C
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_VOLT_V
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_CURR_A
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_PWR_W
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_TEMP_C
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_VOLT_V
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_CURR_A
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_PWR_W
SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_TEMP_C
SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_VOLT_V
SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_CURR_A
SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_PWR_W
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_TEMP_C
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_VOLT_V
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_CURR_A
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_PWR_W
SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_TEMP_C
SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_VOLT_V
SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_CURR_A
SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_PWR_W
SENSOR_NUM_UBC1_P12V_TEMP_C
SENSOR_NUM_UBC1_P12V_VOLT_V
SENSOR_NUM_UBC1_P12V_CURR_A
SENSOR_NUM_UBC1_P12V_PWR_W
SENSOR_NUM_UBC1_P52V_INPUT_VOLT_V
SENSOR_NUM_UBC2_P12V_TEMP_C
SENSOR_NUM_UBC2_P12V_VOLT_V
SENSOR_NUM_UBC2_P12V_CURR_A
SENSOR_NUM_UBC2_P12V_PWR_W
SENSOR_NUM_UBC2_P52V_INPUT_VOLT_V
SENSOR_NUM_P3V3_OSFP_TEMP_C
SENSOR_NUM_P3V3_OSFP_VOLT_V
SENSOR_NUM_P3V3_OSFP_CURR_A
SENSOR_NUM_P3V3_OSFP_PWR_W
SENSOR_NUM_ASIC_P0V75_NUWA0_VDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_NUWA1_VDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_INPUT_VOLT_V
SENSOR_NUM_ASIC_P1V05_VDDC_HBM1357_INPUT_VOLT_V
SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM1357_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V9_VDDQ_HBM0246_INPUT_VOLT_V
SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_INPUT_VOLT_V
SENSOR_NUM_ASIC_P1V05_VDDC_HBM0246_INPUT_VOLT_V
SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_INPUT_VOLT_V
SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_INPUT_VOLT_V
SENSOR_NUM_P3V3_OSFP_INPUT_VOLT_V
SENSOR_NUM_NUMBERS
SENSOR_NUM_THERMAL_SENSOR_1_TEMP_C
SENSOR_NUM_THERMAL_SENSOR_2_TEMP_C
SENSOR_NUM_PCIE_SWITCH_PEX90144_TEMP_C
SENSOR_NUM_VR_ASIC_P0V895_PEX_TEMP_C
SENSOR_NUM_VR_ASIC_P0V895_PEX_VOLT_V
SENSOR_NUM_VR_ASIC_P0V895_PEX_CURR_A
SENSOR_NUM_VR_ASIC_P0V895_PEX_PWR_W
SENSOR_NUM_VR_ASIC_P0V825_A0_TEMP_C
SENSOR_NUM_VR_ASIC_P0V825_A0_VOLT_V
SENSOR_NUM_VR_ASIC_P0V825_A0_CURR_A
SENSOR_NUM_VR_ASIC_P0V825_A0_PWR_W
SENSOR_NUM_VR_ASIC_P0V825_A1_TEMP_C
SENSOR_NUM_VR_ASIC_P0V825_A1_VOLT_V
SENSOR_NUM_VR_ASIC_P0V825_A1_CURR_A
SENSOR_NUM_VR_ASIC_P0V825_A1_PWR_W
SENSOR_NUM_VR_ASIC_P0V825_A2_TEMP_C
SENSOR_NUM_VR_ASIC_P0V825_A2_VOLT_V
SENSOR_NUM_VR_ASIC_P0V825_A2_CURR_A
SENSOR_NUM_VR_ASIC_P0V825_A2_PWR_W
SENSOR_NUM_ADC_P12V_SCALED_VOLT_V
SENSOR_NUM_ADC_P5V_STBY_SCALED_VOLT_V
SENSOR_NUM_ADC_P3V3_AUX_SCALED_VOLT_V
SENSOR_NUM_ADC_P1V5_PEX_SCALED_VOLT_V
SENSOR_NUM_ADC_P1V2_PEX_SCALED_VOLT_V
SENSOR_NUM_ADC_P1V8_PEX_SCALED_VOLT_V

◆ SENSOR_THREAD_LIST

enum SENSOR_THREAD_LIST

Enumerator
UBC_SENSOR_THREAD_ID
VR_SENSOR_P3V3_THREAD_ID
VR_SENSOR_P0V85_PVDD_THREAD_ID
VR_SENSOR_THREAD_ID
TEMP_SENSOR_THREAD_ID
MAX_SENSOR_THREAD_ID
TEMP_SENSOR_THREAD_ID
VR_SENSOR_THREAD_ID
QUICK_VR_SENSOR_THREAD_ID
UBC_SENSOR_THREAD_ID
EVB_SENSOR_THREAD_ID
MAX_SENSOR_THREAD_ID
TEMP_SENSOR_THREAD_ID
VR_SENSOR_THREAD_ID
QUICK_VR_SENSOR_THREAD_ID
UBC_SENSOR_THREAD_ID
EVB_SENSOR_THREAD_ID
MAX_SENSOR_THREAD_ID
TEMP_SENSOR_THREAD_ID
VR_SENSOR_THREAD_ID
ADC_SENSOR_THREAD_ID
MAX_SENSOR_THREAD_ID
TMP_SENSOR_THREAD_ID
ADC_SENSOR_THREAD_ID
INA233_SENSOR_THREAD_ID
VR_SENSOR_THREAD_ID
DIMM_SENSOR_THREAD_ID
MAX_SENSOR_THREAD_ID
ADC_SENSOR_THREAD_ID
VR_SENSOR_THREAD_ID
MB_TEMP_SENSOR_THREAD_ID
CPU_SENSOR_THREAD_ID
INA233_SENSOR_THREAD_ID
DIMM_SENSOR_THREAD_ID
MAX_SENSOR_THREAD_ID
ADC_SENSOR_THREAD_ID
TMP_SENSOR_THREAD_ID
INA233_SENSOR_THREAD_ID
VR_SENSOR_THREAD_ID
DIMM_SENSOR_THREAD_ID
ADC_MONITOR_SENSOR_THREAD_ID
MAX_SENSOR_THREAD_ID

◆ TMP_ADDRESS_VIRSION

enum TMP_ADDRESS_VIRSION

Enumerator
FAB1_1ND_TMP432
FAB1_2ND_EMC1413
MAX_TMP_ADDRESS_VIRSION

◆ VR_ADDRESS_VIRSION

enum VR_ADDRESS_VIRSION

Enumerator
FAB1_1ND_MPS
FAB1_2ND_RNS
MAX_VR_ADDRESS_VIRSION
OLD_MPS
OLD_RNS
NEW_MPS
NEW_RNS
MAX_VR_ADDRESS_VIRSION

Function Documentation

◆ change_sensor_cfg()

void change_sensor_cfg	(	uint8_t	asic_board_id,
		uint8_t	tmp_module,
		uint8_t	vr_module,
		uint8_t	ubc_module,
		uint8_t	board_rev_id
	)

◆ char16_strcat_char()

char16_t * char16_strcat_char	(	char16_t *	dest,
		char16_t	ch
	)

◆ char16_strcpy()

char16_t * char16_strcpy	(	char16_t *	dest,
		const char16_t *	src
	)

◆ char16_strlen()

size_t char16_strlen ( const char16_t * str )

◆ convert_tmp_addr()

uint8_t convert_tmp_addr	(	uint8_t	bus,
		uint8_t	addr,
		uint8_t	tmp_change_mode
	)

◆ convert_vr_addr()

uint8_t convert_vr_addr	(	uint8_t	bus,
		uint8_t	addr,
		uint8_t	vr_change_mode
	)

◆ get_ioe_init_flag()

uint8_t get_ioe_init_flag ( )

◆ get_pdr_numeric_sensor_by_sensor_id()

PDR_numeric_sensor * get_pdr_numeric_sensor_by_sensor_id ( uint8_t sensor_id )

◆ get_plat_sensor_one_step_enable_flag()

uint8_t get_plat_sensor_one_step_enable_flag ( )

◆ get_plat_sensor_polling_enable_flag()

bool get_plat_sensor_polling_enable_flag ( )

◆ get_plat_sensor_temp_polling_enable_flag()

bool get_plat_sensor_temp_polling_enable_flag ( )

◆ get_plat_sensor_ubc_polling_enable_flag()

bool get_plat_sensor_ubc_polling_enable_flag ( )

◆ get_plat_sensor_vr_polling_enable_flag()

bool get_plat_sensor_vr_polling_enable_flag ( )

◆ get_pwr_capping_polling_rate_type()

uint8_t get_pwr_capping_polling_rate_type ( )

◆ get_quick_nuwa_polling_rate()

uint16_t get_quick_nuwa_polling_rate ( )

◆ get_raw_data_from_sensor_id()

bool get_raw_data_from_sensor_id	(	uint8_t	sensor_id,
		uint8_t	offset,
		uint8_t *	val,
		uint8_t	len
	)

◆ get_sensor_cfg_by_sensor_id()

sensor_cfg * get_sensor_cfg_by_sensor_id ( uint8_t sensor_id )

◆ is_dc_access()

bool is_dc_access ( uint8_t sensor_num )

◆ is_temp_access()

bool is_temp_access ( uint8_t cfg_idx )

◆ is_ubc_access()

bool is_ubc_access ( uint8_t sensor_num )

◆ is_vr_access()

bool is_vr_access ( uint8_t sensor_num )

◆ plat_get_pdr_size()

uint32_t plat_get_pdr_size ( uint8_t pdr_type )

◆ plat_pldm_sensor_get_pdr_numeric_sensor()

void plat_pldm_sensor_get_pdr_numeric_sensor	(	int	thread_id,
		int	sensor_num,
		PDR_numeric_sensor *	numeric_sensor_table
	)

◆ plat_pldm_sensor_get_sensor_count()

int plat_pldm_sensor_get_sensor_count ( int thread_id )

◆ plat_pldm_sensor_set_quick_vr_poll_interval()

void plat_pldm_sensor_set_quick_vr_poll_interval	(	uint8_t	type,
		uint8_t	capping_source
	)

◆ quick_sensor_poll_init()

void quick_sensor_poll_init ( )

◆ set_ioe_init_flag()

void set_ioe_init_flag ( uint8_t flag )

◆ set_plat_sensor_one_step_enable_flag()

void set_plat_sensor_one_step_enable_flag ( uint8_t value )

◆ set_plat_sensor_polling_enable_flag()

void set_plat_sensor_polling_enable_flag ( bool value )

◆ set_plat_sensor_temp_polling_enable_flag()

void set_plat_sensor_temp_polling_enable_flag ( bool value )

◆ set_plat_sensor_ubc_polling_enable_flag()

void set_plat_sensor_ubc_polling_enable_flag ( bool value )

◆ set_plat_sensor_vr_polling_enable_flag()

void set_plat_sensor_vr_polling_enable_flag ( bool value )

Classes

Macros

Typedefs

Enumerations

Functions
