plat_isr.c File Reference

#include <logging/log.h>
#include <pmbus.h>
#include "util_worker.h"
#include "hal_gpio.h"
#include "hal_i2c.h"
#include "power_status.h"
#include "plat_gpio.h"
#include "plat_pldm_sensor.h"
#include "plat_power_seq.h"
#include "plat_mctp.h"
#include "plat_isr.h"
#include "plat_class.h"
#include "sensor.h"

Include dependency graph for plat_isr.c:

Functions
	LOG_MODULE_REGISTER (plat_isr)
void	init_vr_event_work ()
void	process_pmbus_vr_event_handler (struct k_work *work_item)
void	process_non_pmbus_vr_event_handler (struct k_work *work_item)
void	set_e1s_pe_reset ()
void	set_asic_and_e1s_clk_handler ()
void	set_cxl_led ()
	K_WORK_DEFINE (cxl_power_on_work, execute_power_on_sequence)
	K_WORK_DEFINE (cxl_power_off_work, execute_power_off_sequence)
	K_WORK_DELAYABLE_DEFINE (set_clk_buf_bypass_work, set_clk_buf_bypass_handler)
void	ISR_MB_DC_STAGUS_CHAGNE ()
	K_WORK_DEFINE (set_e1s_pe_reset_work, set_e1s_pe_reset)
void	ISR_MB_PCIE_RST ()
	K_WORK_DEFINE (e1s_pwr_on_work, set_asic_and_e1s_clk_handler)
void	ISR_P3V3_E1S_PWR_CHANGE ()
void	ISR_P12V_E1S_PWR_CHANGE ()
	K_WORK_DEFINE (_set_cxl_led, set_cxl_led)
void	ISR_PVTT_CD_ASIC1_PWR_CHANGE ()
void	ISR_PVTT_CD_ASIC2_PWR_CHANGE ()
void	ISR_IOE1_INT ()
void	ISR_PVTT_AB_ASIC1_VR_FAULT ()
void	ISR_PVTT_AB_ASIC2_VR_FAULT ()
void	ISR_PVPP_AB_ASIC1_VR_FAULT ()
void	ISR_PVPP_AB_ASIC2_VR_FAULT ()
void	ISR_PVPP_CD_ASIC1_VR_FAULT ()
void	ISR_PVPP_CD_ASIC2_VR_FAULT ()

Variables
add_vr_sel_info	vr_event_work_items []
const vr_fault_info	vr_fault_table []
const uint8_t	vr_reg_list [][8]

Function Documentation

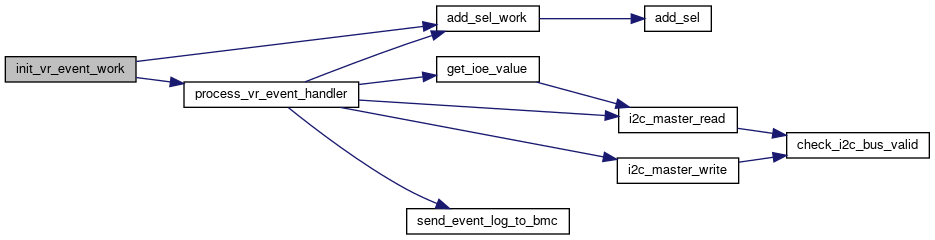

init_vr_event_work()

void init_vr_event_work

(

)

Here is the call graph for this function:

ISR_IOE1_INT()

void ISR_IOE1_INT

(

)

Here is the call graph for this function:

ISR_MB_DC_STAGUS_CHAGNE()

void ISR_MB_DC_STAGUS_CHAGNE

(

)

Here is the call graph for this function:

ISR_MB_PCIE_RST()

void ISR_MB_PCIE_RST

(

)

Here is the call graph for this function:

ISR_P12V_E1S_PWR_CHANGE()

void ISR_P12V_E1S_PWR_CHANGE

(

)

Here is the call graph for this function:

ISR_P3V3_E1S_PWR_CHANGE()

void ISR_P3V3_E1S_PWR_CHANGE

(

)

Here is the call graph for this function:

ISR_PVPP_AB_ASIC1_VR_FAULT()

void ISR_PVPP_AB_ASIC1_VR_FAULT

(

)

Here is the call graph for this function:

ISR_PVPP_AB_ASIC2_VR_FAULT()

void ISR_PVPP_AB_ASIC2_VR_FAULT

(

)

Here is the call graph for this function:

ISR_PVPP_CD_ASIC1_VR_FAULT()

void ISR_PVPP_CD_ASIC1_VR_FAULT

(

)

Here is the call graph for this function:

ISR_PVPP_CD_ASIC2_VR_FAULT()

void ISR_PVPP_CD_ASIC2_VR_FAULT

(

)

Here is the call graph for this function:

ISR_PVTT_AB_ASIC1_VR_FAULT()

void ISR_PVTT_AB_ASIC1_VR_FAULT

(

)

Here is the call graph for this function:

ISR_PVTT_AB_ASIC2_VR_FAULT()

void ISR_PVTT_AB_ASIC2_VR_FAULT

(

)

Here is the call graph for this function:

ISR_PVTT_CD_ASIC1_PWR_CHANGE()

void ISR_PVTT_CD_ASIC1_PWR_CHANGE

(

)

Here is the call graph for this function:

ISR_PVTT_CD_ASIC2_PWR_CHANGE()

void ISR_PVTT_CD_ASIC2_PWR_CHANGE

(

)

Here is the call graph for this function:

K_WORK_DEFINE() [1/5]

K_WORK_DEFINE	(	_set_cxl_led	,
		set_cxl_led
	)

K_WORK_DEFINE() [2/5]

K_WORK_DEFINE	(	cxl_power_off_work	,
		execute_power_off_sequence
	)

K_WORK_DEFINE() [3/5]

K_WORK_DEFINE	(	cxl_power_on_work	,
		execute_power_on_sequence
	)

K_WORK_DEFINE() [4/5]

K_WORK_DEFINE	(	e1s_pwr_on_work	,
		set_asic_and_e1s_clk_handler
	)

K_WORK_DEFINE() [5/5]

K_WORK_DEFINE	(	set_e1s_pe_reset_work	,
		set_e1s_pe_reset
	)

K_WORK_DELAYABLE_DEFINE()

K_WORK_DELAYABLE_DEFINE	(	set_clk_buf_bypass_work	,
		set_clk_buf_bypass_handler
	)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

plat_isr

)

process_non_pmbus_vr_event_handler()

void process_non_pmbus_vr_event_handler

(

struct k_work *

work_item

)

Here is the call graph for this function:

process_pmbus_vr_event_handler()

void process_pmbus_vr_event_handler

(

struct k_work *

work_item

)

Here is the call graph for this function:

set_asic_and_e1s_clk_handler()

void set_asic_and_e1s_clk_handler

(

)

Here is the call graph for this function:

set_cxl_led()

void set_cxl_led

(

)

Here is the call graph for this function:

set_e1s_pe_reset()

void set_e1s_pe_reset

(

)

Here is the call graph for this function:

Variable Documentation

vr_event_work_items

add_vr_sel_info vr_event_work_items[]

vr_fault_table

const vr_fault_info vr_fault_table[]

Initial value:

= {


    { PVDDQ_AB_ASIC1, IOE_P03, PWRGD_PVDDQ_AB_ASIC1, IOE_SWITCH_CXL1_VR_TO_BIC, I2C_BUS8,
      ADDR_VR_PVDDQ_AB_ASIC1, 0 },
    { P0V85_ASIC1, IOE_P03, PWRGD_P0V85_ASIC1, IOE_SWITCH_CXL1_VR_TO_BIC, I2C_BUS8,
      ADDR_VR_P0V85_ASIC1, 1 },
    { PVDDQ_CD_ASIC1, IOE_P03, PWRGD_PVDDQ_CD_ASIC1, IOE_SWITCH_CXL1_VR_TO_BIC, I2C_BUS8,
      ADDR_VR_PVDDQ_CD_ASIC1, 0 },
    { P0V8_ASIC1, IOE_P03, PWRGD_P0V8_ASIC1, IOE_SWITCH_CXL1_VR_TO_BIC, I2C_BUS8,
      ADDR_VR_P0V8_ASIC1, 1 },

    { PVDDQ_AB_ASIC2, IOE_P04, PWRGD_PVDDQ_AB_ASIC2, IOE_SWITCH_CXL2_VR_TO_BIC, I2C_BUS3,
      ADDR_VR_PVDDQ_AB_ASIC2, 0 },
    { P0V85_ASIC2, IOE_P04, PWRGD_P0V85_ASIC2, IOE_SWITCH_CXL2_VR_TO_BIC, I2C_BUS3,
      ADDR_VR_P0V85_ASIC2, 1 },
    { PVDDQ_CD_ASIC2, IOE_P04, PWRGD_PVDDQ_CD_ASIC2, IOE_SWITCH_CXL2_VR_TO_BIC, I2C_BUS3,
      ADDR_VR_PVDDQ_CD_ASIC2, 0 },
    { P0V8_ASIC2, IOE_P04, PWRGD_P0V8_ASIC2, IOE_SWITCH_CXL2_VR_TO_BIC, I2C_BUS3,
      ADDR_VR_P0V8_ASIC2, 1 },
}

vr_reg_list

const uint8_t vr_reg_list[][8]

Initial value:

= {

    { PMBUS_STATUS_WORD, PMBUS_STATUS_BYTE, PMBUS_STATUS_VOUT, PMBUS_STATUS_IOUT,
      PMBUS_STATUS_INPUT, PMBUS_STATUS_TEMPERATURE, PMBUS_STATUS_CML,
      PMBUS_STATUS_MFR_SPECIFIC },

    { PMBUS_STATUS_WORD, PMBUS_STATUS_BYTE, PMBUS_STATUS_VOUT, PMBUS_STATUS_IOUT,
      PMBUS_STATUS_INPUT, PMBUS_STATUS_TEMPERATURE, PMBUS_STATUS_CML, PMBUS_DRMOS_FAULT }
}
