plat_hook.h File Reference

#include "sensor.h"
#include "plat_pldm_sensor.h"

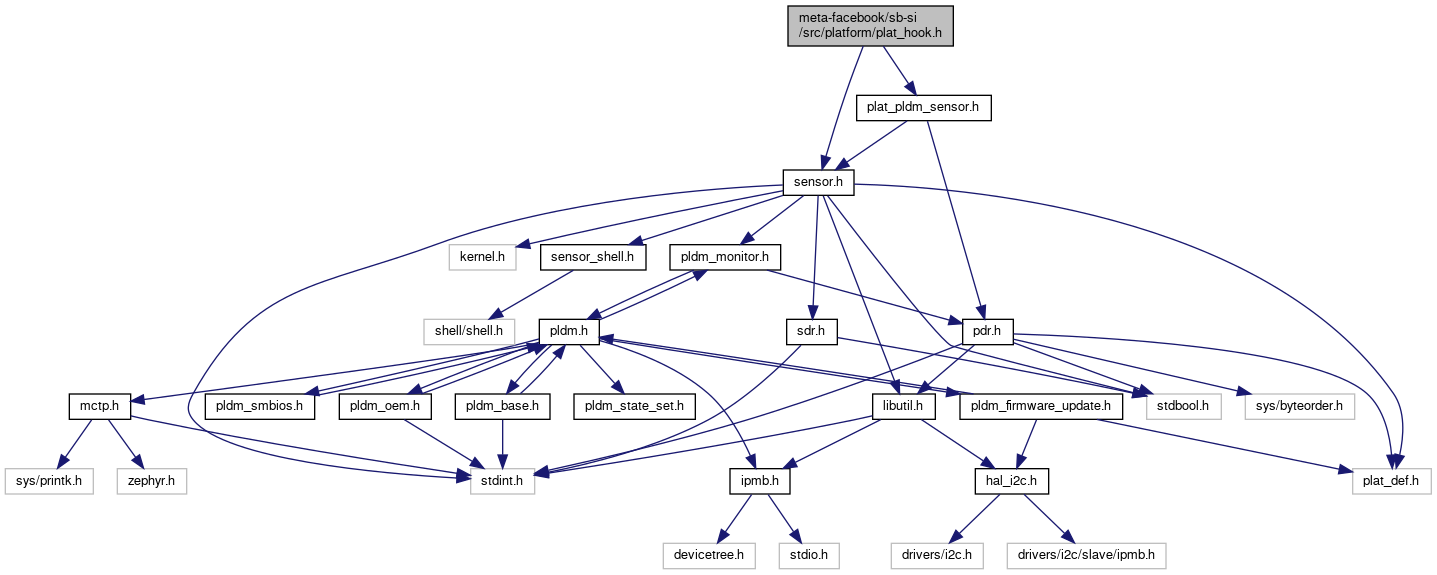

Include dependency graph for plat_hook.h:

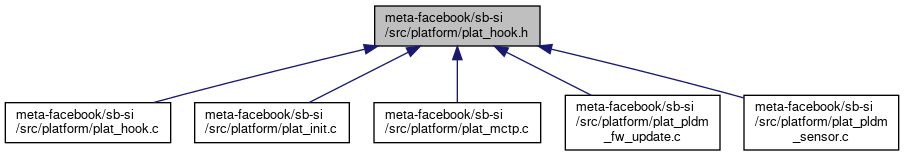

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	vr_mapping_sensor
struct	vr_vout_user_settings
struct	vr_mapping_status
struct	_vr_pre_proc_arg
struct	temp_mapping_sensor
struct	temp_threshold_mapping_sensor

Macros
#define	VR_MAX_NUM   2
#define	VR_MUTEX_LOCK_TIMEOUT_MS   1000

Typedefs
typedef struct vr_mapping_sensor	vr_mapping_sensor
typedef struct vr_vout_user_settings	vr_vout_user_settings
typedef struct vr_mapping_status	vr_mapping_status
typedef struct _vr_pre_proc_arg	vr_pre_proc_arg
typedef struct temp_mapping_sensor	temp_mapping_sensor
typedef struct temp_threshold_mapping_sensor	temp_threshold_mapping_sensor

Enumerations
enum	VR_INDEX_E {   VR_INDEX_E_P3V3 = 0 , VR_INDEX_E_P0V85 , VR_INDEX_E_P0V75_CH_N , VR_INDEX_E_P0V75_CH_S ,   VR_INDEX_E_P0V75_TRVDD_ZONEA , VR_INDEX_E_P0V75_TRVDD_ZONEB , VR_INDEX_E_P1V1_VDDC_HBM0_HBM2_HBM4 , VR_INDEX_E_P0V9_TRVDD_ZONEA ,   VR_INDEX_E_P0V9_TRVDD_ZONEB , VR_INDEX_E_P1V1_VDDC_HBM1_HBM3_HBM5 , VR_INDEX_E_P0V8_VDDA_PCIE , VR_INDEX_MAX ,   VR_INDEX_E_1 = 0 , VR_INDEX_E_2 , VR_INDEX_E_3 , VR_INDEX_E_4 ,   VR_INDEX_E_5 , VR_INDEX_E_6 , VR_INDEX_E_7 , VR_INDEX_E_8 ,   VR_INDEX_E_9 , VR_INDEX_E_10 , VR_INDEX_E_11 , VR_INDEX_E_12 ,   VR_INDEX_MAX , VR_INDEX_E_P0V895 , VR_INDEX_E_P0V825 , VR_INDEX_MAX }
enum	VR_RAIL_E {   VR_RAIL_E_P3V3 = 0 , VR_RAIL_E_P0V85_PVDD , VR_RAIL_E_P0V75_PVDD_CH_N , VR_RAIL_E_P0V75_MAX_PHY_N ,   VR_RAIL_E_P0V75_PVDD_CH_S , VR_RAIL_E_P0V75_MAX_PHY_S , VR_RAIL_E_P0V75_TRVDD_ZONEA , VR_RAIL_E_P1V8_VPP_HBM0_HBM2_HBM4 ,   VR_RAIL_E_P0V75_TRVDD_ZONEB , VR_RAIL_E_P0V4_VDDQL_HBM0_HBM2_HBM4 , VR_RAIL_E_P1V1_VDDC_HBM0_HBM2_HBM4 , VR_RAIL_E_P0V75_VDDPHY_HBM0_HBM2_HBM4 ,   VR_RAIL_E_P0V9_TRVDD_ZONEA , VR_RAIL_E_P1V8_VPP_HBM1_HBM3_HBM5 , VR_RAIL_E_P0V9_TRVDD_ZONEB , VR_RAIL_E_P0V4_VDDQL_HBM1_HBM3_HBM5 ,   VR_RAIL_E_P1V1_VDDC_HBM1_HBM3_HBM5 , VR_RAIL_E_P0V75_VDDPHY_HBM1_HBM3_HBM5 , VR_RAIL_E_P0V8_VDDA_PCIE , VR_RAIL_E_P1V2_VDDHTX_PCIE ,   VR_RAIL_E_MAX , VR_RAIL_E_ASIC_P0V85_MEDHA0_VDD = 0 , VR_RAIL_E_ASIC_P0V85_MEDHA1_VDD , VR_RAIL_E_ASIC_P0V9_OWL_E_TRVDD ,   VR_RAIL_E_ASIC_P0V75_OWL_E_TRVDD , VR_RAIL_E_ASIC_P0V75_MAX_M_VDD , VR_RAIL_E_ASIC_P0V75_VDDPHY_HBM1357 , VR_RAIL_E_ASIC_P0V75_OWL_E_VDD ,   VR_RAIL_E_ASIC_P0V4_VDDQL_HBM1357 , VR_RAIL_E_ASIC_P1V1_VDDQC_HBM1357 , VR_RAIL_E_ASIC_P1V8_VPP_HBM1357 , VR_RAIL_E_ASIC_P0V75_MAX_N_VDD ,   VR_RAIL_E_ASIC_P0V8_HAMSA_AVDD_PCIE , VR_RAIL_E_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE , VR_RAIL_E_ASIC_P0V85_HAMSA_VDD , VR_RAIL_E_ASIC_P1V1_VDDQC_HBM0246 ,   VR_RAIL_E_ASIC_P1V8_VPP_HBM0246 , VR_RAIL_E_ASIC_P0V4_VDDQL_HBM0246 , VR_RAIL_EASIC_P0V75_VDDPHY_HBM0246 , VR_RAIL_E_ASIC_P0V75_OWL_W_VDD ,   VR_RAIL_E_ASIC_P0V75_MAX_S_VDD , VR_RAIL_E_ASIC_P0V9_OWL_W_TRVDD , VR_RAIL_E_ASIC_P0V75_OWL_W_TRVDD , VR_RAIL_E_MAX ,   VR_RAIL_E_P0V895_PEX = 0 , VR_RAIL_E_P0V825_A0 , VR_RAIL_E_P0V825_A1 , VR_RAIL_E_P0V825_A2 ,   VR_RAIL_E_MAX }
enum	VR_STAUS_E {   VR_STAUS_E_STATUS_BYTE = 0 , VR_STAUS_E_STATUS_WORD , VR_STAUS_E_STATUS_VOUT , VR_STAUS_E_STATUS_IOUT ,   VR_STAUS_E_STATUS_INPUT , VR_STAUS_E_STATUS_TEMPERATURE , VR_STAUS_E_STATUS_CML , VR_STAUS_E_MAX ,   VR_STAUS_E_STATUS_BYTE = 0 , VR_STAUS_E_STATUS_WORD , VR_STAUS_E_STATUS_VOUT , VR_STAUS_E_STATUS_IOUT ,   VR_STAUS_E_STATUS_INPUT , VR_STAUS_E_STATUS_TEMPERATURE , VR_STAUS_E_STATUS_CML , VR_STAUS_E_MAX ,   VR_STAUS_E_STATUS_BYTE = 0 , VR_STAUS_E_STATUS_WORD , VR_STAUS_E_STATUS_VOUT , VR_STAUS_E_STATUS_IOUT ,   VR_STAUS_E_STATUS_INPUT , VR_STAUS_E_STATUS_TEMPERATURE , VR_STAUS_E_STATUS_CML , VR_STAUS_E_MAX }
enum	PLAT_TEMP_INDEX_E {   TEMP_INDEX_ON_DIE_ATH_0_N_OWL , TEMP_INDEX_ON_DIE_ATH_1_S_OWL , TEMP_INDEX_TOP_INLET , TEMP_INDEX_TOP_OUTLET ,   TEMP_INDEX_BOT_INLET , TEMP_INDEX_BOT_OUTLET , TEMP_INDEX_MAX , TEMP_INDEX_THERMAL_SENSOR_1_TEMP_C ,   TEMP_INDEX_THERMAL_SENSOR_2_TEMP_C , TEMP_INDEX_MAX }

Functions
bool	temp_sensor_rail_name_get (uint8_t rail, uint8_t **name)
bool	temp_sensor_rail_enum_get (uint8_t *name, uint8_t *num)
bool	pre_vr_read (sensor_cfg *cfg, void *args)
bool	post_vr_read (sensor_cfg *cfg, void *args, int *const reading)
void *	vr_mutex_get (enum VR_INDEX_E vr_index)
void	vr_mutex_init (void)
bool	vr_rail_name_get (uint8_t rail, uint8_t **name)
bool	vr_rail_enum_get (uint8_t *name, uint8_t *num)

Variables
vr_vout_user_settings	user_settings
vr_mapping_sensor	vr_rail_table []
vr_pre_proc_arg	vr_pre_read_args []
temp_threshold_mapping_sensor	temp_threshold_table []

Macro Definition Documentation

VR_MAX_NUM

#define VR_MAX_NUM   2

VR_MUTEX_LOCK_TIMEOUT_MS

#define VR_MUTEX_LOCK_TIMEOUT_MS   1000

Typedef Documentation

temp_mapping_sensor

typedef struct temp_mapping_sensor temp_mapping_sensor

temp_threshold_mapping_sensor

typedef struct temp_threshold_mapping_sensor temp_threshold_mapping_sensor

vr_mapping_sensor

typedef struct vr_mapping_sensor vr_mapping_sensor

vr_mapping_status

typedef struct vr_mapping_status vr_mapping_status

vr_pre_proc_arg

typedef struct _vr_pre_proc_arg vr_pre_proc_arg

vr_vout_user_settings

typedef struct vr_vout_user_settings vr_vout_user_settings

Enumeration Type Documentation

PLAT_TEMP_INDEX_E

enum PLAT_TEMP_INDEX_E

Enumerator
TEMP_INDEX_ON_DIE_ATH_0_N_OWL
TEMP_INDEX_ON_DIE_ATH_1_S_OWL
TEMP_INDEX_TOP_INLET
TEMP_INDEX_TOP_OUTLET
TEMP_INDEX_BOT_INLET
TEMP_INDEX_BOT_OUTLET
TEMP_INDEX_MAX
TEMP_INDEX_THERMAL_SENSOR_1_TEMP_C
TEMP_INDEX_THERMAL_SENSOR_2_TEMP_C
TEMP_INDEX_MAX

VR_INDEX_E

enum VR_INDEX_E

Enumerator
VR_INDEX_E_P3V3
VR_INDEX_E_P0V85
VR_INDEX_E_P0V75_CH_N
VR_INDEX_E_P0V75_CH_S
VR_INDEX_E_P0V75_TRVDD_ZONEA
VR_INDEX_E_P0V75_TRVDD_ZONEB
VR_INDEX_E_P1V1_VDDC_HBM0_HBM2_HBM4
VR_INDEX_E_P0V9_TRVDD_ZONEA
VR_INDEX_E_P0V9_TRVDD_ZONEB
VR_INDEX_E_P1V1_VDDC_HBM1_HBM3_HBM5
VR_INDEX_E_P0V8_VDDA_PCIE
VR_INDEX_MAX
VR_INDEX_E_1
VR_INDEX_E_2
VR_INDEX_E_3
VR_INDEX_E_4
VR_INDEX_E_5
VR_INDEX_E_6
VR_INDEX_E_7
VR_INDEX_E_8
VR_INDEX_E_9
VR_INDEX_E_10
VR_INDEX_E_11
VR_INDEX_E_12
VR_INDEX_MAX
VR_INDEX_E_P0V895
VR_INDEX_E_P0V825
VR_INDEX_MAX

VR_RAIL_E

enum VR_RAIL_E

Enumerator
VR_RAIL_E_P3V3
VR_RAIL_E_P0V85_PVDD
VR_RAIL_E_P0V75_PVDD_CH_N
VR_RAIL_E_P0V75_MAX_PHY_N
VR_RAIL_E_P0V75_PVDD_CH_S
VR_RAIL_E_P0V75_MAX_PHY_S
VR_RAIL_E_P0V75_TRVDD_ZONEA
VR_RAIL_E_P1V8_VPP_HBM0_HBM2_HBM4
VR_RAIL_E_P0V75_TRVDD_ZONEB
VR_RAIL_E_P0V4_VDDQL_HBM0_HBM2_HBM4
VR_RAIL_E_P1V1_VDDC_HBM0_HBM2_HBM4
VR_RAIL_E_P0V75_VDDPHY_HBM0_HBM2_HBM4
VR_RAIL_E_P0V9_TRVDD_ZONEA
VR_RAIL_E_P1V8_VPP_HBM1_HBM3_HBM5
VR_RAIL_E_P0V9_TRVDD_ZONEB
VR_RAIL_E_P0V4_VDDQL_HBM1_HBM3_HBM5
VR_RAIL_E_P1V1_VDDC_HBM1_HBM3_HBM5
VR_RAIL_E_P0V75_VDDPHY_HBM1_HBM3_HBM5
VR_RAIL_E_P0V8_VDDA_PCIE
VR_RAIL_E_P1V2_VDDHTX_PCIE
VR_RAIL_E_MAX
VR_RAIL_E_ASIC_P0V85_MEDHA0_VDD
VR_RAIL_E_ASIC_P0V85_MEDHA1_VDD
VR_RAIL_E_ASIC_P0V9_OWL_E_TRVDD
VR_RAIL_E_ASIC_P0V75_OWL_E_TRVDD
VR_RAIL_E_ASIC_P0V75_MAX_M_VDD
VR_RAIL_E_ASIC_P0V75_VDDPHY_HBM1357
VR_RAIL_E_ASIC_P0V75_OWL_E_VDD
VR_RAIL_E_ASIC_P0V4_VDDQL_HBM1357
VR_RAIL_E_ASIC_P1V1_VDDQC_HBM1357
VR_RAIL_E_ASIC_P1V8_VPP_HBM1357
VR_RAIL_E_ASIC_P0V75_MAX_N_VDD
VR_RAIL_E_ASIC_P0V8_HAMSA_AVDD_PCIE
VR_RAIL_E_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE
VR_RAIL_E_ASIC_P0V85_HAMSA_VDD
VR_RAIL_E_ASIC_P1V1_VDDQC_HBM0246
VR_RAIL_E_ASIC_P1V8_VPP_HBM0246
VR_RAIL_E_ASIC_P0V4_VDDQL_HBM0246
VR_RAIL_EASIC_P0V75_VDDPHY_HBM0246
VR_RAIL_E_ASIC_P0V75_OWL_W_VDD
VR_RAIL_E_ASIC_P0V75_MAX_S_VDD
VR_RAIL_E_ASIC_P0V9_OWL_W_TRVDD
VR_RAIL_E_ASIC_P0V75_OWL_W_TRVDD
VR_RAIL_E_MAX
VR_RAIL_E_P0V895_PEX
VR_RAIL_E_P0V825_A0
VR_RAIL_E_P0V825_A1
VR_RAIL_E_P0V825_A2
VR_RAIL_E_MAX

VR_STAUS_E

enum VR_STAUS_E

Enumerator
VR_STAUS_E_STATUS_BYTE
VR_STAUS_E_STATUS_WORD
VR_STAUS_E_STATUS_VOUT
VR_STAUS_E_STATUS_IOUT
VR_STAUS_E_STATUS_INPUT
VR_STAUS_E_STATUS_TEMPERATURE
VR_STAUS_E_STATUS_CML
VR_STAUS_E_MAX
VR_STAUS_E_STATUS_BYTE
VR_STAUS_E_STATUS_WORD
VR_STAUS_E_STATUS_VOUT
VR_STAUS_E_STATUS_IOUT
VR_STAUS_E_STATUS_INPUT
VR_STAUS_E_STATUS_TEMPERATURE
VR_STAUS_E_STATUS_CML
VR_STAUS_E_MAX
VR_STAUS_E_STATUS_BYTE
VR_STAUS_E_STATUS_WORD
VR_STAUS_E_STATUS_VOUT
VR_STAUS_E_STATUS_IOUT
VR_STAUS_E_STATUS_INPUT
VR_STAUS_E_STATUS_TEMPERATURE
VR_STAUS_E_STATUS_CML
VR_STAUS_E_MAX

Function Documentation

post_vr_read()

bool post_vr_read	(	sensor_cfg *	cfg,
		void *	args,
		int *const	reading
	)

pre_vr_read()

bool pre_vr_read	(	sensor_cfg *	cfg,
		void *	args
	)

temp_sensor_rail_enum_get()

bool temp_sensor_rail_enum_get	(	uint8_t *	name,
		uint8_t *	num
	)

temp_sensor_rail_name_get()

bool temp_sensor_rail_name_get	(	uint8_t	rail,
		uint8_t **	name
	)

vr_mutex_get()

void * vr_mutex_get

(

enum VR_INDEX_E

vr_index

)

vr_mutex_init()

void vr_mutex_init

(

void

)

vr_rail_enum_get()

bool vr_rail_enum_get	(	uint8_t *	name,
		uint8_t *	num
	)

vr_rail_name_get()

bool vr_rail_name_get	(	uint8_t	rail,
		uint8_t **	name
	)

Variable Documentation

temp_threshold_table

temp_threshold_mapping_sensor temp_threshold_table[]

extern

user_settings

vr_vout_user_settings user_settings

extern

vr_pre_read_args

vr_pre_proc_arg vr_pre_read_args[]

extern

vr_rail_table

vr_mapping_sensor vr_rail_table[]

extern
