plat_user_setting.h File Reference

#include "sensor.h"
#include "plat_pldm_sensor.h"
#include "plat_cpld.h"

Include dependency graph for plat_user_setting.h:

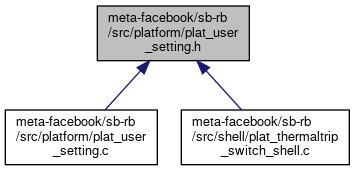

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	clock_compnt_mapping
struct	temp_mapping_sensor
struct	temp_threshold_mapping_sensor
struct	thermaltrip_user_settings_struct
struct	temp_threshold_user_settings_struct

Macros
#define	VR_MUTEX_LOCK_TIMEOUT_MS   1000
#define	TEMP_THRESHOLD_USER_SETTINGS_OFFSET   0x8100
#define	VR_VOUT_USER_SETTINGS_OFFSET   0x8000
#define	ALERT_LEVEL_USER_SETTINGS_OFFSET   0x8200
#define	DELAY_PCIE_PERST_USER_SETTINGS_OFFSET   0x8300
#define	BOOTSTRAP_USER_SETTINGS_OFFSET   0x8400
#define	THERMALTRIP_USER_SETTINGS_OFFSET   0x8500
#define	THROTTLE_USER_SETTINGS_OFFSET   0x8600
#define	DELAY_ASIC_RST_USER_SETTINGS_OFFSET   0x8700
#define	DELAY_MODULE_PG_USER_SETTINGS_OFFSET   0x8800
#define	CPLD_THROTTLE_SWITCH_ADDR   0x25
#define	CPLD_THERMALTRIP_SWITCH_ADDR   0x3A
#define	CLK_BUF_U87_ADDR   (0xD8 >> 1)
#define	CLK_BUF_U88_ADDR   (0xDE >> 1)

Typedefs
typedef struct clock_compnt_mapping	clock_compnt_mapping
typedef struct temp_mapping_sensor	temp_mapping_sensor
typedef struct temp_threshold_mapping_sensor	temp_threshold_mapping_sensor
typedef struct thermaltrip_user_settings_struct	thermaltrip_user_settings_struct
typedef struct temp_threshold_user_settings_struct	temp_threshold_user_settings_struct

Enumerations
enum	USER_SETTING_OFFSET_E { THERMALTRIP }
enum	PLAT_TEMP_INDEX_E {   TEMP_INDEX_ON_DIE_ATH_0_N_OWL , TEMP_INDEX_ON_DIE_ATH_1_S_OWL , TEMP_INDEX_TOP_INLET , TEMP_INDEX_TOP_OUTLET ,   TEMP_INDEX_BOT_INLET , TEMP_INDEX_BOT_OUTLET , TEMP_INDEX_MAX , TEMP_INDEX_TOP_INLET ,   TEMP_INDEX_BOT_INLET , TEMP_INDEX_BOT_OUTLET , TEMP_INDEX_ASIC_MEDHA0_SENSOR0 , TEMP_INDEX_ASIC_MEDHA0_SENSOR1 ,   TEMP_INDEX_ASIC_OWL_W , TEMP_INDEX_ASIC_OWL_E , TEMP_INDEX_ASIC_MEDHA1_SENSOR0 , TEMP_INDEX_ASIC_MEDHA1_SENSOR1 ,   TEMP_INDEX_ASIC_HAMSA_CRM , TEMP_INDEX_ASIC_HAMSA_LS , TEMP_INDEX_MAX , TEMP_INDEX_THERMAL_SENSOR_1_TEMP_C ,   TEMP_INDEX_THERMAL_SENSOR_2_TEMP_C , TEMP_INDEX_MAX }
enum	PLAT_TEMP_INDEX_THRESHOLD_TYPE_E {   DIE_ATH_0_N_OWL_REMOTE_1_HIGH_LIMIT , DIE_ATH_0_N_OWL_REMOTE_1_LOW_LIMIT , DIE_ATH_1_S_OWL_REMOTE_1_HIGH_LIMIT , DIE_ATH_1_S_OWL_REMOTE_1_LOW_LIMIT ,   DIE_ATH_0_N_OWL_REMOTE_2_HIGH_LIMIT , DIE_ATH_0_N_OWL_REMOTE_2_LOW_LIMIT , DIE_ATH_1_S_OWL_REMOTE_2_HIGH_LIMIT , DIE_ATH_1_S_OWL_REMOTE_2_LOW_LIMIT ,   TOP_INLET_LOW_LIMIT , TOP_INLET_HIGH_LIMIT , TOP_OUTLET_LOW_LIMIT , TOP_OUTLET_HIGH_LIMIT ,   BOT_INLET_LOW_LIMIT , BOT_INLET_HIGH_LIMIT , BOT_OUTLET_LOW_LIMIT , BOT_OUTLET_HIGH_LIMIT ,   PLAT_TEMP_INDEX_THRESHOLD_TYPE_MAX , TOP_INLET_LOW_LIMIT , TOP_INLET_HIGH_LIMIT , BOT_INLET_LOW_LIMIT ,   BOT_INLET_HIGH_LIMIT , BOT_OUTLET_LOW_LIMIT , BOT_OUTLET_HIGH_LIMIT , ASIC_MEDHA0_SENSOR0_LOW_LIMIT ,   ASIC_MEDHA0_SENSOR0_HIGH_LIMIT , ASIC_MEDHA0_SENSOR1_LOW_LIMIT , ASIC_MEDHA0_SENSOR1_HIGH_LIMIT , ASIC_OWL_W_LOW_LIMIT ,   ASIC_OWL_W_HIGH_LIMIT , ASIC_OWL_E_LOW_LIMIT , ASIC_OWL_E_HIGH_LIMIT , ASIC_MEDHA1_SENSOR0_LOW_LIMIT ,   ASIC_MEDHA1_SENSOR0_HIGH_LIMIT , ASIC_MEDHA1_SENSOR1_LOW_LIMIT , ASIC_MEDHA1_SENSOR1_HIGH_LIMIT , ASIC_HAMSA_CRM_LOW_LIMIT ,   ASIC_HAMSA_CRM_HIGH_LIMIT , ASIC_HAMSA_LS_LOW_LIMIT , ASIC_HAMSA_LS_HIGH_LIMIT , PLAT_TEMP_INDEX_THRESHOLD_TYPE_MAX }
enum	CLOCK_BUFF_COMPONENT { CLK_BUF_U87 , CLK_BUF_U88 , CLOCK_BUFF_COMPONENT_MAX }

Functions
bool	set_thermaltrip_user_settings (bool thermaltrip_enable, bool is_perm)
bool	get_temp_sensor_rail_name (uint8_t rail, uint8_t **name)
bool	get_temp_sensor_rail_enum (uint8_t *name, uint8_t *num)
bool	plat_get_temp_status (uint8_t rail, uint8_t *temp_status)
bool	get_temp_threshold_type_enum (uint8_t *name, uint8_t *num)
bool	get_temp_index_threshold_type_name (uint8_t type, uint8_t **name)
bool	get_plat_temp_threshold (uint8_t temp_index_threshold_type, int32_t *millidegree_celsius)
bool	set_plat_temp_threshold (uint8_t temp_index_threshold_type, uint32_t *millidegree_celsius, bool is_default, bool is_perm)
bool	plat_clear_temp_status (uint8_t rail)
void	user_settings_init (void)
bool	temp_threshold_user_settings_init (void)
bool	temp_threshold_default_settings_init (void)
void	set_uart_power_event_is_enable (bool is_enable)
int	power_level_send_event (bool is_assert, int ubc1_current, int ubc2_current)
void	set_alert_level_to_default_or_user_setting (bool is_default, int32_t user_setting)
int	set_user_settings_alert_level_to_eeprom (void *user_settings, uint8_t data_length)
int	get_alert_level_info (bool *is_assert, int32_t *default_value, int32_t *setting_value)
int	get_user_settings_alert_level_from_eeprom (void *user_settings, uint8_t data_length)
bool	get_user_settings_delay_pcie_perst_from_eeprom (void *user_settings, uint8_t data_length)
bool	get_user_settings_delay_asic_rst_from_eeprom (void *user_settings, uint8_t data_length)
bool	get_user_settings_delay_module_pg_from_eeprom (void *user_settings, uint8_t data_length)
bool	get_user_settings_thermaltrip_from_eeprom (void *thermaltrip_user_settings, uint8_t data_length)
bool	get_user_settings_throttle_from_eeprom (void *user_settings, uint8_t data_length)
bool	perm_config_clear ()
bool	get_average_power (uint8_t rail, uint32_t *milliwatt)
bool	post_vr_read (sensor_cfg *cfg, void *args, int *const reading)
bool	ubc_vr_rail_name_get (uint8_t rail, uint8_t **name)
bool	ubc_vr_rail_enum_get (uint8_t *name, uint8_t *num)
void	pwr_level_mutex_init (void)
bool	set_user_settings_delay_pcie_perst_to_eeprom (void *user_settings, uint8_t data_length, uint8_t user_settings_offset)
bool	set_user_settings_delay_asic_rst_to_eeprom (void *user_settings, uint8_t data_length)
bool	set_user_settings_delay_module_pg_to_eeprom (void *user_settings, uint8_t data_length)
void	set_clock_u87_u88_lphcsl_amp_ctrl_to_1v ()

Variables
temp_mapping_sensor	temp_index_table [TEMP_INDEX_MAX]
temp_threshold_user_settings_struct	temp_threshold_user_settings

Macro Definition Documentation

ALERT_LEVEL_USER_SETTINGS_OFFSET

#define ALERT_LEVEL_USER_SETTINGS_OFFSET   0x8200

BOOTSTRAP_USER_SETTINGS_OFFSET

#define BOOTSTRAP_USER_SETTINGS_OFFSET   0x8400

CLK_BUF_U87_ADDR

#define CLK_BUF_U87_ADDR   (0xD8 >> 1)

CLK_BUF_U88_ADDR

#define CLK_BUF_U88_ADDR   (0xDE >> 1)

CPLD_THERMALTRIP_SWITCH_ADDR

#define CPLD_THERMALTRIP_SWITCH_ADDR   0x3A

CPLD_THROTTLE_SWITCH_ADDR

#define CPLD_THROTTLE_SWITCH_ADDR   0x25

DELAY_ASIC_RST_USER_SETTINGS_OFFSET

#define DELAY_ASIC_RST_USER_SETTINGS_OFFSET   0x8700

DELAY_MODULE_PG_USER_SETTINGS_OFFSET

#define DELAY_MODULE_PG_USER_SETTINGS_OFFSET   0x8800

DELAY_PCIE_PERST_USER_SETTINGS_OFFSET

#define DELAY_PCIE_PERST_USER_SETTINGS_OFFSET   0x8300

TEMP_THRESHOLD_USER_SETTINGS_OFFSET

#define TEMP_THRESHOLD_USER_SETTINGS_OFFSET   0x8100

THERMALTRIP_USER_SETTINGS_OFFSET

#define THERMALTRIP_USER_SETTINGS_OFFSET   0x8500

THROTTLE_USER_SETTINGS_OFFSET

#define THROTTLE_USER_SETTINGS_OFFSET   0x8600

VR_MUTEX_LOCK_TIMEOUT_MS

#define VR_MUTEX_LOCK_TIMEOUT_MS   1000

VR_VOUT_USER_SETTINGS_OFFSET

#define VR_VOUT_USER_SETTINGS_OFFSET   0x8000

Typedef Documentation

clock_compnt_mapping

typedef struct clock_compnt_mapping clock_compnt_mapping

temp_mapping_sensor

typedef struct temp_mapping_sensor temp_mapping_sensor

temp_threshold_mapping_sensor

typedef struct temp_threshold_mapping_sensor temp_threshold_mapping_sensor

temp_threshold_user_settings_struct

typedef struct temp_threshold_user_settings_struct temp_threshold_user_settings_struct

thermaltrip_user_settings_struct

typedef struct thermaltrip_user_settings_struct thermaltrip_user_settings_struct

Enumeration Type Documentation

CLOCK_BUFF_COMPONENT

enum CLOCK_BUFF_COMPONENT

Enumerator
CLK_BUF_U87
CLK_BUF_U88
CLOCK_BUFF_COMPONENT_MAX

PLAT_TEMP_INDEX_E

enum PLAT_TEMP_INDEX_E

Enumerator
TEMP_INDEX_ON_DIE_ATH_0_N_OWL
TEMP_INDEX_ON_DIE_ATH_1_S_OWL
TEMP_INDEX_TOP_INLET
TEMP_INDEX_TOP_OUTLET
TEMP_INDEX_BOT_INLET
TEMP_INDEX_BOT_OUTLET
TEMP_INDEX_MAX
TEMP_INDEX_TOP_INLET
TEMP_INDEX_BOT_INLET
TEMP_INDEX_BOT_OUTLET
TEMP_INDEX_ASIC_MEDHA0_SENSOR0
TEMP_INDEX_ASIC_MEDHA0_SENSOR1
TEMP_INDEX_ASIC_OWL_W
TEMP_INDEX_ASIC_OWL_E
TEMP_INDEX_ASIC_MEDHA1_SENSOR0
TEMP_INDEX_ASIC_MEDHA1_SENSOR1
TEMP_INDEX_ASIC_HAMSA_CRM
TEMP_INDEX_ASIC_HAMSA_LS
TEMP_INDEX_MAX
TEMP_INDEX_THERMAL_SENSOR_1_TEMP_C
TEMP_INDEX_THERMAL_SENSOR_2_TEMP_C
TEMP_INDEX_MAX

PLAT_TEMP_INDEX_THRESHOLD_TYPE_E

enum PLAT_TEMP_INDEX_THRESHOLD_TYPE_E

Enumerator
DIE_ATH_0_N_OWL_REMOTE_1_HIGH_LIMIT
DIE_ATH_0_N_OWL_REMOTE_1_LOW_LIMIT
DIE_ATH_1_S_OWL_REMOTE_1_HIGH_LIMIT
DIE_ATH_1_S_OWL_REMOTE_1_LOW_LIMIT
DIE_ATH_0_N_OWL_REMOTE_2_HIGH_LIMIT
DIE_ATH_0_N_OWL_REMOTE_2_LOW_LIMIT
DIE_ATH_1_S_OWL_REMOTE_2_HIGH_LIMIT
DIE_ATH_1_S_OWL_REMOTE_2_LOW_LIMIT
TOP_INLET_LOW_LIMIT
TOP_INLET_HIGH_LIMIT
TOP_OUTLET_LOW_LIMIT
TOP_OUTLET_HIGH_LIMIT
BOT_INLET_LOW_LIMIT
BOT_INLET_HIGH_LIMIT
BOT_OUTLET_LOW_LIMIT
BOT_OUTLET_HIGH_LIMIT
PLAT_TEMP_INDEX_THRESHOLD_TYPE_MAX
TOP_INLET_LOW_LIMIT
TOP_INLET_HIGH_LIMIT
BOT_INLET_LOW_LIMIT
BOT_INLET_HIGH_LIMIT
BOT_OUTLET_LOW_LIMIT
BOT_OUTLET_HIGH_LIMIT
ASIC_MEDHA0_SENSOR0_LOW_LIMIT
ASIC_MEDHA0_SENSOR0_HIGH_LIMIT
ASIC_MEDHA0_SENSOR1_LOW_LIMIT
ASIC_MEDHA0_SENSOR1_HIGH_LIMIT
ASIC_OWL_W_LOW_LIMIT
ASIC_OWL_W_HIGH_LIMIT
ASIC_OWL_E_LOW_LIMIT
ASIC_OWL_E_HIGH_LIMIT
ASIC_MEDHA1_SENSOR0_LOW_LIMIT
ASIC_MEDHA1_SENSOR0_HIGH_LIMIT
ASIC_MEDHA1_SENSOR1_LOW_LIMIT
ASIC_MEDHA1_SENSOR1_HIGH_LIMIT
ASIC_HAMSA_CRM_LOW_LIMIT
ASIC_HAMSA_CRM_HIGH_LIMIT
ASIC_HAMSA_LS_LOW_LIMIT
ASIC_HAMSA_LS_HIGH_LIMIT
PLAT_TEMP_INDEX_THRESHOLD_TYPE_MAX

USER_SETTING_OFFSET_E

enum USER_SETTING_OFFSET_E

Enumerator
THERMALTRIP

Function Documentation

get_alert_level_info()

int get_alert_level_info	(	bool *	is_assert,
		int32_t *	default_value,
		int32_t *	setting_value
	)

get_average_power()

bool get_average_power	(	uint8_t	rail,
		uint32_t *	milliwatt
	)

get_plat_temp_threshold()

bool get_plat_temp_threshold	(	uint8_t	temp_index_threshold_type,
		int32_t *	millidegree_celsius
	)

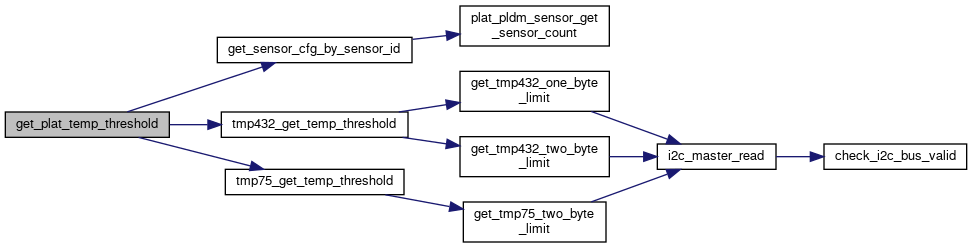

Here is the call graph for this function:

get_temp_index_threshold_type_name()

bool get_temp_index_threshold_type_name	(	uint8_t	type,
		uint8_t **	name
	)

get_temp_sensor_rail_enum()

bool get_temp_sensor_rail_enum	(	uint8_t *	name,
		uint8_t *	num
	)

get_temp_sensor_rail_name()

bool get_temp_sensor_rail_name	(	uint8_t	rail,
		uint8_t **	name
	)

get_temp_threshold_type_enum()

bool get_temp_threshold_type_enum	(	uint8_t *	name,
		uint8_t *	num
	)

get_user_settings_alert_level_from_eeprom()

int get_user_settings_alert_level_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

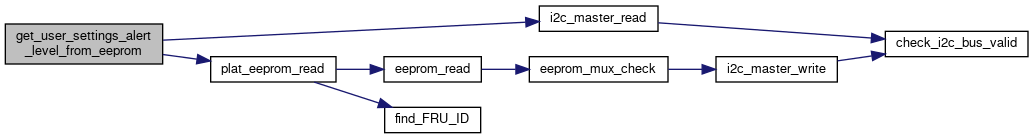

Here is the call graph for this function:

get_user_settings_delay_asic_rst_from_eeprom()

bool get_user_settings_delay_asic_rst_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

get_user_settings_delay_module_pg_from_eeprom()

bool get_user_settings_delay_module_pg_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

get_user_settings_delay_pcie_perst_from_eeprom()

bool get_user_settings_delay_pcie_perst_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

get_user_settings_thermaltrip_from_eeprom()

bool get_user_settings_thermaltrip_from_eeprom	(	void *	thermaltrip_user_settings,
		uint8_t	data_length
	)

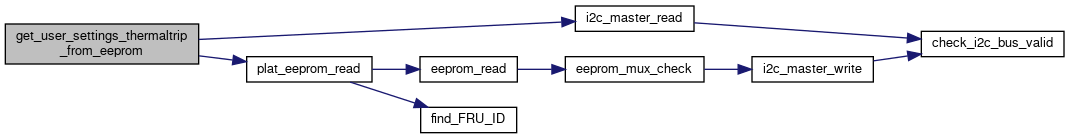

Here is the call graph for this function:

get_user_settings_throttle_from_eeprom()

bool get_user_settings_throttle_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

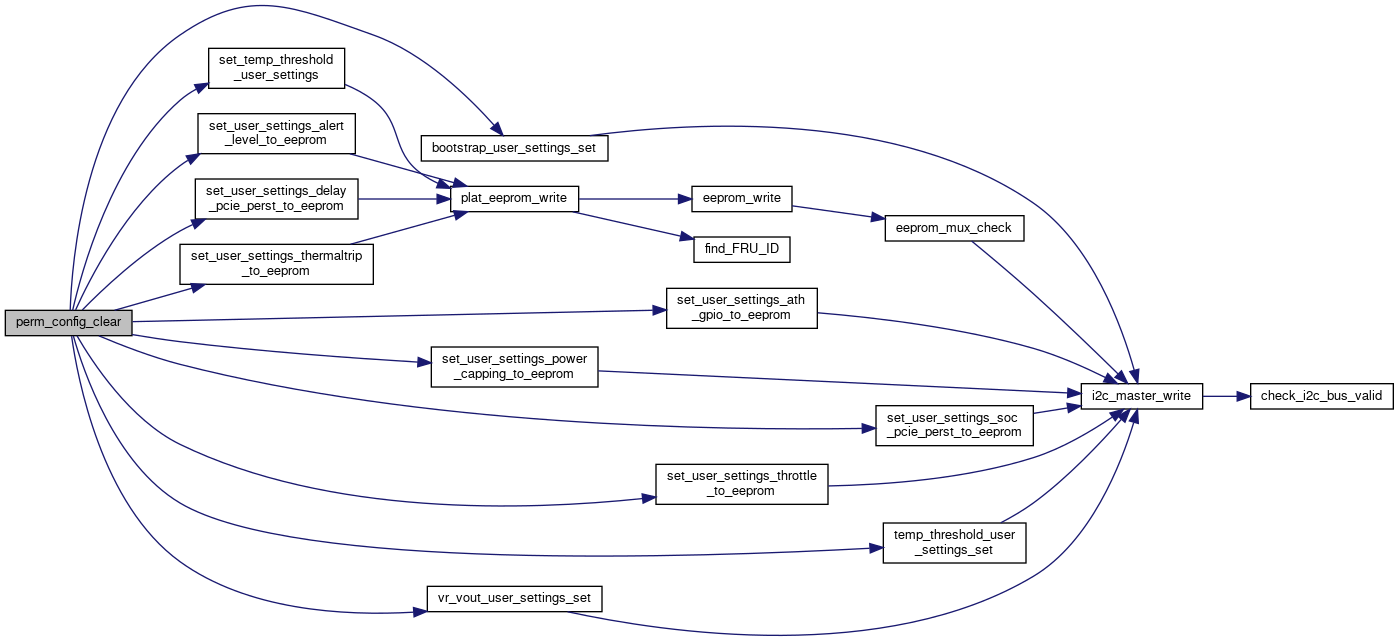

perm_config_clear()

bool perm_config_clear

(

)

Here is the call graph for this function:

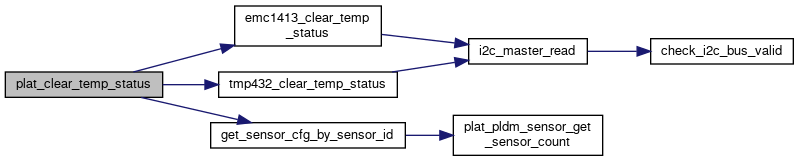

plat_clear_temp_status()

bool plat_clear_temp_status

(

uint8_t

rail

)

Here is the call graph for this function:

plat_get_temp_status()

bool plat_get_temp_status	(	uint8_t	rail,
		uint8_t *	temp_status
	)

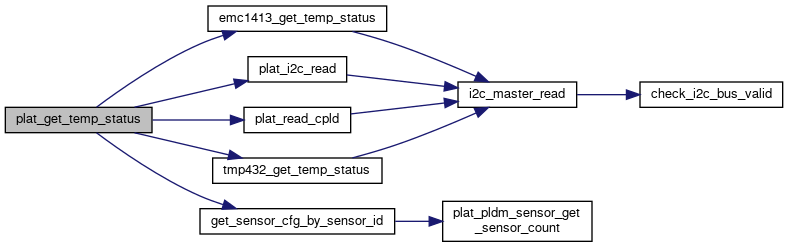

Here is the call graph for this function:

post_vr_read()

bool post_vr_read	(	sensor_cfg *	cfg,
		void *	args,
		int *const	reading
	)

power_level_send_event()

int power_level_send_event	(	bool	is_assert,
		int	ubc1_current,
		int	ubc2_current
	)

pwr_level_mutex_init()

void pwr_level_mutex_init

(

void

)

set_alert_level_to_default_or_user_setting()

void set_alert_level_to_default_or_user_setting	(	bool	is_default,
		int32_t	user_setting
	)

set_clock_u87_u88_lphcsl_amp_ctrl_to_1v()

void set_clock_u87_u88_lphcsl_amp_ctrl_to_1v

(

)

Here is the call graph for this function:

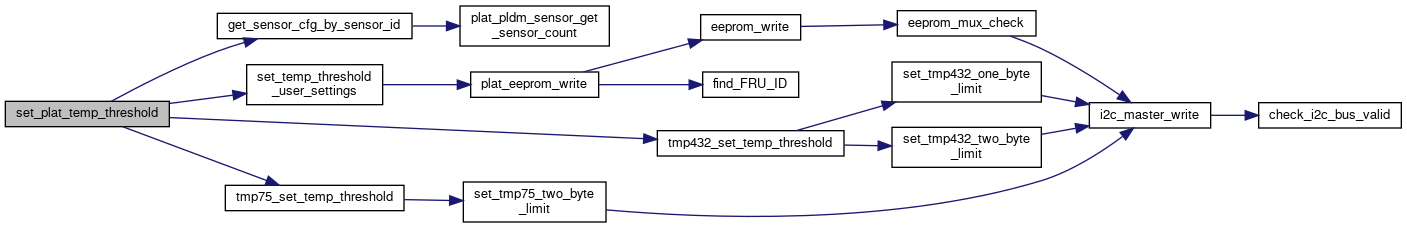

set_plat_temp_threshold()

bool set_plat_temp_threshold	(	uint8_t	temp_index_threshold_type,
		uint32_t *	millidegree_celsius,
		bool	is_default,
		bool	is_perm
	)

Here is the call graph for this function:

set_thermaltrip_user_settings()

bool set_thermaltrip_user_settings	(	bool	thermaltrip_enable,
		bool	is_perm
	)

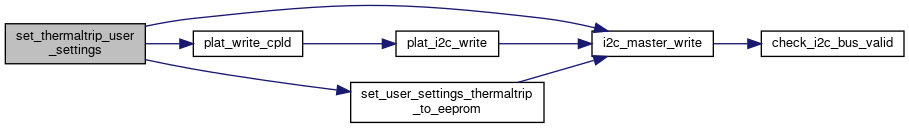

Here is the call graph for this function:

set_uart_power_event_is_enable()

void set_uart_power_event_is_enable

(

bool

is_enable

)

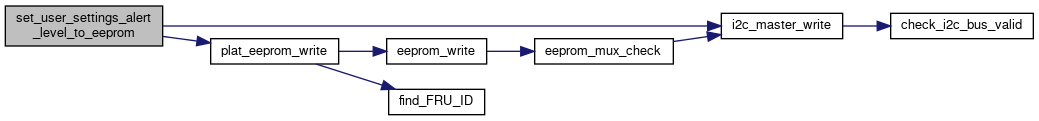

set_user_settings_alert_level_to_eeprom()

int set_user_settings_alert_level_to_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

set_user_settings_delay_asic_rst_to_eeprom()

bool set_user_settings_delay_asic_rst_to_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

set_user_settings_delay_module_pg_to_eeprom()

bool set_user_settings_delay_module_pg_to_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

set_user_settings_delay_pcie_perst_to_eeprom()

bool set_user_settings_delay_pcie_perst_to_eeprom	(	void *	user_settings,
		uint8_t	data_length,
		uint8_t	user_settings_offset
	)

Here is the call graph for this function:

temp_threshold_default_settings_init()

bool temp_threshold_default_settings_init

(

void

)

Here is the call graph for this function:

temp_threshold_user_settings_init()

bool temp_threshold_user_settings_init

(

void

)

Here is the call graph for this function:

ubc_vr_rail_enum_get()

bool ubc_vr_rail_enum_get	(	uint8_t *	name,
		uint8_t *	num
	)

ubc_vr_rail_name_get()

bool ubc_vr_rail_name_get	(	uint8_t	rail,
		uint8_t **	name
	)

user_settings_init()

void user_settings_init

(

void

)

Variable Documentation

temp_index_table

temp_mapping_sensor temp_index_table[TEMP_INDEX_MAX]

extern

temp_threshold_user_settings

temp_threshold_user_settings_struct temp_threshold_user_settings

extern
