plat_hook.c File Reference

#include <stdio.h>
#include <string.h>
#include "libutil.h"
#include "sensor.h"
#include "hal_i2c.h"
#include "plat_i2c.h"
#include "plat_gpio.h"
#include "plat_sensor_table.h"
#include "plat_hook.h"
#include "plat_isr.h"
#include <logging/log.h>
#include "mp2971.h"
#include "isl69259.h"
#include "raa228249.h"
#include "tmp75.h"
#include "tmp431.h"
#include "emc1413.h"
#include "mp29816a.h"
#include "plat_pldm_sensor.h"
#include "plat_class.h"
#include "pmbus.h"

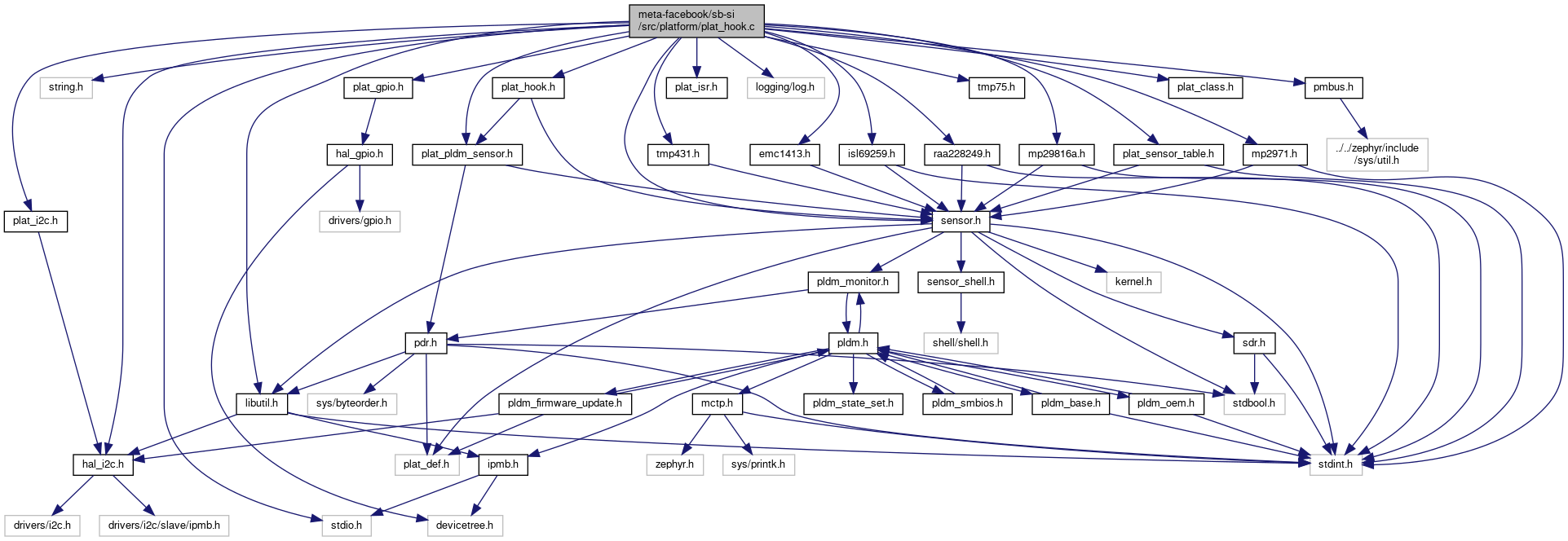

Include dependency graph for plat_hook.c:

Functions
	LOG_MODULE_REGISTER (plat_hook)
void *	vr_mutex_get (enum VR_INDEX_E vr_index)
bool	pre_vr_read (sensor_cfg *cfg, void *args)
bool	post_vr_read (sensor_cfg *cfg, void *args, int *const reading)
void	vr_mutex_init (void)
bool	vr_rail_name_get (uint8_t rail, uint8_t **name)
bool	vr_status_name_get (uint8_t rail, uint8_t **name)
bool	vr_rail_enum_get (uint8_t *name, uint8_t *num)
bool	vr_status_enum_get (uint8_t *name, uint8_t *num)
bool	plat_get_vr_status (uint8_t rail, uint8_t vr_status_rail, uint16_t *vr_status)
bool	plat_clear_vr_status (uint8_t rail)

Variables
pex90144_init_arg	pex_sensor_init_args []
vr_pre_proc_arg	vr_pre_read_args []
vr_mapping_sensor	vr_rail_table []
vr_mapping_status	vr_status_table []

Function Documentation

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

plat_hook

)

plat_clear_vr_status()

bool plat_clear_vr_status

(

uint8_t

rail

)

Here is the call graph for this function:

plat_get_vr_status()

bool plat_get_vr_status	(	uint8_t	rail,
		uint8_t	vr_status_rail,
		uint16_t *	vr_status
	)

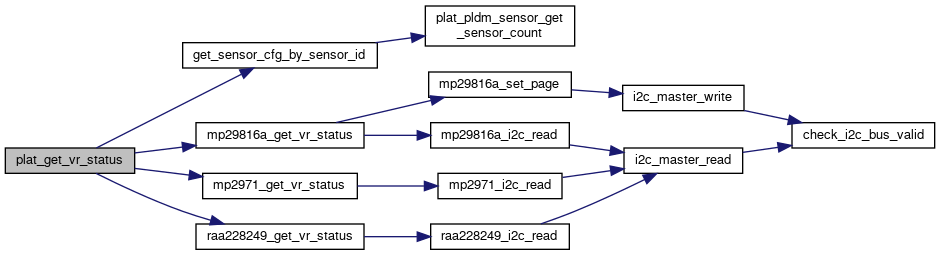

Here is the call graph for this function:

post_vr_read()

bool post_vr_read	(	sensor_cfg *	cfg,
		void *	args,
		int *const	reading
	)

pre_vr_read()

bool pre_vr_read	(	sensor_cfg *	cfg,
		void *	args
	)

Here is the call graph for this function:

vr_mutex_get()

void * vr_mutex_get

(

enum VR_INDEX_E

vr_index

)

vr_mutex_init()

void vr_mutex_init

(

void

)

vr_rail_enum_get()

bool vr_rail_enum_get	(	uint8_t *	name,
		uint8_t *	num
	)

vr_rail_name_get()

bool vr_rail_name_get	(	uint8_t	rail,
		uint8_t **	name
	)

vr_status_enum_get()

bool vr_status_enum_get	(	uint8_t *	name,
		uint8_t *	num
	)

vr_status_name_get()

bool vr_status_name_get	(	uint8_t	rail,
		uint8_t **	name
	)

Variable Documentation

pex_sensor_init_args

pex90144_init_arg pex_sensor_init_args[]

Initial value:

= {
    [0] = { .idx = 0, .is_init = false },
}

vr_pre_read_args

vr_pre_proc_arg vr_pre_read_args[]

Initial value:

= { { .mutex = vr_mutex + 0, .vr_page = 0x0 },
                       { .mutex = vr_mutex + 0, .vr_page = 0x1 },
                       { .mutex = vr_mutex + 1, .vr_page = 0x0 },
                       { .mutex = vr_mutex + 1, .vr_page = 0x1 } }

vr_rail_table

vr_mapping_sensor vr_rail_table[]

Initial value:

= {
    { VR_RAIL_E_P0V895_PEX, SENSOR_NUM_VR_ASIC_P0V895_PEX_VOLT_V, "RB_P0V895_PEX", 0xffffffff },
    { VR_RAIL_E_P0V825_A0, SENSOR_NUM_VR_ASIC_P0V825_A0_VOLT_V, "RB_P0V825_A0", 0xffffffff },
    { VR_RAIL_E_P0V825_A1, SENSOR_NUM_VR_ASIC_P0V825_A1_VOLT_V, "RB_P0V825_A1", 0xffffffff },
    { VR_RAIL_E_P0V825_A2, SENSOR_NUM_VR_ASIC_P0V825_A2_VOLT_V, "RB_P0V825_A2", 0xffffffff },
}

vr_status_table

vr_mapping_status vr_status_table[]

Initial value:

= {
    { VR_STAUS_E_STATUS_BYTE, PMBUS_STATUS_BYTE, "STATUS_BYTE" },
    { VR_STAUS_E_STATUS_WORD, PMBUS_STATUS_WORD, "STATUS_WORD" },
    { VR_STAUS_E_STATUS_VOUT, PMBUS_STATUS_VOUT, "STATUS_VOUT" },
    { VR_STAUS_E_STATUS_IOUT, PMBUS_STATUS_IOUT, "STATUS_IOUT" },
    { VR_STAUS_E_STATUS_INPUT, PMBUS_STATUS_INPUT, "STATUS_INPUT" },
    { VR_STAUS_E_STATUS_TEMPERATURE, PMBUS_STATUS_TEMPERATURE, "STATUS_TEMPERATURE" },
    { VR_STAUS_E_STATUS_CML, PMBUS_STATUS_CML, "STATUS_CML_PMBUS" },
}
