plat_pldm_sensor.c File Reference

#include <logging/log.h>
#include "pmbus.h"
#include "sensor.h"
#include "tmp431.h"
#include "pldm_sensor.h"
#include "plat_hook.h"
#include "plat_i2c.h"
#include "plat_util.h"
#include "plat_class.h"
#include "shell_plat_average_power.h"

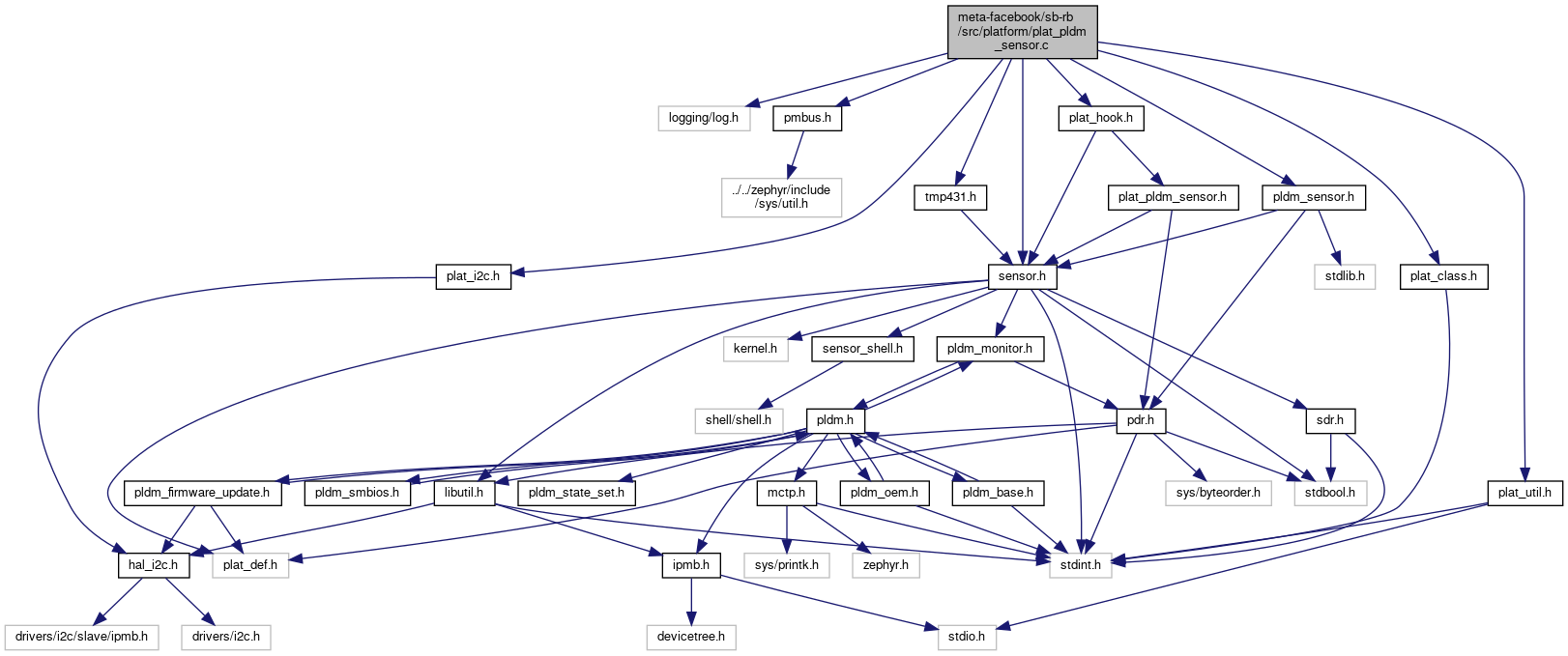

Include dependency graph for plat_pldm_sensor.c:

Classes
struct	addr_map_t

Macros
#define	SENSOR_CFG_NO_CHANGE   0xFF

Functions
	LOG_MODULE_REGISTER (plat_pldm_sensor)
uint8_t	convert_vr_addr (uint8_t addr, uint8_t vr_change_mode)
uint8_t	check_sensor_type (uint8_t sensor_num)
uint32_t	plat_get_pdr_size (uint8_t pdr_type)
pldm_sensor_thread *	plat_pldm_sensor_load_thread ()
pldm_sensor_info *	plat_pldm_sensor_load (int thread_id)
int	plat_pldm_sensor_get_sensor_count (int thread_id)
void	plat_pldm_sensor_get_pdr_numeric_sensor (int thread_id, int sensor_num, PDR_numeric_sensor *numeric_sensor_table)
void	plat_load_numeric_sensor_pdr_table (PDR_numeric_sensor *numeric_sensor_table)
void	plat_load_aux_sensor_names_pdr_table (PDR_sensor_auxiliary_names *aux_sensor_name_table)
size_t	char16_strlen (const char16_t *str)
char16_t *	char16_strcpy (char16_t *dest, const char16_t *src)
char16_t *	char16_strcat_char (char16_t *dest, char16_t ch)
void	plat_init_entity_aux_names_pdr_table ()
void	plat_load_entity_aux_names_pdr_table (PDR_entity_auxiliary_names *entity_aux_name_table)
uint16_t	plat_get_pdr_entity_aux_names_size ()
sensor_cfg *	get_sensor_cfg_by_sensor_id (uint8_t sensor_id)
bool	get_raw_data_from_sensor_id (uint8_t sensor_id, uint8_t offset, uint8_t *val, uint8_t len)
void	change_sensor_cfg (uint8_t asic_board_id, uint8_t vr_module, uint8_t ubc_module, uint8_t board_rev_id)
bool	is_dc_access (uint8_t sensor_num)
void	set_plat_sensor_polling_enable_flag (bool value)
void	set_plat_sensor_ubc_polling_enable_flag (bool value)
void	set_plat_sensor_temp_polling_enable_flag (bool value)
void	set_plat_sensor_vr_polling_enable_flag (bool value)
bool	get_plat_sensor_polling_enable_flag ()
bool	get_plat_sensor_ubc_polling_enable_flag ()
bool	get_plat_sensor_temp_polling_enable_flag ()
bool	get_plat_sensor_vr_polling_enable_flag ()
bool	is_ubc_access (uint8_t sensor_num)
bool	is_temp_access (uint8_t cfg_idx)
bool	is_vr_access (uint8_t sensor_num)
void	set_ioe_value (uint8_t ioe_addr, uint8_t ioe_reg, uint8_t value)
int	get_ioe_value (uint8_t ioe_addr, uint8_t ioe_reg, uint8_t *value)
uint8_t	get_ioe_init_flag ()
void	set_ioe_init_flag (uint8_t flag)
	K_KERNEL_STACK_MEMBER (quick_sensor_poll_stack, 1024)
void	init_U200051_IO ()
void	quick_sensor_poll_handler (void *arug0, void *arug1, void *arug2)
void	quick_sensor_poll_init ()

Variables
vr_pre_proc_arg	vr_pre_read_args []
mpc12109_init_arg	mpc12109_init_args []
uint8_t	ioe_init_flag = 0
pldm_sensor_info	plat_pldm_sensor_temp_table []
pldm_sensor_info	plat_pldm_sensor_vr_table []
pldm_sensor_info	plat_pldm_sensor_quick_vr_table []
pldm_sensor_info	plat_pldm_sensor_ubc_table []
pldm_sensor_info	plat_pldm_sensor_evb_table []
PDR_sensor_auxiliary_names	plat_pdr_sensor_aux_names_table []
PDR_sensor_auxiliary_names	plat_evb_pdr_sensor_aux_names_table []
PDR_entity_auxiliary_names	plat_pdr_entity_aux_names_table []
uint16_t	plat_pdr_entity_aux_names_table_size = 0
struct k_thread	quick_sensor_poll
k_tid_t	quick_sensor_tid

Macro Definition Documentation

SENSOR_CFG_NO_CHANGE

#define SENSOR_CFG_NO_CHANGE   0xFF

Function Documentation

change_sensor_cfg()

void change_sensor_cfg	(	uint8_t	asic_board_id,
		uint8_t	vr_module,
		uint8_t	ubc_module,
		uint8_t	board_rev_id
	)

char16_strcat_char()

char16_t * char16_strcat_char	(	char16_t *	dest,
		char16_t	ch
	)

Here is the call graph for this function:

char16_strcpy()

char16_t * char16_strcpy	(	char16_t *	dest,
		const char16_t *	src
	)

char16_strlen()

size_t char16_strlen

(

const char16_t *

str

)

check_sensor_type()

uint8_t check_sensor_type

(

uint8_t

sensor_num

)

convert_vr_addr()

uint8_t convert_vr_addr	(	uint8_t	addr,
		uint8_t	vr_change_mode
	)

get_ioe_init_flag()

uint8_t get_ioe_init_flag

(

)

get_ioe_value()

int get_ioe_value	(	uint8_t	ioe_addr,
		uint8_t	ioe_reg,
		uint8_t *	value
	)

Here is the call graph for this function:

get_plat_sensor_polling_enable_flag()

bool get_plat_sensor_polling_enable_flag

(

)

get_plat_sensor_temp_polling_enable_flag()

bool get_plat_sensor_temp_polling_enable_flag

(

)

get_plat_sensor_ubc_polling_enable_flag()

bool get_plat_sensor_ubc_polling_enable_flag

(

)

get_plat_sensor_vr_polling_enable_flag()

bool get_plat_sensor_vr_polling_enable_flag

(

)

get_raw_data_from_sensor_id()

bool get_raw_data_from_sensor_id	(	uint8_t	sensor_id,
		uint8_t	offset,
		uint8_t *	val,
		uint8_t	len
	)

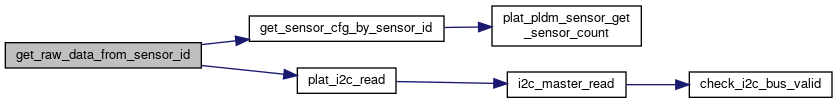

Here is the call graph for this function:

get_sensor_cfg_by_sensor_id()

sensor_cfg * get_sensor_cfg_by_sensor_id

(

uint8_t

sensor_id

)

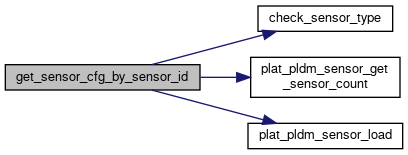

Here is the call graph for this function:

init_U200051_IO()

void init_U200051_IO

(

)

Here is the call graph for this function:

is_dc_access()

bool is_dc_access

(

uint8_t

sensor_num

)

Here is the call graph for this function:

is_temp_access()

bool is_temp_access

(

uint8_t

cfg_idx

)

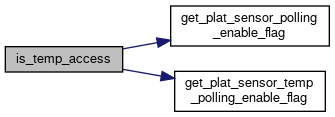

Here is the call graph for this function:

is_ubc_access()

bool is_ubc_access

(

uint8_t

sensor_num

)

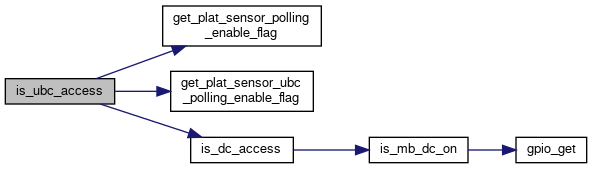

Here is the call graph for this function:

is_vr_access()

bool is_vr_access

(

uint8_t

sensor_num

)

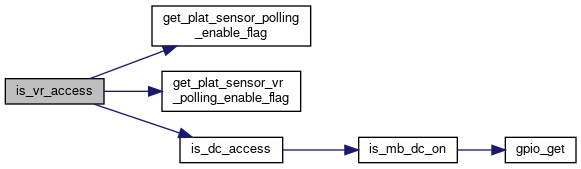

Here is the call graph for this function:

K_KERNEL_STACK_MEMBER()

K_KERNEL_STACK_MEMBER	(	quick_sensor_poll_stack	,
		1024
	)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

plat_pldm_sensor

)

plat_get_pdr_entity_aux_names_size()

uint16_t plat_get_pdr_entity_aux_names_size

(

)

plat_get_pdr_size()

uint32_t plat_get_pdr_size

(

uint8_t

pdr_type

)

Here is the call graph for this function:

plat_init_entity_aux_names_pdr_table()

void plat_init_entity_aux_names_pdr_table

(

)

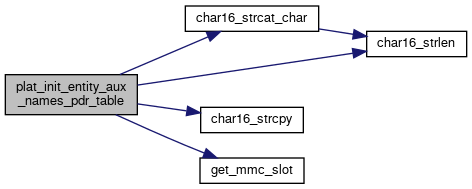

Here is the call graph for this function:

plat_load_aux_sensor_names_pdr_table()

void plat_load_aux_sensor_names_pdr_table

(

PDR_sensor_auxiliary_names *

aux_sensor_name_table

)

Here is the call graph for this function:

plat_load_entity_aux_names_pdr_table()

void plat_load_entity_aux_names_pdr_table

(

PDR_entity_auxiliary_names *

entity_aux_name_table

)

plat_load_numeric_sensor_pdr_table()

void plat_load_numeric_sensor_pdr_table

(

PDR_numeric_sensor *

numeric_sensor_table

)

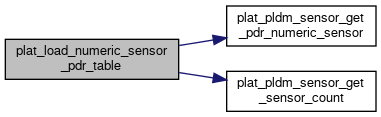

Here is the call graph for this function:

plat_pldm_sensor_get_pdr_numeric_sensor()

void plat_pldm_sensor_get_pdr_numeric_sensor	(	int	thread_id,
		int	sensor_num,
		PDR_numeric_sensor *	numeric_sensor_table
	)

Here is the call graph for this function:

plat_pldm_sensor_get_sensor_count()

int plat_pldm_sensor_get_sensor_count

(

int

thread_id

)

Here is the call graph for this function:

plat_pldm_sensor_load()

pldm_sensor_info * plat_pldm_sensor_load

(

int

thread_id

)

plat_pldm_sensor_load_thread()

pldm_sensor_thread * plat_pldm_sensor_load_thread

(

)

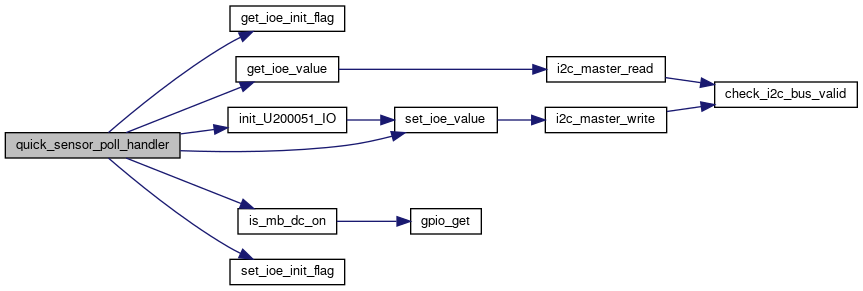

quick_sensor_poll_handler()

void quick_sensor_poll_handler	(	void *	arug0,
		void *	arug1,
		void *	arug2
	)

Here is the call graph for this function:

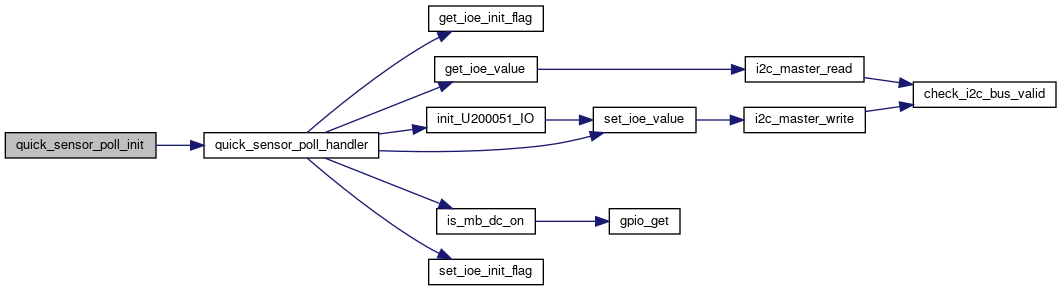

quick_sensor_poll_init()

void quick_sensor_poll_init

(

)

Here is the call graph for this function:

set_ioe_init_flag()

void set_ioe_init_flag

(

uint8_t

flag

)

set_ioe_value()

void set_ioe_value	(	uint8_t	ioe_addr,
		uint8_t	ioe_reg,
		uint8_t	value
	)

Here is the call graph for this function:

set_plat_sensor_polling_enable_flag()

void set_plat_sensor_polling_enable_flag

(

bool

value

)

set_plat_sensor_temp_polling_enable_flag()

void set_plat_sensor_temp_polling_enable_flag

(

bool

value

)

set_plat_sensor_ubc_polling_enable_flag()

void set_plat_sensor_ubc_polling_enable_flag

(

bool

value

)

set_plat_sensor_vr_polling_enable_flag()

void set_plat_sensor_vr_polling_enable_flag

(

bool

value

)

Variable Documentation

ioe_init_flag

uint8_t ioe_init_flag = 0

mpc12109_init_args

mpc12109_init_arg mpc12109_init_args[]

extern

plat_evb_pdr_sensor_aux_names_table

PDR_sensor_auxiliary_names plat_evb_pdr_sensor_aux_names_table[]

plat_pdr_entity_aux_names_table

PDR_entity_auxiliary_names plat_pdr_entity_aux_names_table[]

Initial value:

= { {
    {
        .record_handle = 0x00000000,
        .PDR_header_version = 0x01,
        .PDR_type = PLDM_ENTITY_AUXILIARY_NAMES_PDR,
        .record_change_number = 0x0000,
        .data_length = 0x0000,
    },
    .entity_type = 0x0000,
    .entity_instance_number = 0x0001,
    .container_id = 0x0000,
    .shared_name_count = 0x0,
    .nameStringCount = 0x1,
    .nameLanguageTag = "en",
} }

plat_pdr_entity_aux_names_table_size

uint16_t plat_pdr_entity_aux_names_table_size = 0

plat_pdr_sensor_aux_names_table

PDR_sensor_auxiliary_names plat_pdr_sensor_aux_names_table[]

plat_pldm_sensor_evb_table

pldm_sensor_info plat_pldm_sensor_evb_table[]

plat_pldm_sensor_quick_vr_table

pldm_sensor_info plat_pldm_sensor_quick_vr_table[]

plat_pldm_sensor_temp_table

pldm_sensor_info plat_pldm_sensor_temp_table[]

plat_pldm_sensor_ubc_table

pldm_sensor_info plat_pldm_sensor_ubc_table[]

plat_pldm_sensor_vr_table

pldm_sensor_info plat_pldm_sensor_vr_table[]

quick_sensor_poll

struct k_thread quick_sensor_poll

quick_sensor_tid

k_tid_t quick_sensor_tid

vr_pre_read_args

vr_pre_proc_arg vr_pre_read_args[]

extern
