plat_log.c File Reference

#include <kernel.h>
#include <stdlib.h>
#include <logging/log.h>
#include <libutil.h>
#include "plat_sensor_table.h"
#include "fru.h"
#include "plat_fru.h"
#include "plat_i2c.h"
#include "plat_log.h"
#include "plat_cpld.h"
#include "plat_hook.h"
#include "plat_class.h"
#include "plat_pldm_sensor.h"

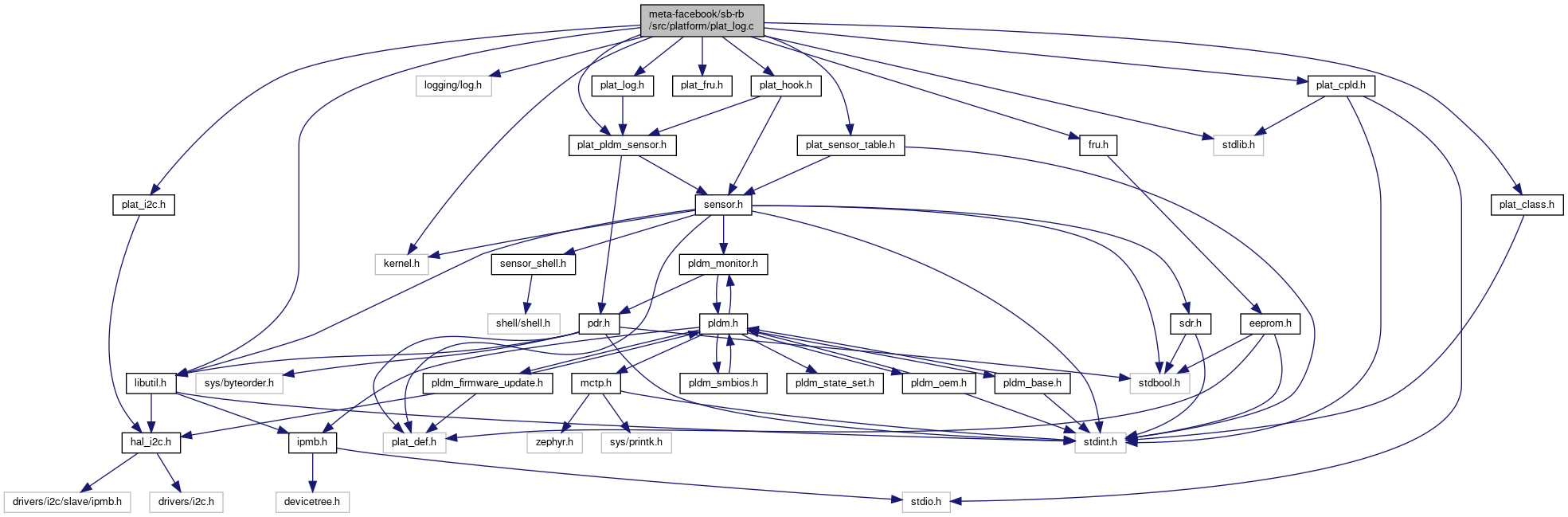

Include dependency graph for plat_log.c:

Classes
struct	_vr_ubc_device_table_
struct	_vr_error_callback_info_

Macros
#define	LOG_MAX_INDEX   0x0FFF
#define	LOG_MAX_NUM   100
#define	FRU_LOG_START   0x0000
#define	EEPROM_MAX_WRITE_TIME   5
#define	CPLD_VR_VENDOR_TYPE_REG   0x1C
#define	ERROR_CODE_TYPE_SHIFT   13

Typedefs
typedef struct _vr_ubc_device_table_	vr_ubc_device_table
typedef struct _vr_error_callback_info_	vr_error_callback_info

Functions
	LOG_MODULE_REGISTER (plat_log)
void	plat_log_read (uint8_t *log_data, uint8_t cmd_size, uint16_t order)
void	plat_clear_log ()
bool	vr_fault_get_error_data (uint8_t sensor_id, uint8_t *data)
bool	get_error_data (uint16_t error_code, uint8_t *data)
void	error_log_event (uint16_t error_code, bool log_status)
void	reset_error_log_event (uint8_t err_type)
uint8_t	plat_log_get_num (void)
void	find_last_log_position ()
void	init_load_eeprom_log (void)

Variables
vr_ubc_device_table	vr_device_table []
vr_error_callback_info	vr_error_callback_info_table []

Macro Definition Documentation

CPLD_VR_VENDOR_TYPE_REG

#define CPLD_VR_VENDOR_TYPE_REG   0x1C

EEPROM_MAX_WRITE_TIME

#define EEPROM_MAX_WRITE_TIME   5

ERROR_CODE_TYPE_SHIFT

#define ERROR_CODE_TYPE_SHIFT   13

FRU_LOG_START

#define FRU_LOG_START   0x0000

LOG_MAX_INDEX

#define LOG_MAX_INDEX   0x0FFF

LOG_MAX_NUM

#define LOG_MAX_NUM   100

Typedef Documentation

vr_error_callback_info

typedef struct _vr_error_callback_info_ vr_error_callback_info

vr_ubc_device_table

typedef struct _vr_ubc_device_table_ vr_ubc_device_table

Function Documentation

error_log_event()

void error_log_event	(	uint16_t	error_code,
		bool	log_status
	)

find_last_log_position()

void find_last_log_position

(

)

Here is the call graph for this function:

get_error_data()

bool get_error_data	(	uint16_t	error_code,
		uint8_t *	data
	)

Here is the call graph for this function:

init_load_eeprom_log()

void init_load_eeprom_log

(

void

)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

plat_log

)

plat_clear_log()

void plat_clear_log

(

)

plat_log_get_num()

uint8_t plat_log_get_num

(

void

)

plat_log_read()

void plat_log_read	(	uint8_t *	log_data,
		uint8_t	cmd_size,
		uint16_t	order
	)

reset_error_log_event()

void reset_error_log_event

(

uint8_t

err_type

)

vr_fault_get_error_data()

bool vr_fault_get_error_data	(	uint8_t	sensor_id,
		uint8_t *	data
	)

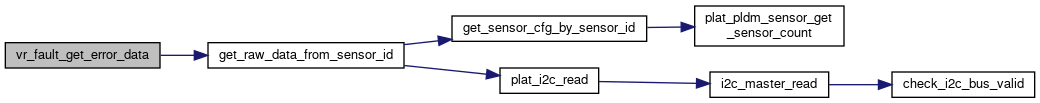

Here is the call graph for this function:

Variable Documentation

vr_device_table

vr_ubc_device_table vr_device_table[]

Initial value:

= {

    { VR_INDEX_E_1, SENSOR_NUM_ASIC_P0V85_MEDHA1_VDD_TEMP_C },
    { VR_INDEX_E_2, SENSOR_NUM_ASIC_P0V85_MEDHA0_VDD_TEMP_C },
    { VR_INDEX_E_3, SENSOR_NUM_ASIC_P0V9_OWL_E_TRVDD_TEMP_C,
      SENSOR_NUM_ASIC_P0V75_OWL_E_TRVDD_TEMP_C },
    { VR_INDEX_E_4, SENSOR_NUM_ASIC_P0V75_MAX_M_VDD_TEMP_C,
      SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM1357_TEMP_C },
    { VR_INDEX_E_5, SENSOR_NUM_ASIC_P0V75_OWL_E_VDD_TEMP_C,
      SENSOR_NUM_ASIC_P0V4_VDDQL_HBM1357_TEMP_C },
    { VR_INDEX_E_6, SENSOR_NUM_ASIC_P1V1_VDDQC_HBM1357_TEMP_C,
      SENSOR_NUM_ASIC_P1V8_VPP_HBM1357_TEMP_C },
    { VR_INDEX_E_7, SENSOR_NUM_ASIC_P0V75_MAX_N_VDD_TEMP_C,
      SENSOR_NUM_ASIC_P0V8_HAMSA_AVDD_PCIE_TEMP_C },
    { VR_INDEX_E_8, SENSOR_NUM_ASIC_P1V2_HAMSA_VDDHRXTX_PCIE_TEMP_C,
      SENSOR_NUM_ASIC_P0V85_HAMSA_VDD_TEMP_C },
    { VR_INDEX_E_9, SENSOR_NUM_ASIC_P1V1_VDDQC_HBM0246_TEMP_C,
      SENSOR_NUM_ASIC_P1V8_VPP_HBM0246_TEMP_C },
    { VR_INDEX_E_10, SENSOR_NUM_ASIC_P0V4_VDDQL_HBM0246_TEMP_C,
      SENSOR_NUM_ASIC_P0V75_VDDPHY_HBM0246_TEMP_C },
    { VR_INDEX_E_11, SENSOR_NUM_ASIC_P0V75_OWL_W_VDD_TEMP_C,
      SENSOR_NUM_ASIC_P0V75_MAX_S_VDD_TEMP_C },
    { VR_INDEX_E_12, SENSOR_NUM_ASIC_P0V9_OWL_W_TRVDD_TEMP_C,
      SENSOR_NUM_ASIC_P0V75_OWL_W_TRVDD_TEMP_C },
}

vr_error_callback_info_table

vr_error_callback_info vr_error_callback_info_table[]

Initial value:

= {

    { VR_POWER_FAULT_1_REG,
      0xFC,
      { VR_INDEX_E_3, VR_INDEX_E_12, VR_INDEX_E_3, VR_INDEX_E_12, VR_INDEX_E_7, VR_INDEX_E_8,
        0x00, 0x00 } },
    { VR_POWER_FAULT_2_REG,
      0xFF,
      { VR_INDEX_E_1, VR_INDEX_E_2, VR_INDEX_E_5, VR_INDEX_E_11, VR_INDEX_E_8, VR_INDEX_E_11,
        VR_INDEX_E_4, VR_INDEX_E_7 } },
    { VR_POWER_FAULT_3_REG,
      0xFF,
      { VR_INDEX_E_10, VR_INDEX_E_9, VR_INDEX_E_9, VR_INDEX_E_10, VR_INDEX_E_5, VR_INDEX_E_6,
        VR_INDEX_E_6, VR_INDEX_E_4 } },
    { VR_POWER_FAULT_4_REG,
      0,
      { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 } },
    { VR_POWER_FAULT_5_REG,
      0,
      { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 } },
}
