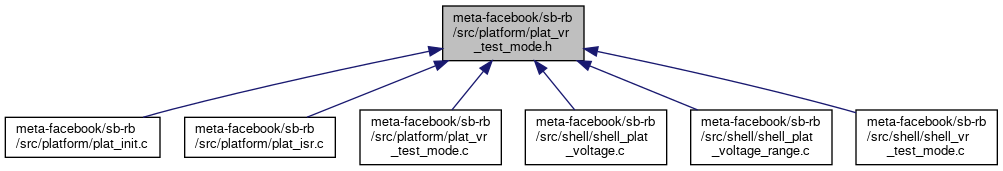

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | vr_test_mode_setting_t |
| struct | mps_vr_test_mode_setting_t |
Macros | |
| #define | VR_FAST_OCP_REG 0x46 |
| #define | VR_SLOW_OCP_REG 0xEA |
| #define | VR_UVP_REG 0x44 |
| #define | VR_OVP_REG 0x40 |
| #define | VR_VOUT_MAX_REG 0x24 |
| #define | VR_VOUT_REG 0x21 |
| #define | VR_LOOPCFG_REG 0xF0 |
| #define | VR_UVP_0_DMA_ADDR 0xEA3D |
| #define | VR_UVP_1_DMA_ADDR 0xEABD |
| #define | VR_OVP_0_DMA_ADDR 0xEA3E |
| #define | VR_OVP_1_DMA_ADDR 0xEABE |
| #define | NO_USE 0xFF |
| #define | NO_ACTION 0 |
| #define | LATCH_OFF 1 |
| #define | ENABLE 1 |
| #define | DISABLE 0 |
Functions | |
| bool | get_vr_test_mode_flag (void) |
| void | vr_test_mode_enable (bool onoff) |
| void | init_vr_test_mode_polling (void) |
| bool | dma_write_vr (uint8_t rail, uint16_t reg, uint8_t *data, uint8_t len) |
| bool | dma_read_vr (uint8_t rail, uint16_t reg, uint8_t *data, uint8_t len) |
| bool | get_vr_offset_uvp_ovp (uint8_t rail, uint16_t *uvp, uint16_t *ovp) |
| bool | use_offset_uvp_ovp (uint8_t rail) |
| bool | get_vr_fixed_uvp_ovp_enable (uint8_t rail) |
| bool | set_vr_fixed_uvp_ovp_enable (uint8_t rail, uint8_t enable) |
Variables | |
| const vr_test_mode_setting_t | vr_test_mode_table [] |
| const vr_test_mode_setting_t | vr_test_mode_table_default [] |
| const uint8_t | vr_test_mode_table_size |
| const uint8_t | vr_test_mode_table_dafault_size |
| const mps_vr_test_mode_setting_t | vr_mps_test_mode_table [] |
| const mps_vr_test_mode_setting_t | vr_mps_normal_mode_table [] |
| const uint8_t | vr_mps_test_mode_table_size |
| const uint8_t | vr_mps_normal_mode_table_size |
Macro Definition Documentation
◆ DISABLE
| #define DISABLE 0 |
◆ ENABLE
| #define ENABLE 1 |
◆ LATCH_OFF
| #define LATCH_OFF 1 |
◆ NO_ACTION
| #define NO_ACTION 0 |
◆ NO_USE
| #define NO_USE 0xFF |
◆ VR_FAST_OCP_REG
| #define VR_FAST_OCP_REG 0x46 |
◆ VR_LOOPCFG_REG
| #define VR_LOOPCFG_REG 0xF0 |
◆ VR_OVP_0_DMA_ADDR
| #define VR_OVP_0_DMA_ADDR 0xEA3E |
◆ VR_OVP_1_DMA_ADDR
| #define VR_OVP_1_DMA_ADDR 0xEABE |
◆ VR_OVP_REG
| #define VR_OVP_REG 0x40 |
◆ VR_SLOW_OCP_REG
| #define VR_SLOW_OCP_REG 0xEA |
◆ VR_UVP_0_DMA_ADDR
| #define VR_UVP_0_DMA_ADDR 0xEA3D |
◆ VR_UVP_1_DMA_ADDR
| #define VR_UVP_1_DMA_ADDR 0xEABD |
◆ VR_UVP_REG
| #define VR_UVP_REG 0x44 |
◆ VR_VOUT_MAX_REG
| #define VR_VOUT_MAX_REG 0x24 |
◆ VR_VOUT_REG
| #define VR_VOUT_REG 0x21 |
Function Documentation
◆ dma_read_vr()
| bool dma_read_vr | ( | uint8_t | rail, |
| uint16_t | reg, | ||
| uint8_t * | data, | ||
| uint8_t | len | ||
| ) |
◆ dma_write_vr()
| bool dma_write_vr | ( | uint8_t | rail, |
| uint16_t | reg, | ||
| uint8_t * | data, | ||
| uint8_t | len | ||
| ) |
◆ get_vr_fixed_uvp_ovp_enable()
| bool get_vr_fixed_uvp_ovp_enable | ( | uint8_t | rail | ) |

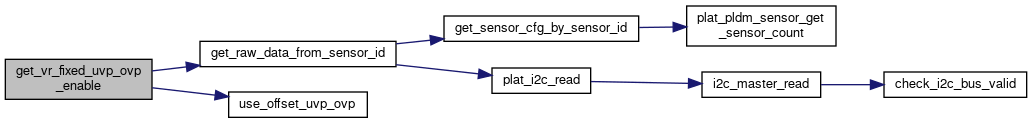

Here is the call graph for this function:
◆ get_vr_offset_uvp_ovp()
| bool get_vr_offset_uvp_ovp | ( | uint8_t | rail, |
| uint16_t * | uvp, | ||
| uint16_t * | ovp | ||
| ) |

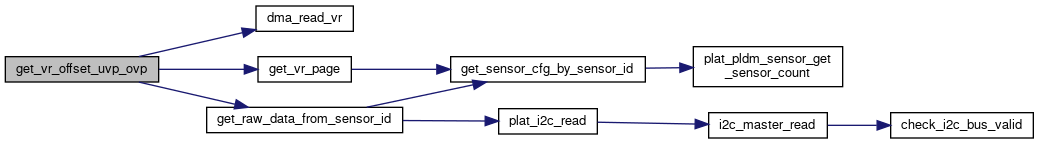

Here is the call graph for this function:
◆ get_vr_test_mode_flag()
| bool get_vr_test_mode_flag | ( | void | ) |
◆ init_vr_test_mode_polling()
| void init_vr_test_mode_polling | ( | void | ) |
Here is the call graph for this function:
◆ set_vr_fixed_uvp_ovp_enable()
| bool set_vr_fixed_uvp_ovp_enable | ( | uint8_t | rail, |
| uint8_t | enable | ||
| ) |
Here is the call graph for this function:
◆ use_offset_uvp_ovp()
| bool use_offset_uvp_ovp | ( | uint8_t | rail | ) |
◆ vr_test_mode_enable()
| void vr_test_mode_enable | ( | bool | onoff | ) |
Here is the call graph for this function:
Variable Documentation
◆ vr_mps_normal_mode_table
|
extern |
◆ vr_mps_normal_mode_table_size
|
extern |
◆ vr_mps_test_mode_table
|
extern |
◆ vr_mps_test_mode_table_size
|
extern |
◆ vr_test_mode_table
|
extern |
◆ vr_test_mode_table_dafault_size
|
extern |
◆ vr_test_mode_table_default
|
extern |
◆ vr_test_mode_table_size
|
extern |
