plat_event.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_aegis_cpld_info_
struct	cpld_bit_name_table_t

Macros
#define	POLLING_CPLD_STACK_SIZE   2048
#define	P12V_UBC_PWRGD_ON_REG   0x48
#define	PWRGD_P5V_R_ON_REG   0x49
#define	PWRGD_P3V3_OSC_ON_REG   0x4A
#define	PWRGD_P3V3_ON_REG   0x4B
#define	PWRGD_LDO_IN_1V2_R_ON_REG   0x4C
#define	PWRGD_P0V85_PVDD_ON_REG   0x4D
#define	PWRGD_P0V75_PVDD_CH_N_ON_REG   0x4E
#define	PWRGD_P0V75_MAX_PHY_N_ON_REG   0x4F
#define	PWRGD_P0V75_PVDD_CH_S_ON_REG   0x50
#define	PWRGD_P0V75_MAX_PHY_S_ON_REG   0x51
#define	PWRGD_P0V75_VDDPHY_HBM0_HBM2_HBM4_R_ON_REG   0x52
#define	PWRGD_P0V75_VDDPHY_HBM1_HBM3_HBM5_R_ON_REG   0x53
#define	PWRGD_P0V75_TRVDD_ZONEA_R_ON_REG   0x54
#define	PWRGD_P0V75_TRVDD_ZONEB_R_ON_REG   0x55
#define	PWRGD_P0V75_AVDD_HSCL_R_ON_REG   0x56
#define	PWRGD_P0V75_VDDC_CLKOBS_R_ON_REG   0x57
#define	PWRGD_LDO_IN_1V8_R_ON_REG   0x58
#define	PWRGD_PLL_VDDA15_MAX_CORE_N_ON_REG   0x59
#define	PWRGD_PLL_VDDA15_MAX_CORE_S_ON_REG   0x5A
#define	PWRGD_PLL_VDDA15_PCIE_MAX_CORE_ON_REG   0x5B
#define	PWRGD_PLL_VDDA15_HBM0_HBM2_HBM4_ON_REG   0x5C
#define	PWRGD_PLL_VDDA15_HBM1_HBM3_HBM5_ON_REG   0x5D
#define	PWRGD_VPP_HBM0_HBM2_HBM4_R_ON_REG   0x5E
#define	PWRGD_VPP_HBM1_HBM3_HBM5_R_ON_REG   0x5F
#define	PWRGD_P1V1_VDDC_HBM0_HBM2_HBM4_R_ON_REG   0x60
#define	PWRGD_P1V1_VDDC_HBM1_HBM3_HBM5_R_ON_REG   0x61
#define	PWRGD_VDDQL_HBM0_HBM2_HBM4_R_ON_REG   0x62
#define	PWRGD_VDDQL_HBM1_HBM3_HBM5_R_ON_REG   0x63
#define	FM_AEGIS_CLK_48MHZ_EN_ON_REG   0x64
#define	FM_AEGIS_CLK_100MHZ_EN_N_ON_REG   0x65
#define	FM_AEGIS_CLK_312MHZ_EN_ON_REG   0x66
#define	PWRGD_VDDA_PCIE_R_ON_REG   0x67
#define	PWRGD_P0V9_TRVDD_ZONEA_R_ON_REG   0x68
#define	PWRGD_P0V9_TRVDD_ZONEB_R_ON_REG   0x69
#define	PWRGD_PVDD0P9_N_ON_REG   0x6A
#define	PWRGD_PVDD0P9_S_ON_REG   0x6B
#define	PWRGD_PVDD1P5_N_ON_REG   0x6C
#define	PWRGD_PVDD1P5_S_ON_REG   0x6D
#define	PWRGD_VDDHTX_PCIE_R_ON_REG   0x6E
#define	RST_ATH_PWR_ON_PLD_N_ON_REG   0x6F
#define	PWRGD_VDDHTX_PCIE_R_OFF_REG   0x70
#define	PWRGD_PVDD1P5_N_OFF_REG   0x71
#define	PWRGD_PVDD1P5_S_OFF_REG   0x72
#define	FM_AEGIS_CLK_48MHZ_EN_OFF_REG   0x73
#define	FM_AEGIS_CLK_100MHZ_EN_N_OFF_REG   0x74
#define	FM_AEGIS_CLK_312MHZ_EN_OFF_REG   0x75
#define	PWRGD_VDDA_PCIE_R_OFF_REG   0x76
#define	PWRGD_P0V9_TRVDD_ZONEA_R_OFF_REG   0x77
#define	PWRGD_P0V9_TRVDD_ZONEB_R_OFF_REG   0x78
#define	PWRGD_PVDD0P9_N_OFF_REG   0x79
#define	PWRGD_PVDD0P9_S_OFF_REG   0x7A
#define	PWRGD_VDDQL_HBM0_HBM2_HBM4_R_OFF_REG   0x7B
#define	PWRGD_VDDQL_HBM1_HBM3_HBM5_R_OFF_REG   0x7C
#define	PWRGD_P1V1_VDDC_HBM0_HBM2_HBM4_R_OFF_REG   0x7D
#define	PWRGD_P1V1_VDDC_HBM1_HBM3_HBM5_R_OFF_REG   0x7E
#define	PWRGD_VPP_HBM0_HBM2_HBM4_R_OFF_REG   0x7F
#define	PWRGD_VPP_HBM1_HBM3_HBM5_R_OFF_REG   0x80
#define	PWRGD_PLL_VDDA15_MAX_CORE_N_OFF_REG   0x81
#define	PWRGD_PLL_VDDA15_MAX_CORE_S_OFF_REG   0x82
#define	PWRGD_PLL_VDDA15_PCIE_MAX_CORE_OFF_REG   0x83
#define	PWRGD_PLL_VDDA15_HBM0_HBM2_HBM4_OFF_REG   0x84
#define	PWRGD_PLL_VDDA15_HBM1_HBM3_HBM5_OFF_REG   0x85
#define	PWRGD_LDO_IN_1V8_R_OFF_REG   0x86
#define	PWRGD_P0V75_TRVDD_ZONEA_R_OFF_REG   0x87
#define	PWRGD_P0V75_TRVDD_ZONEB_R_OFF_REG   0x88
#define	PWRGD_P0V75_AVDD_HSCL_R_OFF_REG   0x89
#define	PWRGD_P0V75_VDDC_CLKOBS_R_OFF_REG   0x8A
#define	PWRGD_P0V85_PVDD_OFF_REG   0x8B
#define	PWRGD_P0V75_PVDD_CH_N_OFF_REG   0x8C
#define	PWRGD_P0V75_MAX_PHY_N_OFF_REG   0x8D
#define	PWRGD_P0V75_PVDD_CH_S_OFF_REG   0x8E
#define	PWRGD_P0V75_MAX_PHY_S_OFF_REG   0x8F
#define	PWRGD_P0V75_VDDPHY_HBM0_HBM2_HBM4_R_OFF_REG   0x90
#define	PWRGD_P0V75_VDDPHY_HBM1_HBM3_HBM5_R_OFF_REG   0x91
#define	PWRGD_LDO_IN_1V2_R_OFF_REG   0x92
#define	PWRGD_P3V3_OFF_REG   0x93
#define	PWRGD_P3V3_OSC_OFF_REG   0x94
#define	PWRGD_P5V_R_OFF_REG   0x95
#define	P12V_UBC_PWRGD_OFF_REG   0x96
#define	POWER_AND_RESET_BUTTON_REG   0x00
#define	VR_AND_CLK_ENABLE_PIN_READING_REG   0x01
#define	VR_ENABLE_PIN_READING_1_REG   0x02
#define	VR_ENABLE_PIN_READING_2_REG   0x03
#define	VR_ENABLE_PIN_READING_3_REG   0x04
#define	VR_ENABLE_PIN_READING_4_REG   0x05
#define	MB_POWER_GOOD_AND_PERST_PIN_READING_REG   0x06
#define	VR_POWER_GOOD_PIN_READING_1_REG   0x07
#define	VR_POWER_GOOD_PIN_READING_2_REG   0x08
#define	VR_POWER_GOOD_PIN_READING_3_REG   0x09
#define	VR_POWER_GOOD_PIN_READING_4_REG   0x0A
#define	VR_POWER_GOOD_PIN_READING_5_REG   0x0B
#define	RSVD_1_REG   0x0C
#define	VR_POWER_FAULT_1_REG   0x0D
#define	VR_POWER_FAULT_2_REG   0x0E
#define	VR_POWER_FAULT_3_REG   0x0F
#define	VR_POWER_FAULT_4_REG   0x10
#define	VR_POWER_FAULT_5_REG   0x11
#define	RSVD_2_REG   0x12
#define	RSVD_3_REG   0x13
#define	OSFP_PRSNT_PIN_READING_1_REG   0x14
#define	OSFP_PRSNT_PIN_READING_2_REG   0x15
#define	OSFP_POWER_ENABLE_PIN_READING_1_REG   0x16
#define	OSFP_POWER_ENABLE_PIN_READING_2_REG   0x17
#define	OSFP_POWER_ENABLE_PIN_READING_3_REG   0x18
#define	OSFP_POWER_ENABLE_PIN_READING_4_REG   0x19
#define	BOARD_TYPE_REG   0x1A
#define	BOARD_REV_ID_REG   0x1B
#define	VR_VENDOR_TYPE_REG   0x1C
#define	OWL_JTAG_SEL_MUX_REG   0x1D
#define	ATH_JTAG_SEL_MUX_REG   0x1E
#define	OWL_UART_SEL_MUX_REG   0x1F
#define	AEGIS_JTAG_SWITCH_REG   0x20
#define	ATH_BOOT_SOURCE_REG   0x21
#define	S_OWL_BOOT_SOURCE_REG   0x22
#define	N_OWL_BOOT_SOURCE_REG   0x23
#define	VR_SMBUS_ALERT_1_REG   0x24
#define	VR_SMBUS_ALERT_2_REG   0x25
#define	RSVD_4_REG   0x26
#define	ASIC_OC_WARN_REG   0x27
#define	SYSTEM_ALERT_FAULT_REG   0x28
#define	VR_HOT_FAULT_1_REG   0x29
#define	VR_HOT_FAULT_2_REG   0x2A
#define	TEMPERATURE_IC_OVERT_FAULT_REG   0x2B
#define	VR_POWER_INPUT_FAULT_1_REG   0x2C
#define	VR_POWER_INPUT_FAULT_2_REG   0x2D
#define	LEAK_DETCTION_REG   0x2E
#define	RESET_PIN_TO_ICS_STATUS_REG   0x2F
#define	CRD_STATUS_REG   0x30
#define	CMN_STATUS_REG   0x31
#define	RSVD_GPIO_STATUS_REG   0x32
#define	UART_IC_STATUS_REG   0x33
#define	UBC_MODULE_OC_WARNING_REG   0x34
#define	CPLD_EEPROM_STATUS_REG   0x35
#define	MTIA_N_OWL_TEST_PIN_STATUS_REG   0x36
#define	MTIA_S_OWL_TEST_PIN_STATUS_REG   0x37
#define	MTIA_ATH_TEST_PIN_STATUS_REG   0x38
#define	MTIA_VQPS_TO_EFUSE_PROGRAMMING_REG   0x39
#define	BUFFER_100M_CLK_LOSE_OF_INPUT_SIGNAL_REG   0x3A
#define	MTIA_QSPI_BOOT_DISABLE_REG   0x3B
#define	ATH_RSVD_GPIO_REG   0x3C
#define	TEMPERATURE_IC_OVERT_FAULT_2_REG   0x97
#define	ASIC_OC_WARN_2_REG   0x98
#define	SYSTEM_ALERT_FAULT_2_REG   0x99
#define	VR_SMBUS_ALERT_3_REG   0x9A
#define	VR_SMBUS_ALERT_4_REG   0x9B

Typedefs
typedef struct _aegis_cpld_info_	aegis_cpld_info

Functions
void	check_ubc_delayed_timer_handler (struct k_timer *timer)
void	check_ubc_delayed (struct k_work *work)
void	check_cpld_polling_alert_status ()
void	set_cpld_polling_enable_flag (bool status)
bool	get_cpld_polling_enable_flag (void)
void	init_cpld_polling (void)
bool	is_ubc_enabled_delayed_enabled (void)
const char *	get_cpld_reg_name (uint8_t cpld_offset)
const char *	get_cpld_bit_name (uint8_t cpld_offset, uint8_t bit_pos)

Macro Definition Documentation

AEGIS_JTAG_SWITCH_REG

#define AEGIS_JTAG_SWITCH_REG   0x20

ASIC_OC_WARN_2_REG

#define ASIC_OC_WARN_2_REG   0x98

ASIC_OC_WARN_REG

#define ASIC_OC_WARN_REG   0x27

ATH_BOOT_SOURCE_REG

#define ATH_BOOT_SOURCE_REG   0x21

ATH_JTAG_SEL_MUX_REG

#define ATH_JTAG_SEL_MUX_REG   0x1E

ATH_RSVD_GPIO_REG

#define ATH_RSVD_GPIO_REG   0x3C

BOARD_REV_ID_REG

#define BOARD_REV_ID_REG   0x1B

BOARD_TYPE_REG

#define BOARD_TYPE_REG   0x1A

BUFFER_100M_CLK_LOSE_OF_INPUT_SIGNAL_REG

#define BUFFER_100M_CLK_LOSE_OF_INPUT_SIGNAL_REG   0x3A

CMN_STATUS_REG

#define CMN_STATUS_REG   0x31

CPLD_EEPROM_STATUS_REG

#define CPLD_EEPROM_STATUS_REG   0x35

CRD_STATUS_REG

#define CRD_STATUS_REG   0x30

FM_AEGIS_CLK_100MHZ_EN_N_OFF_REG

#define FM_AEGIS_CLK_100MHZ_EN_N_OFF_REG   0x74

FM_AEGIS_CLK_100MHZ_EN_N_ON_REG

#define FM_AEGIS_CLK_100MHZ_EN_N_ON_REG   0x65

FM_AEGIS_CLK_312MHZ_EN_OFF_REG

#define FM_AEGIS_CLK_312MHZ_EN_OFF_REG   0x75

FM_AEGIS_CLK_312MHZ_EN_ON_REG

#define FM_AEGIS_CLK_312MHZ_EN_ON_REG   0x66

FM_AEGIS_CLK_48MHZ_EN_OFF_REG

#define FM_AEGIS_CLK_48MHZ_EN_OFF_REG   0x73

FM_AEGIS_CLK_48MHZ_EN_ON_REG

#define FM_AEGIS_CLK_48MHZ_EN_ON_REG   0x64

LEAK_DETCTION_REG

#define LEAK_DETCTION_REG   0x2E

MB_POWER_GOOD_AND_PERST_PIN_READING_REG

#define MB_POWER_GOOD_AND_PERST_PIN_READING_REG   0x06

MTIA_ATH_TEST_PIN_STATUS_REG

#define MTIA_ATH_TEST_PIN_STATUS_REG   0x38

MTIA_N_OWL_TEST_PIN_STATUS_REG

#define MTIA_N_OWL_TEST_PIN_STATUS_REG   0x36

MTIA_QSPI_BOOT_DISABLE_REG

#define MTIA_QSPI_BOOT_DISABLE_REG   0x3B

MTIA_S_OWL_TEST_PIN_STATUS_REG

#define MTIA_S_OWL_TEST_PIN_STATUS_REG   0x37

MTIA_VQPS_TO_EFUSE_PROGRAMMING_REG

#define MTIA_VQPS_TO_EFUSE_PROGRAMMING_REG   0x39

N_OWL_BOOT_SOURCE_REG

#define N_OWL_BOOT_SOURCE_REG   0x23

OSFP_POWER_ENABLE_PIN_READING_1_REG

#define OSFP_POWER_ENABLE_PIN_READING_1_REG   0x16

OSFP_POWER_ENABLE_PIN_READING_2_REG

#define OSFP_POWER_ENABLE_PIN_READING_2_REG   0x17

OSFP_POWER_ENABLE_PIN_READING_3_REG

#define OSFP_POWER_ENABLE_PIN_READING_3_REG   0x18

OSFP_POWER_ENABLE_PIN_READING_4_REG

#define OSFP_POWER_ENABLE_PIN_READING_4_REG   0x19

OSFP_PRSNT_PIN_READING_1_REG

#define OSFP_PRSNT_PIN_READING_1_REG   0x14

OSFP_PRSNT_PIN_READING_2_REG

#define OSFP_PRSNT_PIN_READING_2_REG   0x15

OWL_JTAG_SEL_MUX_REG

#define OWL_JTAG_SEL_MUX_REG   0x1D

OWL_UART_SEL_MUX_REG

#define OWL_UART_SEL_MUX_REG   0x1F

P12V_UBC_PWRGD_OFF_REG

#define P12V_UBC_PWRGD_OFF_REG   0x96

P12V_UBC_PWRGD_ON_REG

#define P12V_UBC_PWRGD_ON_REG   0x48

POLLING_CPLD_STACK_SIZE

#define POLLING_CPLD_STACK_SIZE   2048

POWER_AND_RESET_BUTTON_REG

#define POWER_AND_RESET_BUTTON_REG   0x00

PWRGD_LDO_IN_1V2_R_OFF_REG

#define PWRGD_LDO_IN_1V2_R_OFF_REG   0x92

PWRGD_LDO_IN_1V2_R_ON_REG

#define PWRGD_LDO_IN_1V2_R_ON_REG   0x4C

PWRGD_LDO_IN_1V8_R_OFF_REG

#define PWRGD_LDO_IN_1V8_R_OFF_REG   0x86

PWRGD_LDO_IN_1V8_R_ON_REG

#define PWRGD_LDO_IN_1V8_R_ON_REG   0x58

PWRGD_P0V75_AVDD_HSCL_R_OFF_REG

#define PWRGD_P0V75_AVDD_HSCL_R_OFF_REG   0x89

PWRGD_P0V75_AVDD_HSCL_R_ON_REG

#define PWRGD_P0V75_AVDD_HSCL_R_ON_REG   0x56

PWRGD_P0V75_MAX_PHY_N_OFF_REG

#define PWRGD_P0V75_MAX_PHY_N_OFF_REG   0x8D

PWRGD_P0V75_MAX_PHY_N_ON_REG

#define PWRGD_P0V75_MAX_PHY_N_ON_REG   0x4F

PWRGD_P0V75_MAX_PHY_S_OFF_REG

#define PWRGD_P0V75_MAX_PHY_S_OFF_REG   0x8F

PWRGD_P0V75_MAX_PHY_S_ON_REG

#define PWRGD_P0V75_MAX_PHY_S_ON_REG   0x51

PWRGD_P0V75_PVDD_CH_N_OFF_REG

#define PWRGD_P0V75_PVDD_CH_N_OFF_REG   0x8C

PWRGD_P0V75_PVDD_CH_N_ON_REG

#define PWRGD_P0V75_PVDD_CH_N_ON_REG   0x4E

PWRGD_P0V75_PVDD_CH_S_OFF_REG

#define PWRGD_P0V75_PVDD_CH_S_OFF_REG   0x8E

PWRGD_P0V75_PVDD_CH_S_ON_REG

#define PWRGD_P0V75_PVDD_CH_S_ON_REG   0x50

PWRGD_P0V75_TRVDD_ZONEA_R_OFF_REG

#define PWRGD_P0V75_TRVDD_ZONEA_R_OFF_REG   0x87

PWRGD_P0V75_TRVDD_ZONEA_R_ON_REG

#define PWRGD_P0V75_TRVDD_ZONEA_R_ON_REG   0x54

PWRGD_P0V75_TRVDD_ZONEB_R_OFF_REG

#define PWRGD_P0V75_TRVDD_ZONEB_R_OFF_REG   0x88

PWRGD_P0V75_TRVDD_ZONEB_R_ON_REG

#define PWRGD_P0V75_TRVDD_ZONEB_R_ON_REG   0x55

PWRGD_P0V75_VDDC_CLKOBS_R_OFF_REG

#define PWRGD_P0V75_VDDC_CLKOBS_R_OFF_REG   0x8A

PWRGD_P0V75_VDDC_CLKOBS_R_ON_REG

#define PWRGD_P0V75_VDDC_CLKOBS_R_ON_REG   0x57

PWRGD_P0V75_VDDPHY_HBM0_HBM2_HBM4_R_OFF_REG

#define PWRGD_P0V75_VDDPHY_HBM0_HBM2_HBM4_R_OFF_REG   0x90

PWRGD_P0V75_VDDPHY_HBM0_HBM2_HBM4_R_ON_REG

#define PWRGD_P0V75_VDDPHY_HBM0_HBM2_HBM4_R_ON_REG   0x52

PWRGD_P0V75_VDDPHY_HBM1_HBM3_HBM5_R_OFF_REG

#define PWRGD_P0V75_VDDPHY_HBM1_HBM3_HBM5_R_OFF_REG   0x91

PWRGD_P0V75_VDDPHY_HBM1_HBM3_HBM5_R_ON_REG

#define PWRGD_P0V75_VDDPHY_HBM1_HBM3_HBM5_R_ON_REG   0x53

PWRGD_P0V85_PVDD_OFF_REG

#define PWRGD_P0V85_PVDD_OFF_REG   0x8B

PWRGD_P0V85_PVDD_ON_REG

#define PWRGD_P0V85_PVDD_ON_REG   0x4D

PWRGD_P0V9_TRVDD_ZONEA_R_OFF_REG

#define PWRGD_P0V9_TRVDD_ZONEA_R_OFF_REG   0x77

PWRGD_P0V9_TRVDD_ZONEA_R_ON_REG

#define PWRGD_P0V9_TRVDD_ZONEA_R_ON_REG   0x68

PWRGD_P0V9_TRVDD_ZONEB_R_OFF_REG

#define PWRGD_P0V9_TRVDD_ZONEB_R_OFF_REG   0x78

PWRGD_P0V9_TRVDD_ZONEB_R_ON_REG

#define PWRGD_P0V9_TRVDD_ZONEB_R_ON_REG   0x69

PWRGD_P1V1_VDDC_HBM0_HBM2_HBM4_R_OFF_REG

#define PWRGD_P1V1_VDDC_HBM0_HBM2_HBM4_R_OFF_REG   0x7D

PWRGD_P1V1_VDDC_HBM0_HBM2_HBM4_R_ON_REG

#define PWRGD_P1V1_VDDC_HBM0_HBM2_HBM4_R_ON_REG   0x60

PWRGD_P1V1_VDDC_HBM1_HBM3_HBM5_R_OFF_REG

#define PWRGD_P1V1_VDDC_HBM1_HBM3_HBM5_R_OFF_REG   0x7E

PWRGD_P1V1_VDDC_HBM1_HBM3_HBM5_R_ON_REG

#define PWRGD_P1V1_VDDC_HBM1_HBM3_HBM5_R_ON_REG   0x61

PWRGD_P3V3_OFF_REG

#define PWRGD_P3V3_OFF_REG   0x93

PWRGD_P3V3_ON_REG

#define PWRGD_P3V3_ON_REG   0x4B

PWRGD_P3V3_OSC_OFF_REG

#define PWRGD_P3V3_OSC_OFF_REG   0x94

PWRGD_P3V3_OSC_ON_REG

#define PWRGD_P3V3_OSC_ON_REG   0x4A

PWRGD_P5V_R_OFF_REG

#define PWRGD_P5V_R_OFF_REG   0x95

PWRGD_P5V_R_ON_REG

#define PWRGD_P5V_R_ON_REG   0x49

PWRGD_PLL_VDDA15_HBM0_HBM2_HBM4_OFF_REG

#define PWRGD_PLL_VDDA15_HBM0_HBM2_HBM4_OFF_REG   0x84

PWRGD_PLL_VDDA15_HBM0_HBM2_HBM4_ON_REG

#define PWRGD_PLL_VDDA15_HBM0_HBM2_HBM4_ON_REG   0x5C

PWRGD_PLL_VDDA15_HBM1_HBM3_HBM5_OFF_REG

#define PWRGD_PLL_VDDA15_HBM1_HBM3_HBM5_OFF_REG   0x85

PWRGD_PLL_VDDA15_HBM1_HBM3_HBM5_ON_REG

#define PWRGD_PLL_VDDA15_HBM1_HBM3_HBM5_ON_REG   0x5D

PWRGD_PLL_VDDA15_MAX_CORE_N_OFF_REG

#define PWRGD_PLL_VDDA15_MAX_CORE_N_OFF_REG   0x81

PWRGD_PLL_VDDA15_MAX_CORE_N_ON_REG

#define PWRGD_PLL_VDDA15_MAX_CORE_N_ON_REG   0x59

PWRGD_PLL_VDDA15_MAX_CORE_S_OFF_REG

#define PWRGD_PLL_VDDA15_MAX_CORE_S_OFF_REG   0x82

PWRGD_PLL_VDDA15_MAX_CORE_S_ON_REG

#define PWRGD_PLL_VDDA15_MAX_CORE_S_ON_REG   0x5A

PWRGD_PLL_VDDA15_PCIE_MAX_CORE_OFF_REG

#define PWRGD_PLL_VDDA15_PCIE_MAX_CORE_OFF_REG   0x83

PWRGD_PLL_VDDA15_PCIE_MAX_CORE_ON_REG

#define PWRGD_PLL_VDDA15_PCIE_MAX_CORE_ON_REG   0x5B

PWRGD_PVDD0P9_N_OFF_REG

#define PWRGD_PVDD0P9_N_OFF_REG   0x79

PWRGD_PVDD0P9_N_ON_REG

#define PWRGD_PVDD0P9_N_ON_REG   0x6A

PWRGD_PVDD0P9_S_OFF_REG

#define PWRGD_PVDD0P9_S_OFF_REG   0x7A

PWRGD_PVDD0P9_S_ON_REG

#define PWRGD_PVDD0P9_S_ON_REG   0x6B

PWRGD_PVDD1P5_N_OFF_REG

#define PWRGD_PVDD1P5_N_OFF_REG   0x71

PWRGD_PVDD1P5_N_ON_REG

#define PWRGD_PVDD1P5_N_ON_REG   0x6C

PWRGD_PVDD1P5_S_OFF_REG

#define PWRGD_PVDD1P5_S_OFF_REG   0x72

PWRGD_PVDD1P5_S_ON_REG

#define PWRGD_PVDD1P5_S_ON_REG   0x6D

PWRGD_VDDA_PCIE_R_OFF_REG

#define PWRGD_VDDA_PCIE_R_OFF_REG   0x76

PWRGD_VDDA_PCIE_R_ON_REG

#define PWRGD_VDDA_PCIE_R_ON_REG   0x67

PWRGD_VDDHTX_PCIE_R_OFF_REG

#define PWRGD_VDDHTX_PCIE_R_OFF_REG   0x70

PWRGD_VDDHTX_PCIE_R_ON_REG

#define PWRGD_VDDHTX_PCIE_R_ON_REG   0x6E

PWRGD_VDDQL_HBM0_HBM2_HBM4_R_OFF_REG

#define PWRGD_VDDQL_HBM0_HBM2_HBM4_R_OFF_REG   0x7B

PWRGD_VDDQL_HBM0_HBM2_HBM4_R_ON_REG

#define PWRGD_VDDQL_HBM0_HBM2_HBM4_R_ON_REG   0x62

PWRGD_VDDQL_HBM1_HBM3_HBM5_R_OFF_REG

#define PWRGD_VDDQL_HBM1_HBM3_HBM5_R_OFF_REG   0x7C

PWRGD_VDDQL_HBM1_HBM3_HBM5_R_ON_REG

#define PWRGD_VDDQL_HBM1_HBM3_HBM5_R_ON_REG   0x63

PWRGD_VPP_HBM0_HBM2_HBM4_R_OFF_REG

#define PWRGD_VPP_HBM0_HBM2_HBM4_R_OFF_REG   0x7F

PWRGD_VPP_HBM0_HBM2_HBM4_R_ON_REG

#define PWRGD_VPP_HBM0_HBM2_HBM4_R_ON_REG   0x5E

PWRGD_VPP_HBM1_HBM3_HBM5_R_OFF_REG

#define PWRGD_VPP_HBM1_HBM3_HBM5_R_OFF_REG   0x80

PWRGD_VPP_HBM1_HBM3_HBM5_R_ON_REG

#define PWRGD_VPP_HBM1_HBM3_HBM5_R_ON_REG   0x5F

RESET_PIN_TO_ICS_STATUS_REG

#define RESET_PIN_TO_ICS_STATUS_REG   0x2F

RST_ATH_PWR_ON_PLD_N_ON_REG

#define RST_ATH_PWR_ON_PLD_N_ON_REG   0x6F

RSVD_1_REG

#define RSVD_1_REG   0x0C

RSVD_2_REG

#define RSVD_2_REG   0x12

RSVD_3_REG

#define RSVD_3_REG   0x13

RSVD_4_REG

#define RSVD_4_REG   0x26

RSVD_GPIO_STATUS_REG

#define RSVD_GPIO_STATUS_REG   0x32

S_OWL_BOOT_SOURCE_REG

#define S_OWL_BOOT_SOURCE_REG   0x22

SYSTEM_ALERT_FAULT_2_REG

#define SYSTEM_ALERT_FAULT_2_REG   0x99

SYSTEM_ALERT_FAULT_REG

#define SYSTEM_ALERT_FAULT_REG   0x28

TEMPERATURE_IC_OVERT_FAULT_2_REG

#define TEMPERATURE_IC_OVERT_FAULT_2_REG   0x97

TEMPERATURE_IC_OVERT_FAULT_REG

#define TEMPERATURE_IC_OVERT_FAULT_REG   0x2B

UART_IC_STATUS_REG

#define UART_IC_STATUS_REG   0x33

UBC_MODULE_OC_WARNING_REG

#define UBC_MODULE_OC_WARNING_REG   0x34

VR_AND_CLK_ENABLE_PIN_READING_REG

#define VR_AND_CLK_ENABLE_PIN_READING_REG   0x01

VR_ENABLE_PIN_READING_1_REG

#define VR_ENABLE_PIN_READING_1_REG   0x02

VR_ENABLE_PIN_READING_2_REG

#define VR_ENABLE_PIN_READING_2_REG   0x03

VR_ENABLE_PIN_READING_3_REG

#define VR_ENABLE_PIN_READING_3_REG   0x04

VR_ENABLE_PIN_READING_4_REG

#define VR_ENABLE_PIN_READING_4_REG   0x05

VR_HOT_FAULT_1_REG

#define VR_HOT_FAULT_1_REG   0x29

VR_HOT_FAULT_2_REG

#define VR_HOT_FAULT_2_REG   0x2A

VR_POWER_FAULT_1_REG

#define VR_POWER_FAULT_1_REG   0x0D

VR_POWER_FAULT_2_REG

#define VR_POWER_FAULT_2_REG   0x0E

VR_POWER_FAULT_3_REG

#define VR_POWER_FAULT_3_REG   0x0F

VR_POWER_FAULT_4_REG

#define VR_POWER_FAULT_4_REG   0x10

VR_POWER_FAULT_5_REG

#define VR_POWER_FAULT_5_REG   0x11

VR_POWER_GOOD_PIN_READING_1_REG

#define VR_POWER_GOOD_PIN_READING_1_REG   0x07

VR_POWER_GOOD_PIN_READING_2_REG

#define VR_POWER_GOOD_PIN_READING_2_REG   0x08

VR_POWER_GOOD_PIN_READING_3_REG

#define VR_POWER_GOOD_PIN_READING_3_REG   0x09

VR_POWER_GOOD_PIN_READING_4_REG

#define VR_POWER_GOOD_PIN_READING_4_REG   0x0A

VR_POWER_GOOD_PIN_READING_5_REG

#define VR_POWER_GOOD_PIN_READING_5_REG   0x0B

VR_POWER_INPUT_FAULT_1_REG

#define VR_POWER_INPUT_FAULT_1_REG   0x2C

VR_POWER_INPUT_FAULT_2_REG

#define VR_POWER_INPUT_FAULT_2_REG   0x2D

VR_SMBUS_ALERT_1_REG

#define VR_SMBUS_ALERT_1_REG   0x24

VR_SMBUS_ALERT_2_REG

#define VR_SMBUS_ALERT_2_REG   0x25

VR_SMBUS_ALERT_3_REG

#define VR_SMBUS_ALERT_3_REG   0x9A

VR_SMBUS_ALERT_4_REG

#define VR_SMBUS_ALERT_4_REG   0x9B

VR_VENDOR_TYPE_REG

#define VR_VENDOR_TYPE_REG   0x1C

Typedef Documentation

aegis_cpld_info

typedef struct _aegis_cpld_info_ aegis_cpld_info

Function Documentation

check_cpld_polling_alert_status()

void check_cpld_polling_alert_status

(

)

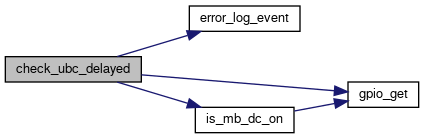

Here is the call graph for this function:

check_ubc_delayed()

void check_ubc_delayed

(

struct k_work *

work

)

Here is the call graph for this function:

check_ubc_delayed_timer_handler()

void check_ubc_delayed_timer_handler

(

struct k_timer *

timer

)

get_cpld_bit_name()

const char * get_cpld_bit_name	(	uint8_t	cpld_offset,
		uint8_t	bit_pos
	)

get_cpld_polling_enable_flag()

bool get_cpld_polling_enable_flag

(

void

)

get_cpld_reg_name()

const char * get_cpld_reg_name

(

uint8_t

cpld_offset

)

init_cpld_polling()

void init_cpld_polling

(

void

)

Here is the call graph for this function:

is_ubc_enabled_delayed_enabled()

bool is_ubc_enabled_delayed_enabled

(

void

)

set_cpld_polling_enable_flag()

void set_cpld_polling_enable_flag

(

bool

status

)
