shell_rainbow_asic.c File Reference

#include <stdlib.h>
#include <shell/shell.h>
#include <string.h>
#include <limits.h>
#include <stdio.h>
#include "hal_i2c.h"
#include "plat_i2c.h"

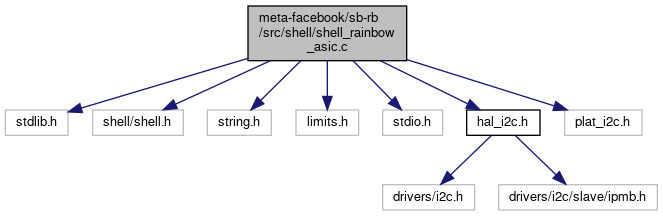

Include dependency graph for shell_rainbow_asic.c:

Macros
#define	ASIC_I2C_BUS   I2C_BUS12
#define	ASIC_I2C_ADDR   0x32
#define	I2C_MAX_RETRY   3
#define	ASIC_REG_STATUS_REG   0x00
#define	ASIC_MONITOR_HBM_TEMP_REG   0x8F
#define	ASIC_MONITOR_TEMP_REG   0x70
#define	ASIC_VERSION_REG   0x68
#define	ASIC_STATUS_REG_LEN   8
#define	ASIC_VERSION_REG_LEN   11
#define	ASIC_MONITOR_TEMP_REG_LEN   10
#define	ASIC_MONITOR_HBM_TEMP_REG_LEN   10

Functions
int	asic_read_cmd (const struct shell *shell, uint8_t reg, uint8_t *data, uint8_t len)
void	asic_boot_status_cmd (const struct shell *shell)
void	asic_version_cmd (const struct shell *shell)
void	max_asic_temp_history_cmd (const struct shell *shell)
void	asic_read_all_cmd (const struct shell *shell, size_t argc, char **argv)
void	asic_help_cmd (const struct shell *shell, size_t argc, char **argv)
	Display help information for all Asic commands. More...
	SHELL_STATIC_SUBCMD_SET_CREATE (sub_asic_cmds, SHELL_CMD(read_all, NULL, "read all Asic system data", asic_read_all_cmd), SHELL_CMD(help, NULL, "display help information for Asic commands", asic_help_cmd), SHELL_SUBCMD_SET_END)
	SHELL_CMD_REGISTER (rb_asic, &sub_asic_cmds, "Rainbow Asic low-level commands", NULL)

Macro Definition Documentation

ASIC_I2C_ADDR

#define ASIC_I2C_ADDR   0x32

ASIC_I2C_BUS

#define ASIC_I2C_BUS   I2C_BUS12

ASIC_MONITOR_HBM_TEMP_REG

#define ASIC_MONITOR_HBM_TEMP_REG   0x8F

ASIC_MONITOR_HBM_TEMP_REG_LEN

#define ASIC_MONITOR_HBM_TEMP_REG_LEN   10

ASIC_MONITOR_TEMP_REG

#define ASIC_MONITOR_TEMP_REG   0x70

ASIC_MONITOR_TEMP_REG_LEN

#define ASIC_MONITOR_TEMP_REG_LEN   10

ASIC_REG_STATUS_REG

#define ASIC_REG_STATUS_REG   0x00

ASIC_STATUS_REG_LEN

#define ASIC_STATUS_REG_LEN   8

ASIC_VERSION_REG

#define ASIC_VERSION_REG   0x68

ASIC_VERSION_REG_LEN

#define ASIC_VERSION_REG_LEN   11

I2C_MAX_RETRY

#define I2C_MAX_RETRY   3

Function Documentation

asic_boot_status_cmd()

void asic_boot_status_cmd

(

const struct shell *

shell

)

Here is the call graph for this function:

asic_help_cmd()

void asic_help_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

Display help information for all Asic commands.

Parameters

shell	Shell instance
argc	Argument count
argv	Argument values

asic_read_all_cmd()

void asic_read_all_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

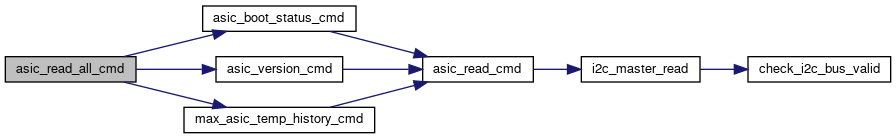

Here is the call graph for this function:

asic_read_cmd()

int asic_read_cmd	(	const struct shell *	shell,
		uint8_t	reg,
		uint8_t *	data,
		uint8_t	len
	)

Here is the call graph for this function:

asic_version_cmd()

void asic_version_cmd

(

const struct shell *

shell

)

Here is the call graph for this function:

max_asic_temp_history_cmd()

void max_asic_temp_history_cmd

(

const struct shell *

shell

)

Here is the call graph for this function:

SHELL_CMD_REGISTER()

SHELL_CMD_REGISTER	(	rb_asic	,
		&	sub_asic_cmds,
		"Rainbow Asic low-level commands"	,
		NULL
	)

SHELL_STATIC_SUBCMD_SET_CREATE()

SHELL_STATIC_SUBCMD_SET_CREATE	(	sub_asic_cmds	,
		SHELL_CMD(read_all, NULL, "read all Asic system data", asic_read_all_cmd)	,
		SHELL_CMD(help, NULL, "display help information for Asic commands", asic_help_cmd)	,
		SHELL_SUBCMD_SET_END
	)
