shell_clock.c File Reference

#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <zephyr.h>
#include <logging/log.h>
#include <sys/slist.h>
#include "libutil.h"
#include "plat_i2c.h"
#include <shell/shell.h>

Include dependency graph for shell_clock.c:

Classes
struct	clock_compnt_mapping
struct	_clock_default_info

Macros
#define	CLK_BUF_U85_ADDR   (0xCE >> 1)
#define	CLK_BUF_U87_ADDR   (0xD8 >> 1)
#define	CLK_BUF_U88_ADDR   (0xDE >> 1)
#define	CLK_GEN_100M_U86_ADDR   0x9
#define	CLK_BUF_100M_WRITE_LOCK_CLEAR_LOS_EVENT_OFFSET   0x27
#define	CLK_GEN_LOSMON_EVENT_OFFSET   0x5a
#define	CLK_BUF_100M_BYTE_COUNT   0x7
#define	CLK_DEFAULT_BYTE_VALUE   0x00
#define	REGISTER_BYTE_MAX   4

Typedefs
typedef struct clock_compnt_mapping	clock_compnt_mapping
typedef struct _clock_default_info	clock_default_info

Enumerations
enum	CLOCK_COMPONENT {   CLKGEN_312M , AEGIS_CLKBUF_100M_U471 , AEGIS_CLKBUF_100M_U519 , CLKGEN_100M ,   CLK_COMPONENT_MAX , CLK_BUF_100M_U85 , CLK_BUF_100M_U87 , CLK_BUF_100M_U88 ,   CLK_GEN_100M_U86 , CLK_COMPONENT_MAX }

Functions
	LOG_MODULE_REGISTER (clock_shell)
bool	clock_name_get (uint8_t index, uint8_t **name)
int	find_clock_address_and_bus_by_clock_name_index (uint8_t clock_index, uint8_t *addr, uint8_t *bus)
bool	clock_enum_get (uint8_t *name, uint8_t *num)
void	cmd_set_clock (const struct shell *shell, size_t argc, char **argv)
void	cmd_get_clock (const struct shell *shell, size_t argc, char **argv)
void	handle_single_clock_status (const struct shell *shell, enum CLOCK_COMPONENT clock_index)
void	cmd_get_clock_status (const struct shell *shell, size_t argc, char **argv)
void	cmd_clear_clock_status (const struct shell *shell, size_t argc, char **argv)
	SHELL_DYNAMIC_CMD_CREATE (clock_name, dynamic_clock_name_get)
	SHELL_DYNAMIC_CMD_CREATE (all_clock_name, all_dynamic_clock_name_get)
	SHELL_STATIC_SUBCMD_SET_CREATE (sub_clock_cmds, SHELL_CMD_ARG(set, &clock_name, "set <clock> <reg-offset> <value>|default", cmd_set_clock, 4, 3), SHELL_CMD_ARG(get, &clock_name, "get <clock> <reg-offset> <read_length>", cmd_get_clock, 4, 0), SHELL_SUBCMD_SET_END)
	SHELL_CMD_REGISTER (clock, &sub_clock_cmds, "Clock commands for AG", NULL)
	SHELL_STATIC_SUBCMD_SET_CREATE (sub_clock_status_cmds, SHELL_CMD_ARG(get, &all_clock_name, "get <clock>", cmd_get_clock_status, 2, 0), SHELL_CMD_ARG(clear, &clock_name, "clear <clock>", cmd_clear_clock_status, 2, 0), SHELL_SUBCMD_SET_END)
	SHELL_CMD_REGISTER (clock_status, &sub_clock_status_cmds, "Clock status commands for AG", NULL)

Variables
clock_compnt_mapping	clock_compnt_mapping_table []

Macro Definition Documentation

CLK_BUF_100M_BYTE_COUNT

#define CLK_BUF_100M_BYTE_COUNT   0x7

CLK_BUF_100M_WRITE_LOCK_CLEAR_LOS_EVENT_OFFSET

#define CLK_BUF_100M_WRITE_LOCK_CLEAR_LOS_EVENT_OFFSET   0x27

CLK_BUF_U85_ADDR

#define CLK_BUF_U85_ADDR   (0xCE >> 1)

CLK_BUF_U87_ADDR

#define CLK_BUF_U87_ADDR   (0xD8 >> 1)

CLK_BUF_U88_ADDR

#define CLK_BUF_U88_ADDR   (0xDE >> 1)

CLK_DEFAULT_BYTE_VALUE

#define CLK_DEFAULT_BYTE_VALUE   0x00

CLK_GEN_100M_U86_ADDR

#define CLK_GEN_100M_U86_ADDR   0x9

CLK_GEN_LOSMON_EVENT_OFFSET

#define CLK_GEN_LOSMON_EVENT_OFFSET   0x5a

REGISTER_BYTE_MAX

#define REGISTER_BYTE_MAX   4

Typedef Documentation

clock_compnt_mapping

typedef struct clock_compnt_mapping clock_compnt_mapping

clock_default_info

typedef struct _clock_default_info clock_default_info

Enumeration Type Documentation

CLOCK_COMPONENT

enum CLOCK_COMPONENT

Enumerator
CLKGEN_312M
AEGIS_CLKBUF_100M_U471
AEGIS_CLKBUF_100M_U519
CLKGEN_100M
CLK_COMPONENT_MAX
CLK_BUF_100M_U85
CLK_BUF_100M_U87
CLK_BUF_100M_U88
CLK_GEN_100M_U86
CLK_COMPONENT_MAX

Function Documentation

clock_enum_get()

bool clock_enum_get	(	uint8_t *	name,
		uint8_t *	num
	)

clock_name_get()

bool clock_name_get	(	uint8_t	index,
		uint8_t **	name
	)

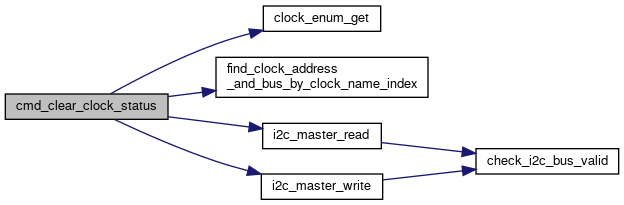

cmd_clear_clock_status()

void cmd_clear_clock_status	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

Here is the call graph for this function:

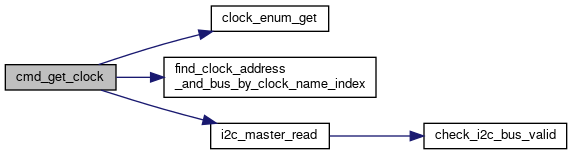

cmd_get_clock()

void cmd_get_clock	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

Here is the call graph for this function:

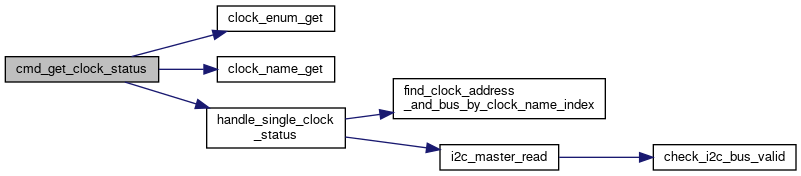

cmd_get_clock_status()

void cmd_get_clock_status	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

Here is the call graph for this function:

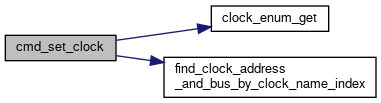

cmd_set_clock()

void cmd_set_clock	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

Here is the call graph for this function:

find_clock_address_and_bus_by_clock_name_index()

int find_clock_address_and_bus_by_clock_name_index	(	uint8_t	clock_index,
		uint8_t *	addr,
		uint8_t *	bus
	)

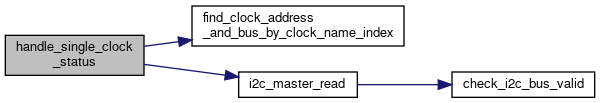

handle_single_clock_status()

void handle_single_clock_status	(	const struct shell *	shell,
		enum CLOCK_COMPONENT	clock_index
	)

Here is the call graph for this function:

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

clock_shell

)

SHELL_CMD_REGISTER() [1/2]

SHELL_CMD_REGISTER	(	clock	,
		&	sub_clock_cmds,
		"Clock commands for AG"	,
		NULL
	)

SHELL_CMD_REGISTER() [2/2]

SHELL_CMD_REGISTER	(	clock_status	,
		&	sub_clock_status_cmds,
		"Clock status commands for AG"	,
		NULL
	)

SHELL_DYNAMIC_CMD_CREATE() [1/2]

SHELL_DYNAMIC_CMD_CREATE	(	all_clock_name	,
		all_dynamic_clock_name_get
	)

SHELL_DYNAMIC_CMD_CREATE() [2/2]

SHELL_DYNAMIC_CMD_CREATE	(	clock_name	,
		dynamic_clock_name_get
	)

SHELL_STATIC_SUBCMD_SET_CREATE() [1/2]

SHELL_STATIC_SUBCMD_SET_CREATE	(	sub_clock_cmds	,
		SHELL_CMD_ARG(set, &clock_name, "set <clock> <reg-offset> <value>|default", cmd_set_clock, 4, 3)	,
		SHELL_CMD_ARG(get, &clock_name, "get <clock> <reg-offset> <read_length>", cmd_get_clock, 4, 0)	,
		SHELL_SUBCMD_SET_END
	)

SHELL_STATIC_SUBCMD_SET_CREATE() [2/2]

SHELL_STATIC_SUBCMD_SET_CREATE	(	sub_clock_status_cmds	,
		SHELL_CMD_ARG(get, &all_clock_name, "get <clock>", cmd_get_clock_status, 2, 0)	,
		SHELL_CMD_ARG(clear, &clock_name, "clear <clock>", cmd_clear_clock_status, 2, 0)	,
		SHELL_SUBCMD_SET_END
	)

Variable Documentation

clock_compnt_mapping_table

clock_compnt_mapping clock_compnt_mapping_table[]

Initial value:

= {
    { CLK_BUF_100M_U85, CLK_BUF_U85_ADDR, I2C_BUS1, "CLK_BUF_100M_U85" },
    { CLK_BUF_100M_U87, CLK_BUF_U87_ADDR, I2C_BUS1, "CLK_BUF_100M_U87" },
    { CLK_BUF_100M_U88, CLK_BUF_U88_ADDR, I2C_BUS3, "CLK_BUF_100M_U88" },
    { CLK_GEN_100M_U86, CLK_GEN_100M_U86_ADDR, I2C_BUS3, "CLK_GEN_100M_U86" },
}
