plat_mctp.h File Reference

#include "storage_handler.h"
#include "plat_i2c.h"
#include "pldm_oem.h"

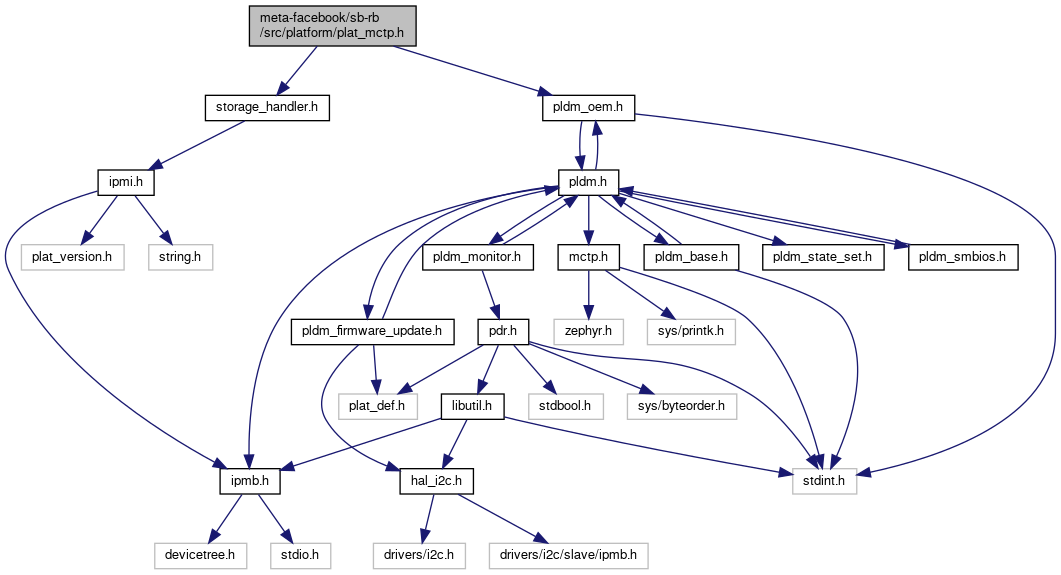

Include dependency graph for plat_mctp.h:

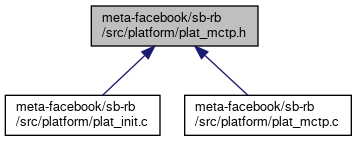

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	mctp_to_ipmi_header_req
struct	mctp_to_ipmi_header_resp
struct	mctp_to_ipmi_sel_req
struct	mctp_to_ipmi_sel_resp

Macros
#define	I2C_ADDR_BIC   0x42
#define	I2C_ADDR_BMC   0x20
#define	I2C_BUS_BMC   I2C_BUS6
#define	DEFAULT_VENDOR_DEF_ID   0x567
#define	MCTP_EID_BMC   0x08
#define	I3C_BUS_BMC   I2C_BUS6
#define	I3C_STATIC_ADDR_BMC   0x20

Functions
struct mctp_to_ipmi_header_req	__attribute__ ((__packed__))
void	plat_mctp_init (void)
void	plat_i3c_set_pid (void)
mctp *	find_mctp_by_bus (uint8_t bus)
void	plat_set_eid (uint8_t slot_eid)

Variables
uint8_t	iana [IANA_LEN]
uint8_t	netfn_lun
uint8_t	ipmi_cmd
uint8_t	completion_code
uint8_t	ipmi_comp_code
struct mctp_to_ipmi_header_req	header
struct ipmi_storage_add_sel_req	req_data
struct ipmi_storage_add_sel_resp	resp_data

Macro Definition Documentation

DEFAULT_VENDOR_DEF_ID

#define DEFAULT_VENDOR_DEF_ID   0x567

I2C_ADDR_BIC

#define I2C_ADDR_BIC   0x42

I2C_ADDR_BMC

#define I2C_ADDR_BMC   0x20

I2C_BUS_BMC

#define I2C_BUS_BMC   I2C_BUS6

I3C_BUS_BMC

#define I3C_BUS_BMC   I2C_BUS6

I3C_STATIC_ADDR_BMC

#define I3C_STATIC_ADDR_BMC   0x20

MCTP_EID_BMC

#define MCTP_EID_BMC   0x08

Function Documentation

__attribute__()

struct mctp_to_ipmi_header_req __attribute__

(

(__packed__)

)

find_mctp_by_bus()

mctp * find_mctp_by_bus

(

uint8_t

bus

)

plat_i3c_set_pid()

void plat_i3c_set_pid

(

void

)

plat_mctp_init()

void plat_mctp_init

(

void

)

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

BIC will not initialize mctp instance if CXL is not present

init mctp for bmc bus

plat_set_eid()

void plat_set_eid

(

uint8_t

slot_eid

)

Variable Documentation

completion_code

uint8_t completion_code

header

struct mctp_to_ipmi_header_resp header

iana

uint8_t iana[IANA_LEN]

ipmi_cmd

uint8_t ipmi_cmd

ipmi_comp_code

uint8_t ipmi_comp_code

netfn_lun

uint8_t netfn_lun

req_data

struct ipmi_storage_add_sel_req req_data

resp_data

struct ipmi_storage_add_sel_resp resp_data
