plat_isr.c File Reference

#include <zephyr.h>
#include <stdio.h>
#include <stdlib.h>
#include <logging/log.h>
#include "plat_gpio.h"
#include "plat_cpld.h"
#include "plat_log.h"
#include "plat_event.h"
#include "plat_ioexp.h"
#include "plat_hook.h"
#include "plat_iris_smbus.h"
#include "plat_util.h"
#include "plat_i2c.h"
#include "shell_iris_power.h"
#include "plat_class.h"
#include "plat_vr_test_mode.h"
#include "plat_power_capping.h"
#include "plat_hwmon.h"
#include "shell_plat_power_sequence.h"
#include "plat_user_setting.h"

Include dependency graph for plat_isr.c:

Macros
#define	NPCM4XX_SCFG_BASE   DT_REG_ADDR_BY_NAME(DT_NODELABEL(scfg), scfg)
#define	NPCM4XX_DEVALTC   0x1C
#define	NPCM4XX_SPIP1_SEL   1 /* DEVALTC bit1: 0=GPIO73, 1=SPIP1_CS */
#define	NPCM4XX_GPIO7_BASE   (REG_GPIO_BASE + 0xE000) /* GPIO_7 register base */
#define	NPCM4XX_GPIO7_PDOUT   0x00 /* Port data output offset */
#define	NPCM4XX_GPIO7_PDIR   0x02 /* Port direction offset */
#define	NPCM4XX_GPIO73_BIT   3 /* GPIO73 = port-7 bit-3 */

Functions
	LOG_MODULE_REGISTER (plat_isr)
void	pwr_sequence_event_timer_handler (struct k_timer *timer)
	K_TIMER_DEFINE (pwr_sequence_event_work_timer, pwr_sequence_event_timer_handler, NULL)
void	pwr_sequence_event (struct k_work *work)
	K_WORK_DEFINE (pwr_sequence_event_work, pwr_sequence_event)
void	set_pwr_steps_on_flag (uint8_t flag_value)
uint8_t	get_pwr_steps_on_flag (void)
void	ISR_GPIO_ALL_VR_PM_ALERT_R_N ()
void	ISR_GPIO_FM_PLD_UBC_EN_R ()
void	plat_switch_pin_a12 (bool use_gpio73)
void	ISR_GPIO_RST_IRIS_PWR_ON_PLD_R1_N ()
void	ISR_GPIO_SMB_HAMSA_MMC_LVC33_ALERT_N ()
void	ISR_ASIC_THERMTRIP_TRIGGER ()
bool	plat_gpio_immediate_int_cb (uint8_t gpio_num)

Variables
uint8_t	pwr_steps_on_flag = 0

Macro Definition Documentation

NPCM4XX_DEVALTC

#define NPCM4XX_DEVALTC   0x1C

NPCM4XX_GPIO73_BIT

#define NPCM4XX_GPIO73_BIT   3 /* GPIO73 = port-7 bit-3 */

NPCM4XX_GPIO7_BASE

#define NPCM4XX_GPIO7_BASE   (REG_GPIO_BASE + 0xE000) /* GPIO_7 register base */

NPCM4XX_GPIO7_PDIR

#define NPCM4XX_GPIO7_PDIR   0x02 /* Port direction offset */

NPCM4XX_GPIO7_PDOUT

#define NPCM4XX_GPIO7_PDOUT   0x00 /* Port data output offset */

NPCM4XX_SCFG_BASE

#define NPCM4XX_SCFG_BASE   DT_REG_ADDR_BY_NAME(DT_NODELABEL(scfg), scfg)

NPCM4XX_SPIP1_SEL

#define NPCM4XX_SPIP1_SEL   1 /* DEVALTC bit1: 0=GPIO73, 1=SPIP1_CS */

Function Documentation

get_pwr_steps_on_flag()

uint8_t get_pwr_steps_on_flag

(

void

)

ISR_ASIC_THERMTRIP_TRIGGER()

void ISR_ASIC_THERMTRIP_TRIGGER

(

)

Here is the call graph for this function:

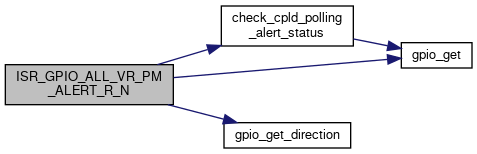

ISR_GPIO_ALL_VR_PM_ALERT_R_N()

void ISR_GPIO_ALL_VR_PM_ALERT_R_N

(

)

Here is the call graph for this function:

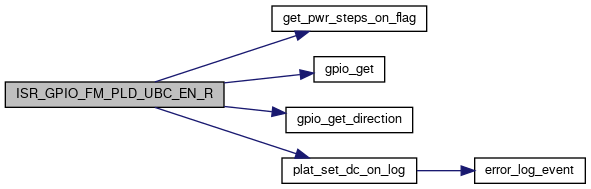

ISR_GPIO_FM_PLD_UBC_EN_R()

void ISR_GPIO_FM_PLD_UBC_EN_R

(

)

Here is the call graph for this function:

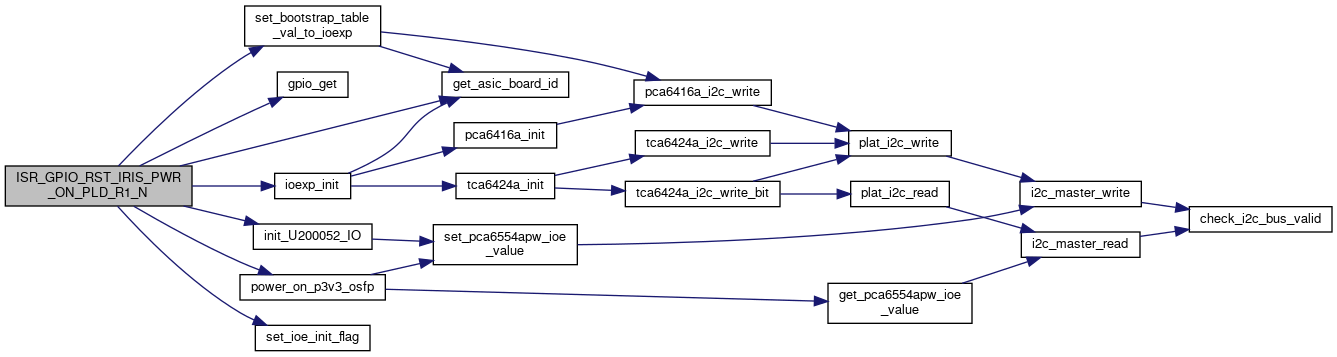

ISR_GPIO_RST_IRIS_PWR_ON_PLD_R1_N()

void ISR_GPIO_RST_IRIS_PWR_ON_PLD_R1_N

(

)

Here is the call graph for this function:

ISR_GPIO_SMB_HAMSA_MMC_LVC33_ALERT_N()

void ISR_GPIO_SMB_HAMSA_MMC_LVC33_ALERT_N

(

)

Here is the call graph for this function:

K_TIMER_DEFINE()

K_TIMER_DEFINE	(	pwr_sequence_event_work_timer	,
		pwr_sequence_event_timer_handler	,
		NULL
	)

K_WORK_DEFINE()

K_WORK_DEFINE	(	pwr_sequence_event_work	,
		pwr_sequence_event
	)

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

plat_isr

)

plat_gpio_immediate_int_cb()

bool plat_gpio_immediate_int_cb

(

uint8_t

gpio_num

)

plat_switch_pin_a12()

void plat_switch_pin_a12

(

bool

use_gpio73

)

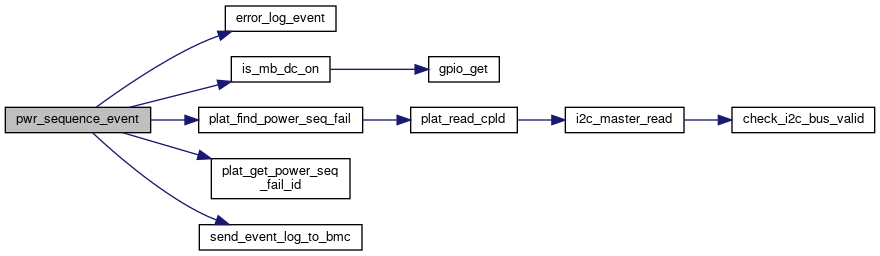

pwr_sequence_event()

void pwr_sequence_event

(

struct k_work *

work

)

Here is the call graph for this function:

pwr_sequence_event_timer_handler()

void pwr_sequence_event_timer_handler

(

struct k_timer *

timer

)

set_pwr_steps_on_flag()

void set_pwr_steps_on_flag

(

uint8_t

flag_value

)

Variable Documentation

pwr_steps_on_flag

uint8_t pwr_steps_on_flag = 0
