plat_user_setting.c File Reference

#include <stdio.h>
#include <string.h>
#include "libutil.h"
#include <logging/log.h>
#include "plat_hook.h"
#include "pmbus.h"
#include "plat_gpio.h"
#include "plat_pldm_sensor.h"
#include "plat_cpld.h"
#include "plat_i2c.h"
#include "plat_fru.h"
#include "plat_user_setting.h"
#include "sensor.h"
#include "tmp75.h"
#include "tmp431.h"
#include "plat_class.h"
#include "shell_plat_average_power.h"
#include "shell_plat_throttle_switch.h"
#include "pldm_monitor.h"
#include "pldm_sensor.h"

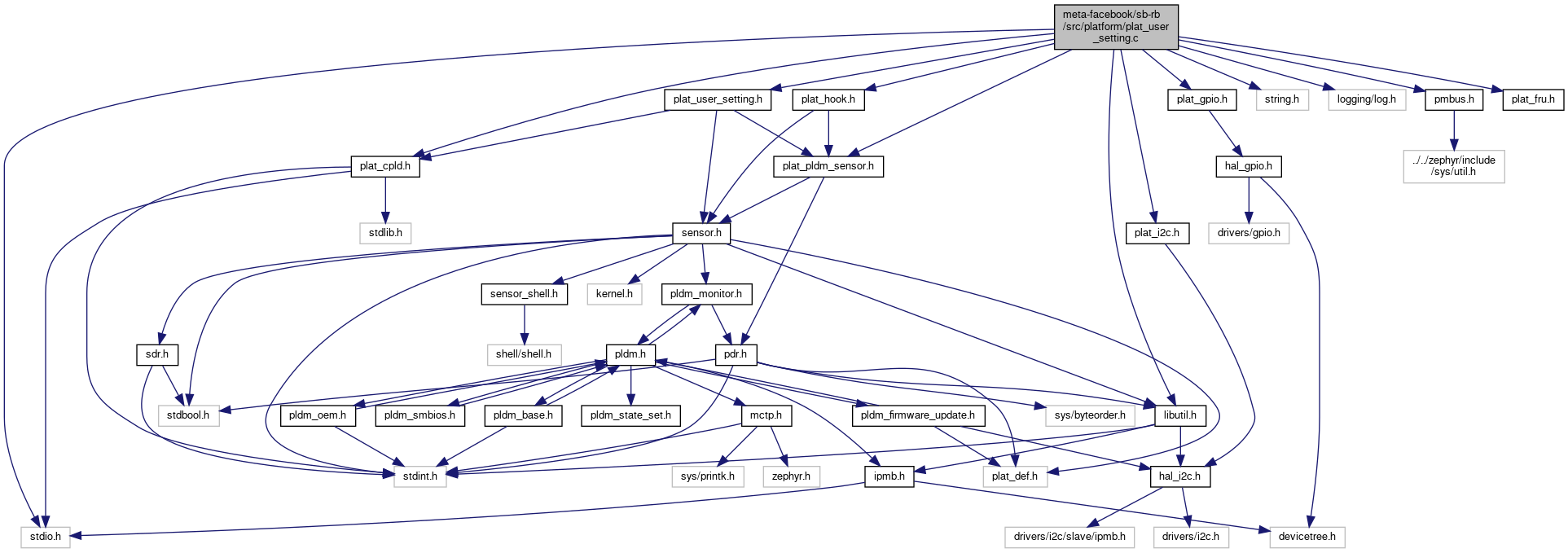

Include dependency graph for plat_user_setting.c:

Macros
#define	EEPROM_MAX_WRITE_TIME   5
#define	TMP75_ALERT_CPLD_OFFSET   0x2F

Functions
	LOG_MODULE_REGISTER (plat_user_setting)
void	pwr_level_mutex_init (void)
bool	set_user_settings_thermaltrip_to_eeprom (void *thermaltrip_user_settings, uint8_t data_length)
bool	get_user_settings_thermaltrip_from_eeprom (void *thermaltrip_user_settings, uint8_t data_length)
bool	set_thermaltrip_user_settings (bool thermaltrip_enable, bool is_perm)
bool	get_temp_sensor_rail_enum (uint8_t *name, uint8_t *num)
bool	plat_get_temp_status (uint8_t rail, uint8_t *temp_status)
bool	get_temp_sensor_rail_name (uint8_t rail, uint8_t **name)
bool	set_temp_threshold_user_settings (void *temp_threshold_user_settings)
bool	set_plat_temp_threshold (uint8_t temp_index_threshold_type, uint32_t *millidegree_celsius, bool is_default, bool is_perm)
bool	get_plat_temp_threshold (uint8_t temp_index_threshold_type, int32_t *millidegree_celsius)
bool	get_temp_threshold_type_enum (uint8_t *name, uint8_t *num)
bool	get_temp_index_threshold_type_name (uint8_t type, uint8_t **name)
bool	plat_clear_temp_status (uint8_t rail)
bool	plat_set_temp_threshold (uint8_t temp_index_threshold_type, uint32_t *millidegree_celsius, bool is_default, bool is_perm)
bool	temp_threshold_default_settings_init (void)
bool	temp_threshold_user_settings_init (void)
bool	plat_get_temp_threshold (uint8_t temp_index_threshold_type, uint32_t *millidegree_celsius)
void	set_alert_level_to_default_or_user_setting (bool is_default, int32_t user_setting)
void	set_uart_power_event_is_enable (bool is_enable)
int	power_level_send_event (bool is_assert, int ubc1_current, int ubc2_current)
int	set_user_settings_alert_level_to_eeprom (void *user_settings, uint8_t data_length)
int	get_alert_level_info (bool *is_assert, int32_t *default_value, int32_t *setting_value)
bool	get_user_settings_throttle_from_eeprom (void *user_settings, uint8_t data_length)
int	get_user_settings_alert_level_from_eeprom (void *user_settings, uint8_t data_length)
bool	get_user_settings_delay_pcie_perst_from_eeprom (void *user_settings, uint8_t data_length)
bool	set_user_settings_delay_pcie_perst_to_eeprom (void *user_settings, uint8_t data_length, uint8_t user_settings_offset)
bool	get_user_settings_delay_asic_rst_from_eeprom (void *user_settings, uint8_t data_length)
bool	set_user_settings_delay_asic_rst_to_eeprom (void *user_settings, uint8_t data_length)
bool	get_user_settings_delay_module_pg_from_eeprom (void *user_settings, uint8_t data_length)
bool	set_user_settings_delay_module_pg_to_eeprom (void *user_settings, uint8_t data_length)
bool	perm_config_clear (void)
bool	ubc_vr_rail_name_get (uint8_t rail, uint8_t **name)
bool	ubc_vr_rail_enum_get (uint8_t *name, uint8_t *num)
bool	post_ubc_read (sensor_cfg *cfg, void *args, int *reading)
bool	post_vr_read (sensor_cfg *cfg, void *args, int *const reading)
bool	get_average_power (uint8_t rail, uint32_t *milliwatt)
void	user_settings_init (void)

Variables
int32_t	alert_level_mA_default = 180000
int32_t	alert_level_mA_user_setting = 180000
bool	alert_level_is_assert = false
thermaltrip_user_settings_struct	thermaltrip_user_settings = { 0xFF }
temp_mapping_sensor	temp_index_table []
temp_threshold_mapping_sensor	temp_index_threshold_type_table []
temp_threshold_user_settings_struct	temp_threshold_user_settings = { 0 }
struct temp_threshold_user_settings_struct	temp_threshold_default_settings = { 0 }
ubc_vr_power_mapping_sensor	ubc_vr_power_table []

Macro Definition Documentation

EEPROM_MAX_WRITE_TIME

#define EEPROM_MAX_WRITE_TIME   5

TMP75_ALERT_CPLD_OFFSET

#define TMP75_ALERT_CPLD_OFFSET   0x2F

Function Documentation

get_alert_level_info()

int get_alert_level_info	(	bool *	is_assert,
		int32_t *	default_value,
		int32_t *	setting_value
	)

get_average_power()

bool get_average_power	(	uint8_t	rail,
		uint32_t *	milliwatt
	)

get_plat_temp_threshold()

bool get_plat_temp_threshold	(	uint8_t	temp_index_threshold_type,
		int32_t *	millidegree_celsius
	)

Here is the call graph for this function:

get_temp_index_threshold_type_name()

bool get_temp_index_threshold_type_name	(	uint8_t	type,
		uint8_t **	name
	)

get_temp_sensor_rail_enum()

bool get_temp_sensor_rail_enum	(	uint8_t *	name,
		uint8_t *	num
	)

get_temp_sensor_rail_name()

bool get_temp_sensor_rail_name	(	uint8_t	rail,
		uint8_t **	name
	)

get_temp_threshold_type_enum()

bool get_temp_threshold_type_enum	(	uint8_t *	name,
		uint8_t *	num
	)

get_user_settings_alert_level_from_eeprom()

int get_user_settings_alert_level_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

get_user_settings_delay_asic_rst_from_eeprom()

bool get_user_settings_delay_asic_rst_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

get_user_settings_delay_module_pg_from_eeprom()

bool get_user_settings_delay_module_pg_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

get_user_settings_delay_pcie_perst_from_eeprom()

bool get_user_settings_delay_pcie_perst_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

get_user_settings_thermaltrip_from_eeprom()

bool get_user_settings_thermaltrip_from_eeprom	(	void *	thermaltrip_user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

get_user_settings_throttle_from_eeprom()

bool get_user_settings_throttle_from_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER

(

plat_user_setting

)

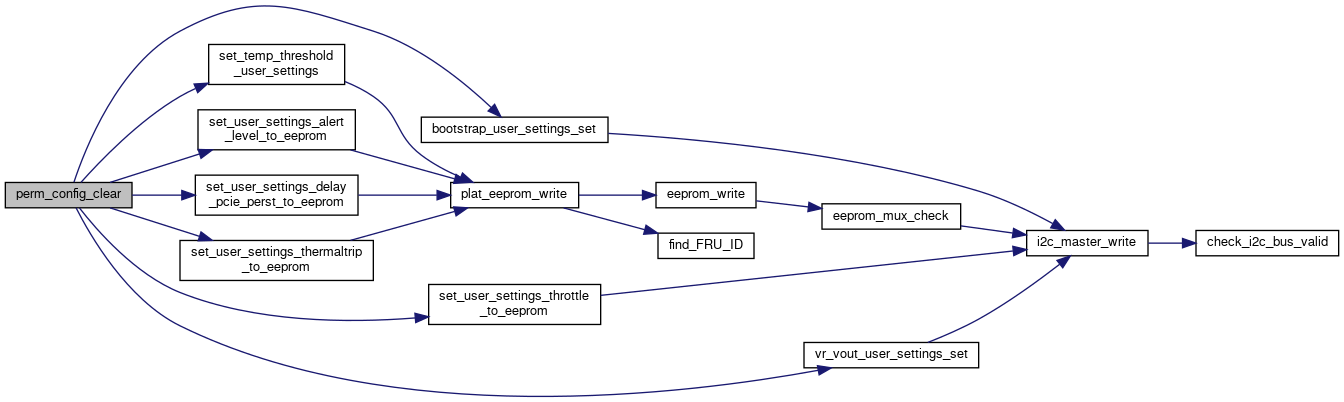

perm_config_clear()

bool perm_config_clear

(

void

)

Here is the call graph for this function:

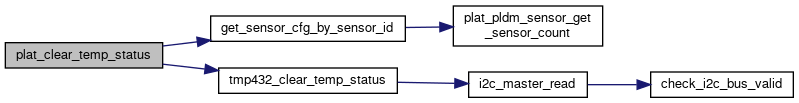

plat_clear_temp_status()

bool plat_clear_temp_status

(

uint8_t

rail

)

Here is the call graph for this function:

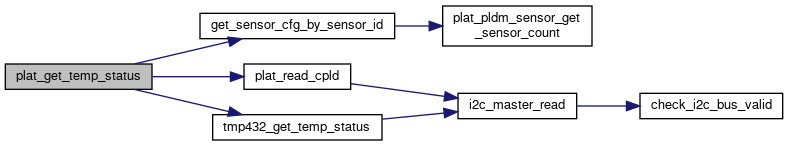

plat_get_temp_status()

bool plat_get_temp_status	(	uint8_t	rail,
		uint8_t *	temp_status
	)

Here is the call graph for this function:

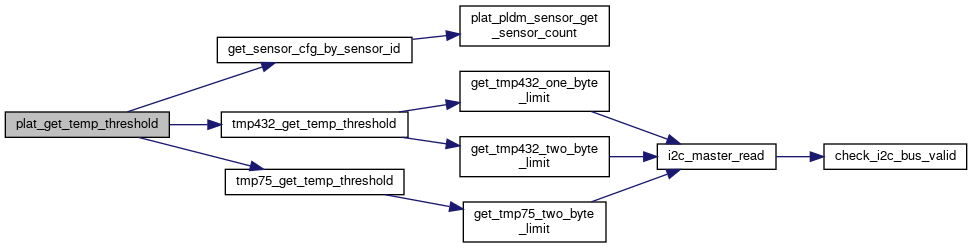

plat_get_temp_threshold()

bool plat_get_temp_threshold	(	uint8_t	temp_index_threshold_type,
		uint32_t *	millidegree_celsius
	)

Here is the call graph for this function:

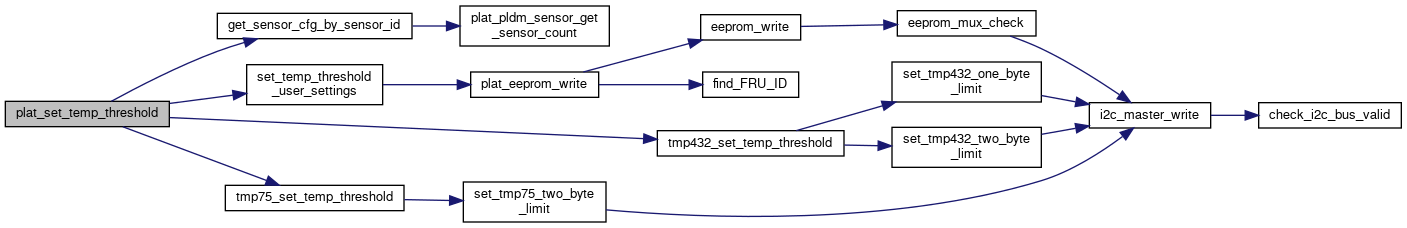

plat_set_temp_threshold()

bool plat_set_temp_threshold	(	uint8_t	temp_index_threshold_type,
		uint32_t *	millidegree_celsius,
		bool	is_default,
		bool	is_perm
	)

Here is the call graph for this function:

post_ubc_read()

bool post_ubc_read	(	sensor_cfg *	cfg,
		void *	args,
		int *	reading
	)

Here is the call graph for this function:

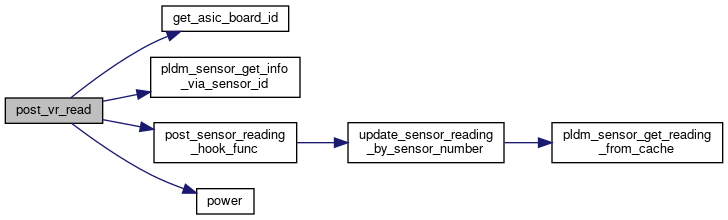

post_vr_read()

bool post_vr_read	(	sensor_cfg *	cfg,
		void *	args,
		int *const	reading
	)

Here is the call graph for this function:

power_level_send_event()

int power_level_send_event	(	bool	is_assert,
		int	ubc1_current,
		int	ubc2_current
	)

pwr_level_mutex_init()

void pwr_level_mutex_init

(

void

)

set_alert_level_to_default_or_user_setting()

void set_alert_level_to_default_or_user_setting	(	bool	is_default,
		int32_t	user_setting
	)

set_plat_temp_threshold()

bool set_plat_temp_threshold	(	uint8_t	temp_index_threshold_type,
		uint32_t *	millidegree_celsius,
		bool	is_default,
		bool	is_perm
	)

Here is the call graph for this function:

set_temp_threshold_user_settings()

bool set_temp_threshold_user_settings

(

void *

temp_threshold_user_settings

)

Here is the call graph for this function:

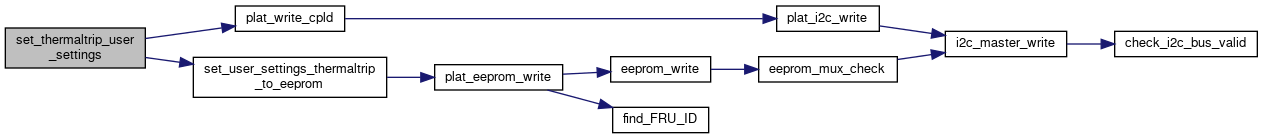

set_thermaltrip_user_settings()

bool set_thermaltrip_user_settings	(	bool	thermaltrip_enable,
		bool	is_perm
	)

Here is the call graph for this function:

set_uart_power_event_is_enable()

void set_uart_power_event_is_enable

(

bool

is_enable

)

set_user_settings_alert_level_to_eeprom()

int set_user_settings_alert_level_to_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

set_user_settings_delay_asic_rst_to_eeprom()

bool set_user_settings_delay_asic_rst_to_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

set_user_settings_delay_module_pg_to_eeprom()

bool set_user_settings_delay_module_pg_to_eeprom	(	void *	user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

set_user_settings_delay_pcie_perst_to_eeprom()

bool set_user_settings_delay_pcie_perst_to_eeprom	(	void *	user_settings,
		uint8_t	data_length,
		uint8_t	user_settings_offset
	)

Here is the call graph for this function:

set_user_settings_thermaltrip_to_eeprom()

bool set_user_settings_thermaltrip_to_eeprom	(	void *	thermaltrip_user_settings,
		uint8_t	data_length
	)

Here is the call graph for this function:

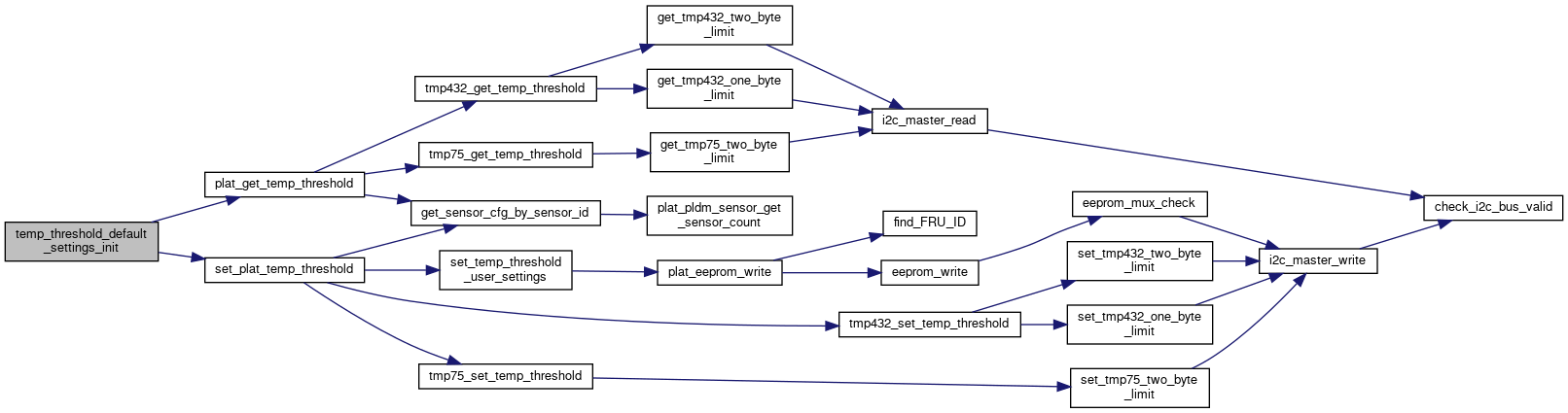

temp_threshold_default_settings_init()

bool temp_threshold_default_settings_init

(

void

)

Here is the call graph for this function:

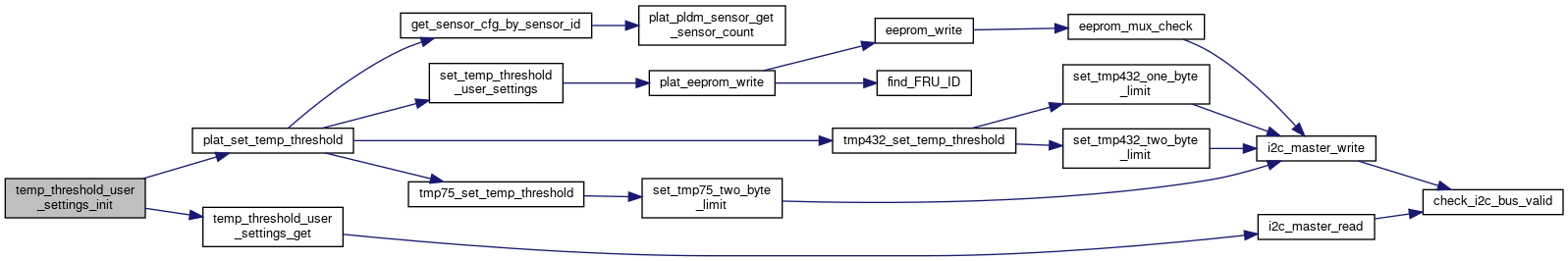

temp_threshold_user_settings_init()

bool temp_threshold_user_settings_init

(

void

)

Here is the call graph for this function:

ubc_vr_rail_enum_get()

bool ubc_vr_rail_enum_get	(	uint8_t *	name,
		uint8_t *	num
	)

ubc_vr_rail_name_get()

bool ubc_vr_rail_name_get	(	uint8_t	rail,
		uint8_t **	name
	)

user_settings_init()

void user_settings_init

(

void

)

Here is the call graph for this function:

Variable Documentation

alert_level_is_assert

bool alert_level_is_assert = false

alert_level_mA_default

int32_t alert_level_mA_default = 180000

alert_level_mA_user_setting

int32_t alert_level_mA_user_setting = 180000

temp_index_table

temp_mapping_sensor temp_index_table[]

Initial value:

= {
    { TEMP_INDEX_TOP_INLET, SENSOR_NUM_TOP_INLET_TEMP_C, "SB_RB_TOP_INLET_TEMP" },
    { TEMP_INDEX_BOT_INLET, SENSOR_NUM_BOT_INLET_TEMP_C, "SB_RB_BOT_INLET_TEMP" },
    { TEMP_INDEX_BOT_OUTLET, SENSOR_NUM_BOT_OUTLET_TEMP_C, "SB_RB_BOT_OUTLET_TEMP" },
    { TEMP_INDEX_ASIC_MEDHA0_SENSOR0, SENSOR_NUM_ASIC_MEDHA0_SENSOR0_TEMP_C,
      "SB_RB_ASIC_MEDHA0_SENSOR0_TEMP" },
    { TEMP_INDEX_ASIC_MEDHA0_SENSOR1, SENSOR_NUM_ASIC_MEDHA0_SENSOR1_TEMP_C,
      "SB_RB_ASIC_MEDHA0_SENSOR1_TEMP" },
    { TEMP_INDEX_ASIC_OWL_W, SENSOR_NUM_ASIC_OWL_W_TEMP_C, "SB_RB_ASIC_OWL_W_TEMP" },
    { TEMP_INDEX_ASIC_OWL_E, SENSOR_NUM_ASIC_OWL_E_TEMP_C, "SB_RB_ASIC_OWL_E_TEMP" },
    { TEMP_INDEX_ASIC_MEDHA1_SENSOR0, SENSOR_NUM_ASIC_MEDHA1_SENSOR0_TEMP_C,
      "SB_RB_ASIC_MEDHA1_SENSOR0_TEMP" },
    { TEMP_INDEX_ASIC_MEDHA1_SENSOR1, SENSOR_NUM_ASIC_MEDHA1_SENSOR1_TEMP_C,
      "SB_RB_ASIC_MEDHA1_SENSOR1_TEMP" },
    { TEMP_INDEX_ASIC_HAMSA_CRM, SENSOR_NUM_ASIC_HAMSA_CRM_TEMP_C,
      "SB_RB_ASIC_HAMSA_CRM_TEMP" },
    { TEMP_INDEX_ASIC_HAMSA_LS, SENSOR_NUM_ASIC_HAMSA_LS_TEMP_C, "SB_RB_ASIC_HAMSA_LS_TEMP" },
}

temp_index_threshold_type_table

temp_threshold_mapping_sensor temp_index_threshold_type_table[]

temp_threshold_default_settings

struct temp_threshold_user_settings_struct temp_threshold_default_settings = { 0 }

temp_threshold_user_settings

temp_threshold_user_settings_struct temp_threshold_user_settings = { 0 }

thermaltrip_user_settings

thermaltrip_user_settings_struct thermaltrip_user_settings = { 0xFF }

ubc_vr_power_table

ubc_vr_power_mapping_sensor ubc_vr_power_table[]
