plat_athena_shell.c File Reference

#include <stdlib.h>
#include <shell/shell.h>
#include <string.h>
#include <limits.h>
#include <stdio.h>
#include "hal_i2c.h"
#include "plat_i2c.h"
#include "sideband_commands_athena_open.h"

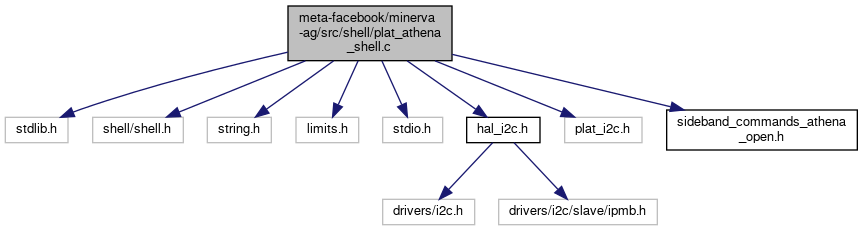

Include dependency graph for plat_athena_shell.c:

Classes
struct	efuse_target_offsets_t
struct	vtmon_data
	VTMON data structure containing all monitoring values. More...
struct	temp_monitor_data
	Temperature monitoring data structure. More...
struct	hbm_temp_data
	HBM temperature data structure. More...
struct	efuse_data
	Efuse data structure containing all efuse information. More...

Macros
#define	HBM0_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__0_THERMAL_HBM_SEL_TWO_REG__OFFSET
#define	HBM1_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__1_THERMAL_HBM_SEL_TWO_REG__OFFSET
#define	HBM2_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__2_THERMAL_HBM_SEL_TWO_REG__OFFSET
#define	HBM3_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__3_THERMAL_HBM_SEL_TWO_REG__OFFSET
#define	HBM4_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__4_THERMAL_HBM_SEL_TWO_REG__OFFSET
#define	HBM5_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__5_THERMAL_HBM_SEL_TWO_REG__OFFSET
#define	HBM_CHANNEL_DATA_SIZE   8
#define	HBM_MAX_CHANNELS   16
#define	HBM_MAX_HBMS   6
#define	OWL_MAX_COUNT   2
#define	VTMON_MAX_COUNT   2
#define	HBM_TEMP_MAX_COUNT   6
#define	EFUSE_MAX_TARGETS   3
#define	CMD_STATUS_FLAGS_NOT_READY_OFFSET   BRCMLIB_SB_STATUS_FLAGS_W_OFF
#define	CMD_STATUS_FLAGS_NOT_READY_BIT   6
#define	TEMP_VAL_MIN   0x00
#define	TEMP_VAL_MAX   0x7E
#define	TEMP_VAL_OVER127   0x7F
#define	TEMP_VAL_NO_DATA   0x80
#define	TEMP_VAL_SENSOR_FAIL   0x81
#define	TEMP_VAL_RESERVED_START   0x82
#define	TEMP_VAL_RESERVED_END   0xC3
#define	TEMP_VAL_BELOW_MINUS60   0xC4
#define	TEMP_VAL_TWOS_COMPLEMENT   0xC5
#define	TEMP_VAL_TWOS_COMPLEMENT_END   0xFF
#define	MONITORING_DETAILS_BASE_OFFSET   0xD07C4000
#define	ATHENA_NVME_MI_INDIRECT_ACCESS_SETTING_OFFSET   0xD3
#define	ATHENA_INDIRECT_ACCESS_ALL_REGION   0xFF
#define	ATHENA_INDIRECT_ACCESS_MONITORING_REGION   0x03
#define	ATHENA_INDIRECT_ACCESS_SETTING_LENGTH   0x06
#define	ATHENA_INDIRECT_ACCESS_SETTING_FLUSH_NO_INCR   0x10
#define	ATHENA_INDIRECT_ACCESS_SETTING_PEC_BYTE   0xFF
#define	ATHENA_I2C_BUS   I2C_BUS6
#define	ATHENA_I2C_ADDR_WRITE   0x6A
#define	ATHENA_I2C_ADDR_READ   0x6C
#define	ATHENA_MAX_READ_LENGTH   0xFF

Functions
int	read_efuse_data (int target_idx, struct efuse_data *efuse_data)
	Read efuse data from specified target. More...
void	print_efuse_field (const struct shell *shell, const char *field_name, const void *raw_data, size_t size, char format_type, uint64_t value)
	Print efuse field with raw hex and interpreted value. More...
void	print_efuse_data (const struct shell *shell, const char *target_name, const struct efuse_data *efuse_data)
	Print efuse data with formatted output. More...
void	athena_read_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_owl_vtmon_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_temp_monitor_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_hbm_temp_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_boot_status_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_efuse_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_version_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_current_temp_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_max_asic_temp_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_read_all_cmd (const struct shell *shell, size_t argc, char **argv)
void	athena_help_cmd (const struct shell *shell, size_t argc, char **argv)
	Display help information for all Athena commands. More...
	SHELL_STATIC_SUBCMD_SET_CREATE (sub_athena_cmds, SHELL_CMD(read, NULL, "low-level read command", athena_read_cmd), SHELL_CMD(owl_vtmon, NULL, "read OWL VTMON data command", athena_owl_vtmon_cmd), SHELL_CMD(temp_monitor, NULL, "read temperature monitoring data", athena_temp_monitor_cmd), SHELL_CMD(hbm_temp, NULL, "read HBM temperature data", athena_hbm_temp_cmd), SHELL_CMD(boot_status, NULL, "check Athena boot status", athena_boot_status_cmd), SHELL_CMD(efuse, NULL, "read efuse data", athena_efuse_cmd), SHELL_CMD(version, NULL, "read Athena version data", athena_version_cmd), SHELL_CMD(current_temp, NULL, "read Athena current temperature", athena_current_temp_cmd), SHELL_CMD(max_asic_temp, NULL, "read Athena max ASIC temperature", athena_max_asic_temp_cmd), SHELL_CMD(read_all, NULL, "read all Athena system data", athena_read_all_cmd), SHELL_CMD(help, NULL, "display help information for Athena commands", athena_help_cmd), SHELL_SUBCMD_SET_END)
	SHELL_CMD_REGISTER (athena, &sub_athena_cmds, "athena low-level commands", NULL)

Macro Definition Documentation

ATHENA_I2C_ADDR_READ

#define ATHENA_I2C_ADDR_READ   0x6C

ATHENA_I2C_ADDR_WRITE

#define ATHENA_I2C_ADDR_WRITE   0x6A

ATHENA_I2C_BUS

#define ATHENA_I2C_BUS   I2C_BUS6

ATHENA_INDIRECT_ACCESS_ALL_REGION

#define ATHENA_INDIRECT_ACCESS_ALL_REGION   0xFF

ATHENA_INDIRECT_ACCESS_MONITORING_REGION

#define ATHENA_INDIRECT_ACCESS_MONITORING_REGION   0x03

ATHENA_INDIRECT_ACCESS_SETTING_FLUSH_NO_INCR

#define ATHENA_INDIRECT_ACCESS_SETTING_FLUSH_NO_INCR   0x10

ATHENA_INDIRECT_ACCESS_SETTING_LENGTH

#define ATHENA_INDIRECT_ACCESS_SETTING_LENGTH   0x06

ATHENA_INDIRECT_ACCESS_SETTING_PEC_BYTE

#define ATHENA_INDIRECT_ACCESS_SETTING_PEC_BYTE   0xFF

ATHENA_MAX_READ_LENGTH

#define ATHENA_MAX_READ_LENGTH   0xFF

ATHENA_NVME_MI_INDIRECT_ACCESS_SETTING_OFFSET

#define ATHENA_NVME_MI_INDIRECT_ACCESS_SETTING_OFFSET   0xD3

CMD_STATUS_FLAGS_NOT_READY_BIT

#define CMD_STATUS_FLAGS_NOT_READY_BIT   6

CMD_STATUS_FLAGS_NOT_READY_OFFSET

#define CMD_STATUS_FLAGS_NOT_READY_OFFSET   BRCMLIB_SB_STATUS_FLAGS_W_OFF

EFUSE_MAX_TARGETS

#define EFUSE_MAX_TARGETS   3

HBM0_DATA_OFFSET

#define HBM0_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__0_THERMAL_HBM_SEL_TWO_REG__OFFSET

HBM1_DATA_OFFSET

#define HBM1_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__1_THERMAL_HBM_SEL_TWO_REG__OFFSET

HBM2_DATA_OFFSET

#define HBM2_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__2_THERMAL_HBM_SEL_TWO_REG__OFFSET

HBM3_DATA_OFFSET

#define HBM3_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__3_THERMAL_HBM_SEL_TWO_REG__OFFSET

HBM4_DATA_OFFSET

#define HBM4_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__4_THERMAL_HBM_SEL_TWO_REG__OFFSET

HBM5_DATA_OFFSET

#define HBM5_DATA_OFFSET   BRCMLIB__MONITORING_DETAILS_HBM__5_THERMAL_HBM_SEL_TWO_REG__OFFSET

HBM_CHANNEL_DATA_SIZE

#define HBM_CHANNEL_DATA_SIZE   8

HBM_MAX_CHANNELS

#define HBM_MAX_CHANNELS   16

HBM_MAX_HBMS

#define HBM_MAX_HBMS   6

HBM_TEMP_MAX_COUNT

#define HBM_TEMP_MAX_COUNT   6

MONITORING_DETAILS_BASE_OFFSET

#define MONITORING_DETAILS_BASE_OFFSET   0xD07C4000

OWL_MAX_COUNT

#define OWL_MAX_COUNT   2

TEMP_VAL_BELOW_MINUS60

#define TEMP_VAL_BELOW_MINUS60   0xC4

TEMP_VAL_MAX

#define TEMP_VAL_MAX   0x7E

TEMP_VAL_MIN

#define TEMP_VAL_MIN   0x00

TEMP_VAL_NO_DATA

#define TEMP_VAL_NO_DATA   0x80

TEMP_VAL_OVER127

#define TEMP_VAL_OVER127   0x7F

TEMP_VAL_RESERVED_END

#define TEMP_VAL_RESERVED_END   0xC3

TEMP_VAL_RESERVED_START

#define TEMP_VAL_RESERVED_START   0x82

TEMP_VAL_SENSOR_FAIL

#define TEMP_VAL_SENSOR_FAIL   0x81

TEMP_VAL_TWOS_COMPLEMENT

#define TEMP_VAL_TWOS_COMPLEMENT   0xC5

TEMP_VAL_TWOS_COMPLEMENT_END

#define TEMP_VAL_TWOS_COMPLEMENT_END   0xFF

VTMON_MAX_COUNT

#define VTMON_MAX_COUNT   2

Function Documentation

athena_boot_status_cmd()

void athena_boot_status_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

athena_current_temp_cmd()

void athena_current_temp_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

athena_efuse_cmd()

void athena_efuse_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

Here is the call graph for this function:

athena_hbm_temp_cmd()

void athena_hbm_temp_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

athena_help_cmd()

void athena_help_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

Display help information for all Athena commands.

Parameters

shell	Shell instance
argc	Argument count
argv	Argument values

athena_max_asic_temp_cmd()

void athena_max_asic_temp_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

athena_owl_vtmon_cmd()

void athena_owl_vtmon_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

athena_read_all_cmd()

void athena_read_all_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

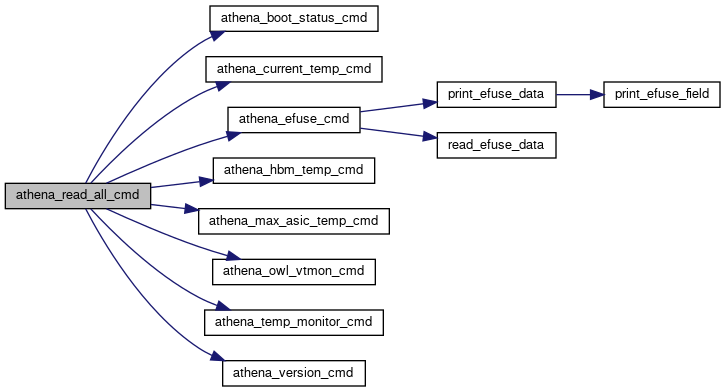

Here is the call graph for this function:

athena_read_cmd()

void athena_read_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

athena_temp_monitor_cmd()

void athena_temp_monitor_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

athena_version_cmd()

void athena_version_cmd	(	const struct shell *	shell,
		size_t	argc,
		char **	argv
	)

print_efuse_data()

void print_efuse_data	(	const struct shell *	shell,
		const char *	target_name,
		const struct efuse_data *	efuse_data
	)

Print efuse data with formatted output.

Parameters

shell	Shell instance
target_name	Target name
efuse_data	Efuse data structure

Here is the call graph for this function:

print_efuse_field()

void print_efuse_field	(	const struct shell *	shell,
		const char *	field_name,
		const void *	raw_data,
		size_t	size,
		char	format_type,
		uint64_t	value
	)

Print efuse field with raw hex and interpreted value.

Parameters

shell	Shell instance
field_name	Field name to display
raw_data	Pointer to raw data
size	Size of raw data in bytes
format_type	Type of formatting: 'c' for ASCII char, 's' for ASCII string, 'd' for decimal, 'M' for MHz
value	Optional decimal value for non-ASCII fields

read_efuse_data()

int read_efuse_data	(	int	target_idx,
		struct efuse_data *	efuse_data
	)

Read efuse data from specified target.

Parameters

target_idx	Target index (0=athena, 1=owl_0, 2=owl_1)
efuse_data	Pointer to efuse data structure

Returns

0 on success, negative error code on failure

SHELL_CMD_REGISTER()

SHELL_CMD_REGISTER	(	athena	,
		&	sub_athena_cmds,
		"athena low-level commands"	,
		NULL
	)

SHELL_STATIC_SUBCMD_SET_CREATE()

SHELL_STATIC_SUBCMD_SET_CREATE	(	sub_athena_cmds	,
		SHELL_CMD(read, NULL, "low-level read command", athena_read_cmd)	,
		SHELL_CMD(owl_vtmon, NULL, "read OWL VTMON data command", athena_owl_vtmon_cmd)	,
		SHELL_CMD(temp_monitor, NULL, "read temperature monitoring data", athena_temp_monitor_cmd)	,
		SHELL_CMD(hbm_temp, NULL, "read HBM temperature data", athena_hbm_temp_cmd)	,
		SHELL_CMD(boot_status, NULL, "check Athena boot status", athena_boot_status_cmd)	,
		SHELL_CMD(efuse, NULL, "read efuse data", athena_efuse_cmd)	,
		SHELL_CMD(version, NULL, "read Athena version data", athena_version_cmd)	,
		SHELL_CMD(current_temp, NULL, "read Athena current temperature", athena_current_temp_cmd)	,
		SHELL_CMD(max_asic_temp, NULL, "read Athena max ASIC temperature", athena_max_asic_temp_cmd)	,
		SHELL_CMD(read_all, NULL, "read all Athena system data", athena_read_all_cmd)	,
		SHELL_CMD(help, NULL, "display help information for Athena commands", athena_help_cmd)	,
		SHELL_SUBCMD_SET_END
	)
