plat_adc.h File Reference

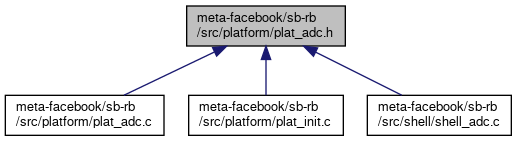

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	ADC_AVERGE_TIMES_MIN   1
#define	ADC_AVERGE_TIMES_MAX   1000
#define	ADI_AD4058   0x0
#define	TIC_ADS7066   0x1

Enumerations
enum	{   ADC_IDX_MEDHA0_1 = 0 , ADC_IDX_MEDHA1_1 , ADC_IDX_MEDHA0_2 , ADC_IDX_MEDHA1_2 ,   ADC_IDX_MAX }
enum	{ ADC_RB_IDX_MEDHA0 = 0 , ADC_RB_IDX_MEDHA1 , ADC_RB_IDX_MAX }

Functions
uint8_t	get_adc_good_status (uint8_t idx)
uint8_t	get_final_ucr_status ()
void	adc_poll_init ()
void	plat_adc_init (void)
void	adc_set_poll_flag (uint8_t onoff)
bool	adc_get_poll_flag ()
float	adc_raw_mv_to_apms (uint16_t v, float vref)
uint16_t	get_adc_averge_val (uint8_t idx)
void	adc_set_averge_times (uint8_t idx, uint16_t time)
uint16_t	get_adc_averge_times (uint8_t idx)
uint16_t	get_adc_ucr (uint8_t idx)
void	set_adc_ucr (uint8_t idx, uint16_t ucr)
bool	get_adc_ucr_status (uint8_t idx)
void	plat_adc_rainbow_init (void)
uint8_t	get_adc_type ()
float	get_ads7066_vref ()
float	get_ad4058_vref ()
float	get_adc_vr_pwr (uint8_t idx)
float	get_vr_vol_sum (uint8_t idx)
uint16_t	float_voltage_transfer_to_uint16 (float temp_voltage_value)
uint16_t *	get_adc_buf (uint16_t idx)
float	uint16_voltage_transfer_to_float (uint16_t temp_voltage_value)
int	ads7066_read_reg (uint8_t reg, uint8_t idx, uint8_t *out_data)
int	ads7066_write_reg (uint8_t reg, uint8_t write_val, uint8_t idx)
int	ad4058_read_reg (uint8_t reg, uint8_t idx, uint8_t *out_data)
int	ad4058_write_reg (uint8_t reg, uint8_t write_val, uint8_t idx)
uint16_t *	get_vr_buf (uint16_t idx)
void	read_adc_info ()

Macro Definition Documentation

ADC_AVERGE_TIMES_MAX

#define ADC_AVERGE_TIMES_MAX   1000

ADC_AVERGE_TIMES_MIN

#define ADC_AVERGE_TIMES_MIN   1

ADI_AD4058

#define ADI_AD4058   0x0

TIC_ADS7066

#define TIC_ADS7066   0x1

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
ADC_IDX_MEDHA0_1
ADC_IDX_MEDHA1_1
ADC_IDX_MEDHA0_2
ADC_IDX_MEDHA1_2
ADC_IDX_MAX

anonymous enum

anonymous enum

Enumerator
ADC_RB_IDX_MEDHA0
ADC_RB_IDX_MEDHA1
ADC_RB_IDX_MAX

Function Documentation

ad4058_read_reg()

int ad4058_read_reg	(	uint8_t	reg,
		uint8_t	idx,
		uint8_t *	out_data
	)

ad4058_write_reg()

int ad4058_write_reg	(	uint8_t	reg,
		uint8_t	write_val,
		uint8_t	idx
	)

adc_get_poll_flag()

bool adc_get_poll_flag

(

)

adc_poll_init()

void adc_poll_init

(

)

adc_raw_mv_to_apms()

float adc_raw_mv_to_apms	(	uint16_t	v,
		float	vref
	)

Here is the call graph for this function:

adc_set_averge_times()

void adc_set_averge_times	(	uint8_t	idx,
		uint16_t	time
	)

Here is the call graph for this function:

adc_set_poll_flag()

void adc_set_poll_flag

(

uint8_t

onoff

)

ads7066_read_reg()

int ads7066_read_reg	(	uint8_t	reg,
		uint8_t	idx,
		uint8_t *	out_data
	)

ads7066_write_reg()

int ads7066_write_reg	(	uint8_t	reg,
		uint8_t	write_val,
		uint8_t	idx
	)

float_voltage_transfer_to_uint16()

uint16_t float_voltage_transfer_to_uint16

(

float

temp_voltage_value

)

get_ad4058_vref()

float get_ad4058_vref

(

)

get_adc_averge_times()

uint16_t get_adc_averge_times

(

uint8_t

idx

)

get_adc_averge_val()

uint16_t get_adc_averge_val

(

uint8_t

idx

)

get_adc_buf()

uint16_t * get_adc_buf

(

uint16_t

idx

)

get_adc_good_status()

uint8_t get_adc_good_status

(

uint8_t

idx

)

get_adc_type()

uint8_t get_adc_type

(

)

get_adc_ucr()

uint16_t get_adc_ucr

(

uint8_t

idx

)

get_adc_ucr_status()

bool get_adc_ucr_status

(

uint8_t

idx

)

get_adc_vr_pwr()

float get_adc_vr_pwr

(

uint8_t

idx

)

get_ads7066_vref()

float get_ads7066_vref

(

)

get_final_ucr_status()

uint8_t get_final_ucr_status

(

)

get_vr_buf()

uint16_t * get_vr_buf

(

uint16_t

idx

)

get_vr_vol_sum()

float get_vr_vol_sum

(

uint8_t

idx

)

plat_adc_init()

void plat_adc_init

(

void

)

plat_adc_rainbow_init()

void plat_adc_rainbow_init

(

void

)

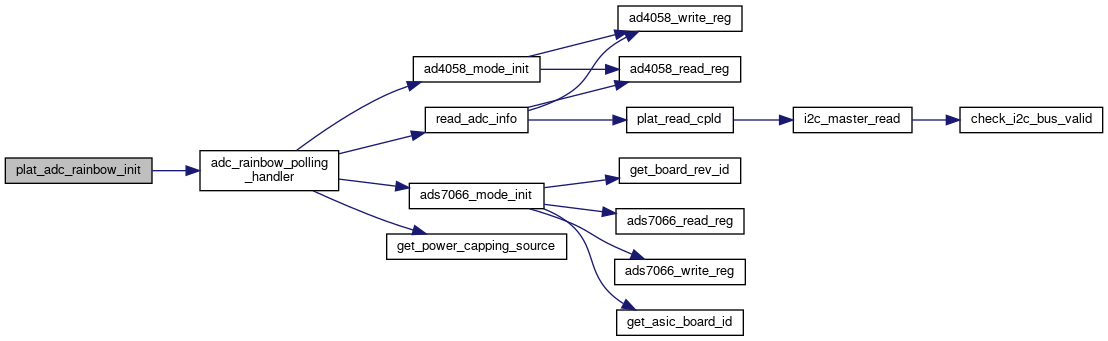

Here is the call graph for this function:

read_adc_info()

void read_adc_info

(

)

Here is the call graph for this function:

set_adc_ucr()

void set_adc_ucr	(	uint8_t	idx,
		uint16_t	ucr
	)

uint16_voltage_transfer_to_float()

float uint16_voltage_transfer_to_float

(

uint16_t

temp_voltage_value

)
