#include <stdio.h>#include <stdlib.h>#include <stdbool.h>#include <stdint.h>#include <string.h>#include <zephyr.h>#include <sys/util.h>#include <sys/byteorder.h>#include <logging/log.h>#include "libutil.h"#include "sensor.h"#include "hal_i2c.h"#include "pex90144.h"

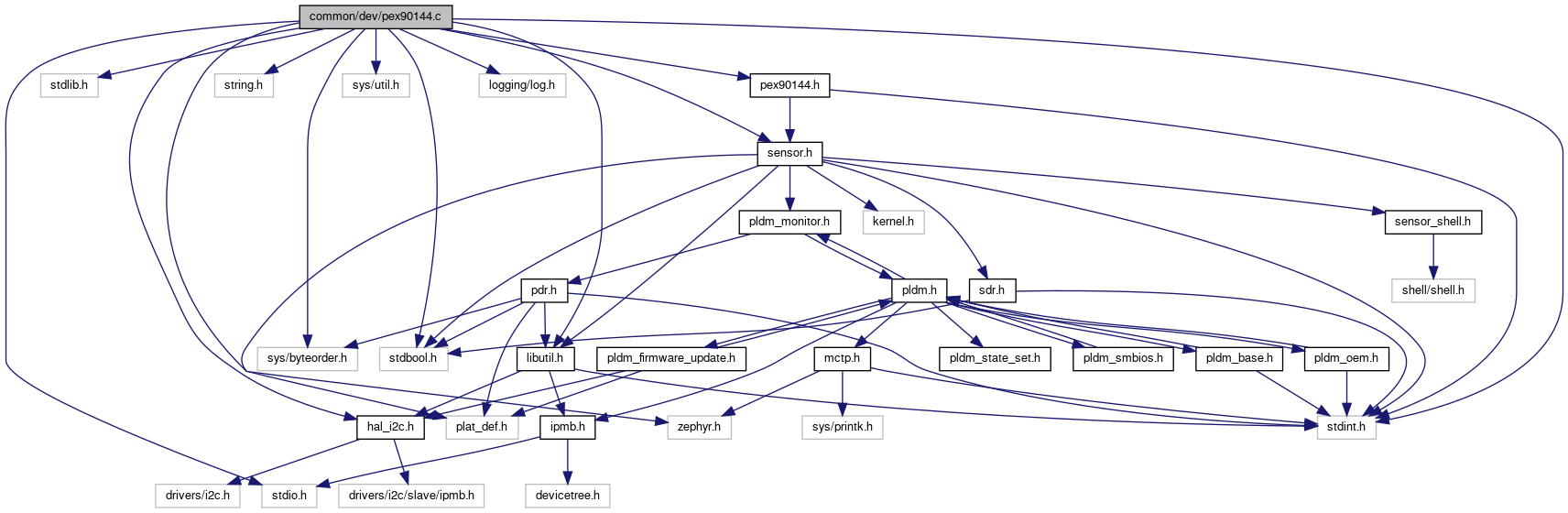

Include dependency graph for pex90144.c:
Classes | |
| struct | __packed |
Macros | |
| #define | BRCM_CMD_READ 0b111 |
| #define | BRCM_CMD_WRITE 0b011 |
| #define | BRCM_CHIME_AXI_CSR_ADDR 0x003F0100 |
| #define | BRCM_CHIME_AXI_CSR_DATA 0x003F0104 |
| #define | BRCM_CHIME_AXI_CSR_CTL 0x003F0108 |
| #define | BRCM_REG_SMB_WR_CMD 0xFFE00004 |
| #define | BRCM_REG_SMB_WR_DATA 0xFFE00008 |
| #define | BRCM_REG_SMB_RD_CMD 0xFFE0000C |
| #define | BRCM_REG_SMB_RD_DATA 0xFFE00010 |
| #define | BRCM_REG_TEMP_SNR0_CTL 0xFFE78504 |
| #define | BRCM_REG_TEMP_SNR0_STAT 0xFFE78538 |
| #define | BRCM_REG_CHIP_ID 0xFFF00000 |
| #define | BRCM_REG_CHIP_REVID 0xFFF00004 |
| #define | BRCM_REG_SBR_ID 0xFFF00008 |
| #define | BRCM_REG_FLASH_VER 0x100005f8 |
| #define | BRCM_REG_CCR_SYSTEM_ERR 0xFFF000A8 |
| #define | BRCM_VAL_TEMP_SNR0_CTL_RESET 0x000653E8 |
Functions | |
| LOG_MODULE_REGISTER (dev_pex90144) | |
| pex90144_unit * | find_pex90144_from_idx (uint8_t idx) |
| uint8_t | pex90144_access_engine (uint8_t bus, uint8_t addr, uint8_t idx, pex_access_t key, uint32_t *resp) |
| uint8_t | pex90144_read (sensor_cfg *cfg, int *reading) |
| uint8_t | pex90144_init (sensor_cfg *cfg) |
Macro Definition Documentation
◆ BRCM_CHIME_AXI_CSR_ADDR
| #define BRCM_CHIME_AXI_CSR_ADDR 0x003F0100 |
◆ BRCM_CHIME_AXI_CSR_CTL
| #define BRCM_CHIME_AXI_CSR_CTL 0x003F0108 |
◆ BRCM_CHIME_AXI_CSR_DATA
| #define BRCM_CHIME_AXI_CSR_DATA 0x003F0104 |
◆ BRCM_CMD_READ
| #define BRCM_CMD_READ 0b111 |
◆ BRCM_CMD_WRITE
| #define BRCM_CMD_WRITE 0b011 |
◆ BRCM_REG_CCR_SYSTEM_ERR
| #define BRCM_REG_CCR_SYSTEM_ERR 0xFFF000A8 |
◆ BRCM_REG_CHIP_ID
| #define BRCM_REG_CHIP_ID 0xFFF00000 |
◆ BRCM_REG_CHIP_REVID
| #define BRCM_REG_CHIP_REVID 0xFFF00004 |
◆ BRCM_REG_FLASH_VER
| #define BRCM_REG_FLASH_VER 0x100005f8 |
◆ BRCM_REG_SBR_ID
| #define BRCM_REG_SBR_ID 0xFFF00008 |
◆ BRCM_REG_SMB_RD_CMD
| #define BRCM_REG_SMB_RD_CMD 0xFFE0000C |
◆ BRCM_REG_SMB_RD_DATA
| #define BRCM_REG_SMB_RD_DATA 0xFFE00010 |
◆ BRCM_REG_SMB_WR_CMD
| #define BRCM_REG_SMB_WR_CMD 0xFFE00004 |
◆ BRCM_REG_SMB_WR_DATA
| #define BRCM_REG_SMB_WR_DATA 0xFFE00008 |
◆ BRCM_REG_TEMP_SNR0_CTL
| #define BRCM_REG_TEMP_SNR0_CTL 0xFFE78504 |
◆ BRCM_REG_TEMP_SNR0_STAT
| #define BRCM_REG_TEMP_SNR0_STAT 0xFFE78538 |
◆ BRCM_VAL_TEMP_SNR0_CTL_RESET
| #define BRCM_VAL_TEMP_SNR0_CTL_RESET 0x000653E8 |
Function Documentation
◆ find_pex90144_from_idx()
| pex90144_unit * find_pex90144_from_idx | ( | uint8_t | idx | ) |
◆ LOG_MODULE_REGISTER()
| LOG_MODULE_REGISTER | ( | dev_pex90144 | ) |
◆ pex90144_access_engine()
| uint8_t pex90144_access_engine | ( | uint8_t | bus, |
| uint8_t | addr, | ||
| uint8_t | idx, | ||
| pex_access_t | key, | ||
| uint32_t * | resp | ||
| ) |
Here is the call graph for this function:
◆ pex90144_init()
| uint8_t pex90144_init | ( | sensor_cfg * | cfg | ) |
Here is the call graph for this function:
◆ pex90144_read()
| uint8_t pex90144_read | ( | sensor_cfg * | cfg, |
| int * | reading | ||
| ) |
Here is the call graph for this function:
