plat_pmic.h File Reference

#include <stdint.h>

Include dependency graph for plat_pmic.h:

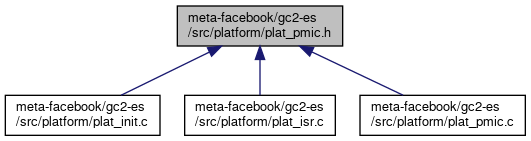

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	MONITOR_PMIC_ERROR_STACK_SIZE   4096
#define	MONITOR_PMIC_ERROR_TIME_MS   (3 * 1000)
#define	MAX_LEN_GET_PMIC_ERROR_INFO   6
#define	MAX_LEN_I3C_GET_PMIC_ERROR_INFO   7
#define	MAX_COUNT_DIMM   6
#define	MAX_COUNT_PMIC_ERROR_TYPE   17
#define	I3C_MUX_TO_BIC   0x1
#define	I3C_MUX_TO_CPU   0x0
#define	DIMM_MUX_TO_DIMM_A0A1A3   0x0
#define	DIMM_MUX_TO_DIMM_A4A6A7   0x1
#define	CL_CPLD_BMC_CHANNEL_ADDR   0x1E
#define	PMIC_FAULT_STATUS_OFFSET   0x0B
#define	DIMM_I3C_MUX_CONTROL_OFFSET   0x0B

Enumerations
enum	DIMM_ID {   DIMM_ID_A0 = 0 , DIMM_ID_A2 , DIMM_ID_A3 , DIMM_ID_A4 ,   DIMM_ID_A6 , DIMM_ID_A7 , DIMM_ID_A0 = 0 , DIMM_ID_A2 ,   DIMM_ID_A3 , DIMM_ID_A4 , DIMM_ID_A6 , DIMM_ID_A7 ,   DIMM_ID_UNKNOWN = 0xff , DIMM_ID_A0 = 0 , DIMM_ID_A1 , DIMM_ID_A2 ,   DIMM_ID_A3 , DIMM_ID_A4 , DIMM_ID_A5 , DIMM_ID_A6 ,   DIMM_ID_A7 , DIMM_ID_UNKNOWN = 0xff , DIMM_ID_A , DIMM_ID_B ,   DIMM_ID_C , DIMM_ID_D , DIMM_ID_E , DIMM_ID_F ,   DIMM_ID_G , DIMM_ID_H , DIMM_ID_I , DIMM_ID_J ,   DIMM_ID_K , DIMM_ID_L , DIMM_ID_MAX , DIMM_ID_UNKNOWN = 0xff }
enum	READ_PMIC_ERROR_PATH { READ_PMIC_ERROR_VIA_ME , READ_PMIC_ERROR_VIA_I3C , READ_PMIC_ERROR_VIA_ME , READ_PMIC_ERROR_VIA_I3C }

Functions
void	start_monitor_pmic_error_thread ()
void	monitor_pmic_error_handler ()
int	compare_pmic_error (uint8_t dimm_id, uint8_t *pmic_err_data, uint8_t pmic_err_data_len, uint8_t read_path)
int	get_dimm_info (uint8_t dimm_id, uint8_t *bus, uint8_t *addr)
void	add_pmic_error_sel (uint8_t dimm_id, uint8_t error_type)
int	switch_i3c_dimm_mux (uint8_t i3c_mux_position, uint8_t dimm_mux_position)
void	read_pmic_error_via_i3c ()
int	get_pmic_fault_status ()

Macro Definition Documentation

CL_CPLD_BMC_CHANNEL_ADDR

#define CL_CPLD_BMC_CHANNEL_ADDR   0x1E

DIMM_I3C_MUX_CONTROL_OFFSET

#define DIMM_I3C_MUX_CONTROL_OFFSET   0x0B

DIMM_MUX_TO_DIMM_A0A1A3

#define DIMM_MUX_TO_DIMM_A0A1A3   0x0

DIMM_MUX_TO_DIMM_A4A6A7

#define DIMM_MUX_TO_DIMM_A4A6A7   0x1

I3C_MUX_TO_BIC

#define I3C_MUX_TO_BIC   0x1

I3C_MUX_TO_CPU

#define I3C_MUX_TO_CPU   0x0

MAX_COUNT_DIMM

#define MAX_COUNT_DIMM   6

MAX_COUNT_PMIC_ERROR_TYPE

#define MAX_COUNT_PMIC_ERROR_TYPE   17

MAX_LEN_GET_PMIC_ERROR_INFO

#define MAX_LEN_GET_PMIC_ERROR_INFO   6

MAX_LEN_I3C_GET_PMIC_ERROR_INFO

#define MAX_LEN_I3C_GET_PMIC_ERROR_INFO   7

MONITOR_PMIC_ERROR_STACK_SIZE

#define MONITOR_PMIC_ERROR_STACK_SIZE   4096

MONITOR_PMIC_ERROR_TIME_MS

#define MONITOR_PMIC_ERROR_TIME_MS   (3 * 1000)

PMIC_FAULT_STATUS_OFFSET

#define PMIC_FAULT_STATUS_OFFSET   0x0B

Enumeration Type Documentation

DIMM_ID

enum DIMM_ID

Enumerator
DIMM_ID_A0
DIMM_ID_A2
DIMM_ID_A3
DIMM_ID_A4
DIMM_ID_A6
DIMM_ID_A7
DIMM_ID_A0
DIMM_ID_A2
DIMM_ID_A3
DIMM_ID_A4
DIMM_ID_A6
DIMM_ID_A7
DIMM_ID_UNKNOWN
DIMM_ID_A0
DIMM_ID_A1
DIMM_ID_A2
DIMM_ID_A3
DIMM_ID_A4
DIMM_ID_A5
DIMM_ID_A6
DIMM_ID_A7
DIMM_ID_UNKNOWN
DIMM_ID_A
DIMM_ID_B
DIMM_ID_C
DIMM_ID_D
DIMM_ID_E
DIMM_ID_F
DIMM_ID_G
DIMM_ID_H
DIMM_ID_I
DIMM_ID_J
DIMM_ID_K
DIMM_ID_L
DIMM_ID_MAX
DIMM_ID_UNKNOWN

READ_PMIC_ERROR_PATH

enum READ_PMIC_ERROR_PATH

Enumerator
READ_PMIC_ERROR_VIA_ME
READ_PMIC_ERROR_VIA_I3C
READ_PMIC_ERROR_VIA_ME
READ_PMIC_ERROR_VIA_I3C

Function Documentation

add_pmic_error_sel()

void add_pmic_error_sel	(	uint8_t	dimm_id,
		uint8_t	error_type
	)

compare_pmic_error()

int compare_pmic_error	(	uint8_t	dimm_id,
		uint8_t *	pmic_err_data,
		uint8_t	pmic_err_data_len,
		uint8_t	read_path
	)

get_dimm_info()

int get_dimm_info	(	uint8_t	dimm_id,
		uint8_t *	bus,
		uint8_t *	addr
	)

get_pmic_fault_status()

int get_pmic_fault_status

(

)

monitor_pmic_error_handler()

void monitor_pmic_error_handler

(

)

read_pmic_error_via_i3c()

void read_pmic_error_via_i3c

(

)

start_monitor_pmic_error_thread()

void start_monitor_pmic_error_thread

(

)

switch_i3c_dimm_mux()

int switch_i3c_dimm_mux	(	uint8_t	i3c_mux_position,
		uint8_t	dimm_mux_position
	)
