#include <stdio.h>#include <string.h>#include <drivers/peci.h>#include <logging/log.h>#include "pmic.h"#include "ipmi.h"#include "sensor.h"#include "libutil.h"#include "plat_i2c.h"#include "plat_gpio.h"#include "plat_hook.h"#include "plat_sensor_table.h"#include "pmbus.h"#include "intel_peci.h"#include "intel_dimm.h"#include "hal_peci.h"#include "power_status.h"#include "xdpe15284.h"#include "util_sys.h"#include "plat_class.h"#include "i2c-mux-tca9548.h"

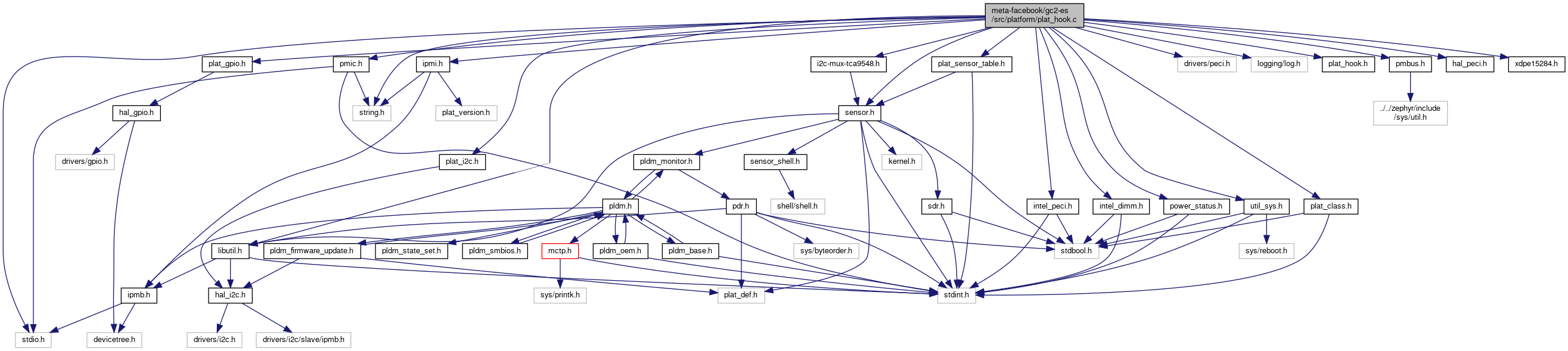

Include dependency graph for plat_hook.c:
Macros | |
| #define | ADJUST_ADM1278_POWER(x) (x * 0.98) |
| #define | ADJUST_ADM1278_CURRENT(x) ((x * 0.98) + 0.1) |
| #define | ADJUST_ADM1281_CURRENT(x) ((x * 0.98) + 0.4) |
| #define | ADJUST_LTC4286_POWER(x) ((x * 0.97) - 8) |
| #define | ADJUST_LTC4286_CURRENT(x) ((x * 0.97) - 0.4) |
| #define | ADJUST_LTC4282_POWER(x) ((x * 0.98) - 0.2) |
| #define | ADJUST_LTC4282_CURRENT(x) ((x * 0.99) - 0.2) |
Functions | |
| LOG_MODULE_REGISTER (plat_hook) | |
| bool | pre_isl69259_read (sensor_cfg *cfg, void *args) |
| bool | pre_nvme_read (sensor_cfg *cfg, void *args) |
| bool | pre_vol_bat3v_read (sensor_cfg *cfg, void *args) |
| bool | pre_intel_peci_dimm_read (sensor_cfg *cfg, void *args) |
| bool | post_vol_bat3v_read (sensor_cfg *cfg, void *args, int *reading) |
| bool | post_cpu_margin_read (sensor_cfg *cfg, void *args, int *reading) |
| bool | post_adm1278_power_read (sensor_cfg *cfg, void *args, int *reading) |
| bool | post_adm1278_current_read (sensor_cfg *cfg, void *args, int *reading) |
| bool | post_ltc4286_read (sensor_cfg *cfg, void *args, int *reading) |
| bool | post_ltc4282_read (sensor_cfg *cfg, void *args, int *reading) |
Variables | |
| adc_asd_init_arg | adc_asd_init_args [] = { [0] = { .is_init = false } } |
| adm1278_init_arg | adm1278_init_args [] |
| mp5990_init_arg | mp5990_init_args [] |
| ltc4286_init_arg | ltc4286_init_args [] |
| ltc4282_init_arg | ltc4282_init_args [] |
| pmic_init_arg | pmic_init_args [] |
| max16550a_init_arg | max16550a_init_args [] = { [0] = { .r_load = 14000 } } |
| struct tca9548 | mux_conf_addr_0xe2 [8] |
| isl69259_pre_proc_arg | isl69259_pre_read_args [] |
| dimm_pre_proc_arg | dimm_pre_proc_args [] |
Macro Definition Documentation
◆ ADJUST_ADM1278_CURRENT
| #define ADJUST_ADM1278_CURRENT | ( | x | ) | ((x * 0.98) + 0.1) |
◆ ADJUST_ADM1278_POWER
| #define ADJUST_ADM1278_POWER | ( | x | ) | (x * 0.98) |
◆ ADJUST_ADM1281_CURRENT
| #define ADJUST_ADM1281_CURRENT | ( | x | ) | ((x * 0.98) + 0.4) |
◆ ADJUST_LTC4282_CURRENT
| #define ADJUST_LTC4282_CURRENT | ( | x | ) | ((x * 0.99) - 0.2) |
◆ ADJUST_LTC4282_POWER
| #define ADJUST_LTC4282_POWER | ( | x | ) | ((x * 0.98) - 0.2) |
◆ ADJUST_LTC4286_CURRENT
| #define ADJUST_LTC4286_CURRENT | ( | x | ) | ((x * 0.97) - 0.4) |
◆ ADJUST_LTC4286_POWER
| #define ADJUST_LTC4286_POWER | ( | x | ) | ((x * 0.97) - 8) |
Function Documentation
◆ LOG_MODULE_REGISTER()
| LOG_MODULE_REGISTER | ( | plat_hook | ) |
◆ post_adm1278_current_read()
| bool post_adm1278_current_read | ( | sensor_cfg * | cfg, |
| void * | args, | ||
| int * | reading | ||
| ) |
Here is the call graph for this function:
◆ post_adm1278_power_read()
| bool post_adm1278_power_read | ( | sensor_cfg * | cfg, |
| void * | args, | ||
| int * | reading | ||
| ) |
Here is the call graph for this function:
◆ post_cpu_margin_read()
| bool post_cpu_margin_read | ( | sensor_cfg * | cfg, |
| void * | args, | ||
| int * | reading | ||
| ) |
Here is the call graph for this function:
◆ post_ltc4282_read()
| bool post_ltc4282_read | ( | sensor_cfg * | cfg, |
| void * | args, | ||
| int * | reading | ||
| ) |
Here is the call graph for this function:
◆ post_ltc4286_read()
| bool post_ltc4286_read | ( | sensor_cfg * | cfg, |
| void * | args, | ||
| int * | reading | ||
| ) |
Here is the call graph for this function:
◆ post_vol_bat3v_read()
| bool post_vol_bat3v_read | ( | sensor_cfg * | cfg, |
| void * | args, | ||
| int * | reading | ||
| ) |
Here is the call graph for this function:
◆ pre_intel_peci_dimm_read()
| bool pre_intel_peci_dimm_read | ( | sensor_cfg * | cfg, |
| void * | args | ||
| ) |
Here is the call graph for this function:
◆ pre_isl69259_read()
| bool pre_isl69259_read | ( | sensor_cfg * | cfg, |
| void * | args | ||
| ) |
Here is the call graph for this function:
◆ pre_nvme_read()
| bool pre_nvme_read | ( | sensor_cfg * | cfg, |
| void * | args | ||
| ) |
Here is the call graph for this function:
◆ pre_vol_bat3v_read()
| bool pre_vol_bat3v_read | ( | sensor_cfg * | cfg, |
| void * | args | ||
| ) |
Here is the call graph for this function:
Variable Documentation
◆ adc_asd_init_args
| adc_asd_init_arg adc_asd_init_args[] = { [0] = { .is_init = false } } |
◆ adm1278_init_args
| adm1278_init_arg adm1278_init_args[] |
Initial value:
= {
[0] = { .is_init = false, .config = { 0x3F1C }, .r_sense = 0.25 }
}
◆ dimm_pre_proc_args
| dimm_pre_proc_arg dimm_pre_proc_args[] |
Initial value:
= {
[0] = { .is_present_checked = false }, [1] = { .is_present_checked = false },
[2] = { .is_present_checked = false }, [3] = { .is_present_checked = false },
[4] = { .is_present_checked = false }, [5] = { .is_present_checked = false }
}
◆ isl69259_pre_read_args
| isl69259_pre_proc_arg isl69259_pre_read_args[] |
Initial value:
= {
[0] = { 0x0 },
[1] = { 0x1 },
}
◆ ltc4282_init_args
| ltc4282_init_arg ltc4282_init_args[] |
Initial value:
= { [0] = { .is_init = false,
.r_sense_mohm = 0.25,
.is_register_setting_needed = 0x01,
.ilim_adjust = { 0x13 } },
[1] = { .is_init = false,
.r_sense_mohm = 0.25,
.is_register_setting_needed = 0x01,
.ilim_adjust = { 0x53 } } }
◆ ltc4286_init_args
| ltc4286_init_arg ltc4286_init_args[] |
Initial value:
= {
[0] = { .is_init = false, .r_sense_mohm = 0.25, .mfr_config_1 = { 0x1570 } },
[1] = { .is_init = false, .r_sense_mohm = 0.25, .mfr_config_1 = { 0x3570 } }
}
◆ max16550a_init_args
| max16550a_init_arg max16550a_init_args[] = { [0] = { .r_load = 14000 } } |
◆ mp5990_init_args
| mp5990_init_arg mp5990_init_args[] |
Initial value:
= { [0] = { .is_init = false,
.iout_cal_gain = 0x0104,
.iout_oc_fault_limit = 0x0028,
.ocw_sc_ref = 0xFFFF },
[1] = { .is_init = false,
.iout_cal_gain = 0x01BF,
.iout_oc_fault_limit = 0x0046,
.ocw_sc_ref = 0xFFFF } }
◆ mux_conf_addr_0xe2
| struct tca9548 mux_conf_addr_0xe2[8] |
Initial value:
= {
[0] = { .addr = 0xe2, .chan = 0 }, [1] = { .addr = 0xe2, .chan = 1 },
[2] = { .addr = 0xe2, .chan = 2 }, [3] = { .addr = 0xe2, .chan = 3 },
[4] = { .addr = 0xe2, .chan = 4 }, [5] = { .addr = 0xe2, .chan = 5 },
[6] = { .addr = 0xe2, .chan = 6 }, [7] = { .addr = 0xe2, .chan = 7 },
}
◆ pmic_init_args
| pmic_init_arg pmic_init_args[] |
Initial value:
= {
[0] = { .is_init = false, .smbus_bus_identifier = 0x00, .smbus_addr = 0x90 },
[1] = { .is_init = false, .smbus_bus_identifier = 0x00, .smbus_addr = 0x98 },
[2] = { .is_init = false, .smbus_bus_identifier = 0x00, .smbus_addr = 0x9C },
[3] = { .is_init = false, .smbus_bus_identifier = 0x01, .smbus_addr = 0x90 },
[4] = { .is_init = false, .smbus_bus_identifier = 0x01, .smbus_addr = 0x98 },
[5] = { .is_init = false, .smbus_bus_identifier = 0x01, .smbus_addr = 0x9C }
}
