plat_gpio.h File Reference
#include "hal_gpio.h"
Include dependency graph for plat_gpio.h:

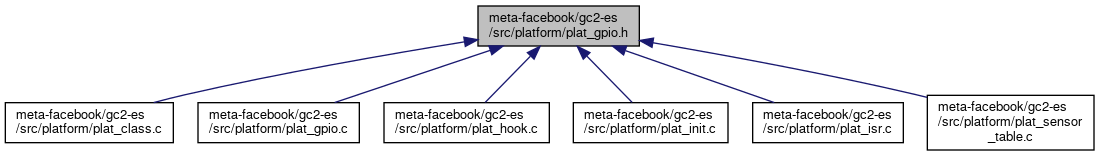

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | name_gpioA |
| #define | name_gpioB |
| #define | name_gpioC |
| #define | name_gpioD |
| #define | name_gpioE |
| #define | name_gpioF |
| #define | name_gpioG |
| #define | name_gpioH |
| #define | name_gpioI |
| #define | name_gpioJ |
| #define | name_gpioK |
| #define | name_gpioL |
| #define | name_gpioM |
| #define | name_gpioN |
| #define | name_gpioO |
| #define | name_gpioP |
| #define | name_gpioQ |
| #define | name_gpioR |
| #define | name_gpioS |
| #define | name_gpioT |
| #define | name_gpioU |
| #define | gpio_name_to_num(x) x, |
Enumerations | |
| enum | _GPIO_NUMS_ { name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioF , name_gpioF , name_gpioF , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU , name_gpioU } |
Functions | |
| void | enable_PRDY_interrupt () |
| void | disable_PRDY_interrupt () |
Variables | |
| enum _GPIO_NUMS_ | GPIO_NUMS |
| char * | gpio_name [] |
Macro Definition Documentation
◆ gpio_name_to_num
| #define gpio_name_to_num | ( | x | ) | x, |
◆ name_gpioA
| #define name_gpioA |
Value:
gpio_name_to_num(FM_BMC_PCH_SCI_LPC_R_N) \
gpio_name_to_num(FM_BIOS_POST_CMPLT_BMC_N) \
gpio_name_to_num(FM_SLPS3_PLD_N) \
gpio_name_to_num(IRQ_BMC_PCH_SMI_LPC_R_N) \
gpio_name_to_num(IRQ_UV_DETECT_N) \
gpio_name_to_num(FM_UV_ADR_TRIGGER_EN_R) \
gpio_name_to_num(IRQ_SMI_ACTIVE_BMC_N) \
gpio_name_to_num(SMB_E1S_0_RST_R_N)
◆ name_gpioB
| #define name_gpioB |
Value:
gpio_name_to_num(SMB_E1S_0_INA233_ALRT_N) \
gpio_name_to_num(TP_BIC_R3) \
gpio_name_to_num(A_P3V_BAT_SCALED_EN_R) \
gpio_name_to_num(FM_SPI_PCH_MASTER_SEL_R) \
gpio_name_to_num(FM_PCHHOT_N) \
gpio_name_to_num(FM_SLPS4_PLD_N) \
gpio_name_to_num(FM_S3M_CPU0_CD_INIT_ERROR) \
gpio_name_to_num(PWRGD_SYS_PWROK)
◆ name_gpioC
| #define name_gpioC |
Value:
gpio_name_to_num(FM_HSC_TIMER) \
gpio_name_to_num(IRQ_SMB_IO_LVC3_STBY_ALRT_N) \
gpio_name_to_num(IRQ_CPU0_VRHOT_N) \
gpio_name_to_num(DBP_CPU_PREQ_BIC_N) \
gpio_name_to_num(FM_CPU_THERMTRIP_LATCH_LVT3_N) \
gpio_name_to_num(FM_CPU_SKTOCC_LVT3_PLD_N) \
gpio_name_to_num(H_CPU_MEMHOT_OUT_LVC3_N) \
gpio_name_to_num(RST_PLTRST_PLD_N)
◆ name_gpioD
| #define name_gpioD |
Value:
gpio_name_to_num(PWRBTN_N) \
gpio_name_to_num(RST_BMC_R_N) \
gpio_name_to_num(H_BMC_PRDY_BUF_N) \
gpio_name_to_num(BMC_READY) \
gpio_name_to_num(BIC_READY) \
gpio_name_to_num(FM_RMCA_LVT3_N) \
gpio_name_to_num(HSC_MUX_SWITCH_R) \
gpio_name_to_num(FM_FORCE_ADR_N_R)
◆ name_gpioE
| #define name_gpioE |
Value:
gpio_name_to_num(PWRGD_CPU_LVC3) \
gpio_name_to_num(FM_PCH_BMC_THERMTRIP_N) \
gpio_name_to_num(FM_THROTTLE_R_N) \
gpio_name_to_num(IRQ_HSC_ALERT2_N) \
gpio_name_to_num(SMB_SENSOR_LVC3_ALERT_N) \
gpio_name_to_num(FM_CATERR_LVT3_N) \
gpio_name_to_num(SYS_PWRBTN_N) \
gpio_name_to_num(RST_PLTRST_BUF_N)
◆ name_gpioF
| #define name_gpioF |
Value:
gpio_name_to_num(IRQ_BMC_PCH_NMI_R) \
gpio_name_to_num(IRQ_SML1_PMBUS_ALERT_N) \
gpio_name_to_num(IRQ_PCH_CPU_NMI_EVENT_N) \
gpio_name_to_num(FM_BMC_DEBUG_ENABLE_N) \
gpio_name_to_num(FM_DBP_PRESENT_N) \
gpio_name_to_num(FM_FAST_PROCHOT_EN_N_R) \
gpio_name_to_num(FM_SPI_MUX_OE_CTL_PLD_N) \
gpio_name_to_num(FBRK_N_R)
◆ name_gpioG
| #define name_gpioG |
Value:
gpio_name_to_num(FM_PEHPCPU_INT) \
gpio_name_to_num(FM_BIOS_MRC_DEBUG_MSG_DIS_R) \
gpio_name_to_num(FAST_PROCHOT_N) \
gpio_name_to_num(FM_JTAG_TCK_MUX_SEL_R) \
gpio_name_to_num(BMC_JTAG_SEL_R) \
gpio_name_to_num(H_CPU_ERR0_LVC3_N) \
gpio_name_to_num(H_CPU_ERR1_LVC3_N) \
gpio_name_to_num(H_CPU_ERR2_LVC3_N)
◆ name_gpioH
| #define name_gpioH |
Value:
gpio_name_to_num(RST_RSMRST_BMC_N) \
gpio_name_to_num(FM_MP_PS_FAIL_N) \
gpio_name_to_num(H_CPU_MEMTRIP_LVC3_N) \
gpio_name_to_num(FM_CPU_BIC_PROCHOT_LVT3_N) \
gpio_name_to_num(SMB_BIC_CPLD_R_SCL) \
gpio_name_to_num(SMB_BIC_CPLD_R_SDA) \
gpio_name_to_num(SMB_SENSOR_LVC3_R_SCL) \
gpio_name_to_num(SMB_SENSOR_LVC3_R_SDA)
◆ name_gpioI
| #define name_gpioI |
Value:
gpio_name_to_num(SMB_SMLINK0_STBY_LVC3_R_SCL) \
gpio_name_to_num(SMB_SMLINK0_STBY_LVC3_R_SDA) \
gpio_name_to_num(SMB_HOST_STBY_BMC_LVC3_R_SCL) \
gpio_name_to_num(SMB_HOST_STBY_BMC_LVC3_R_SDA) \
gpio_name_to_num(SMB_PMBUS_SML1_STBY_LVC3_R2_SCL) \
gpio_name_to_num(SMB_PMBUS_SML1_STBY_LVC3_R2_SDA) \
gpio_name_to_num(SMB_CPU_PIROM_SCL) \
gpio_name_to_num(SMB_CPU_PIROM_SDA)
◆ name_gpioJ
| #define name_gpioJ |
Value:
gpio_name_to_num(SMB_IPMB_STBY_LVC3_R_SCL) \
gpio_name_to_num(SMB_IPMB_STBY_LVC3_R_SDA) \
gpio_name_to_num(Reserve_GPIOJ2) \
gpio_name_to_num(Reserve_GPIOJ3) \
gpio_name_to_num(Reserve_GPIOJ4) \
gpio_name_to_num(Reserve_GPIOJ5) \
gpio_name_to_num(Reserve_GPIOJ6) \
gpio_name_to_num(Reserve_GPIOJ7)
◆ name_gpioK
| #define name_gpioK |
Value:
gpio_name_to_num(Reserve_GPIOK0) \
gpio_name_to_num(Reserve_GPIOK1) \
gpio_name_to_num(Reserve_GPIOK2) \
gpio_name_to_num(Reserve_GPIOK3) \
gpio_name_to_num(Reserve_GPIOK4) \
gpio_name_to_num(Reserve_GPIOK5) \
gpio_name_to_num(I3C_SPD_DDR_CPU_BIC_R_SCL) \
gpio_name_to_num(I3C_SPD_DDR_CPU_BIC_R_SDA)
◆ name_gpioL
| #define name_gpioL |
Value:
gpio_name_to_num(UART_HOST_TXD) \
gpio_name_to_num(UART_HOST_RXD) \
gpio_name_to_num(SSD0_PRSNT_N) \
gpio_name_to_num(SSD1_PRSNT_N) \
gpio_name_to_num(IRQ_PVCCD_CPU0_VRHOT_LVC3_N) \
gpio_name_to_num(FM_PVCCIN_CPU0_PWR_IN_ALERT_N) \
gpio_name_to_num(UART_BIC_EXP_TXD) \
gpio_name_to_num(UART_BIC_EXP_R_RXD)
◆ name_gpioM
| #define name_gpioM |
Value:
gpio_name_to_num(BIC_SECUREBOOT) \
gpio_name_to_num(Reserve_GPIOM1) \
gpio_name_to_num(BIC_ESPI_SELECT) \
gpio_name_to_num(FM_THROTTLE_IN_N) \
gpio_name_to_num(UART_BIC_TXD) \
gpio_name_to_num(UART_BIC_R_RXD) \
gpio_name_to_num(Reserve_GPIOM6) \
gpio_name_to_num(Reserve_GPIOM7)
◆ name_gpioN
| #define name_gpioN |
Value:
gpio_name_to_num(SGPIO_BMC_CLK_R) \
gpio_name_to_num(SGPIO_BMC_LD_R_N) \
gpio_name_to_num(SGPIO_BMC_DOUT_R) \
gpio_name_to_num(SGPIO_BMC_DIN) \
gpio_name_to_num(ESPI_IO0_R2) \
gpio_name_to_num(ESPI_IO1_R2) \
gpio_name_to_num(ESPI_IO2_R2) \
gpio_name_to_num(ESPI_IO3_R2)
◆ name_gpioO
| #define name_gpioO |
Value:
gpio_name_to_num(CLK_LPC_ESPI_R) \
gpio_name_to_num(ESPI_CS_R_N) \
gpio_name_to_num(ESPI_ALERT_N) \
gpio_name_to_num(RST_ESPI_RESET_R_N) \
gpio_name_to_num(JTAG_BIC_NTRST2) \
gpio_name_to_num(BIC_JTAG_TCK_R) \
gpio_name_to_num(BIC_JTAG_TDI_R) \
gpio_name_to_num(BIC_JTAG_TDO)
◆ name_gpioP
| #define name_gpioP |
Value:
gpio_name_to_num(BIC_JTAG_TMS_R) \
gpio_name_to_num(JTAG_BIC_NTRST1) \
gpio_name_to_num(JTAG_BIC_DEBUG_TCK) \
gpio_name_to_num(JTAG_BIC_DEBUG_TDI) \
gpio_name_to_num(JTAG_BIC_DEBUG_TDO) \
gpio_name_to_num(JTAG_BIC_DEBUG_TMS) \
gpio_name_to_num(Reserve_GPIOP6) \
gpio_name_to_num(Reserve_GPIOP7)
◆ name_gpioQ
| #define name_gpioQ |
Value:
gpio_name_to_num(Reserve_GPIOQ0) \
gpio_name_to_num(Reserve_GPIOQ1) \
gpio_name_to_num(Reserve_GPIOQ2) \
gpio_name_to_num(Reserve_GPIOQ3) \
gpio_name_to_num(Reserve_GPIOQ4) \
gpio_name_to_num(Reserve_GPIOQ5) \
gpio_name_to_num(Reserve_GPIOQ6) \
gpio_name_to_num(Reserve_GPIOQ7)
◆ name_gpioR
| #define name_gpioR |
Value:
gpio_name_to_num(Reserve_GPIOR0) \
gpio_name_to_num(Reserve_GPIOR1) \
gpio_name_to_num(Reserve_GPIOR2) \
gpio_name_to_num(Reserve_GPIOR3) \
gpio_name_to_num(Reserve_GPIOR4) \
gpio_name_to_num(Reserve_GPIOR5) \
gpio_name_to_num(Reserve_GPIOR6) \
gpio_name_to_num(Reserve_GPIOR7)
◆ name_gpioS
| #define name_gpioS |
Value:
gpio_name_to_num(Reserve_GPIOS0) \
gpio_name_to_num(Reserve_GPIOS1) \
gpio_name_to_num(Reserve_GPIOS2) \
gpio_name_to_num(Reserve_GPIOS3) \
gpio_name_to_num(Reserve_GPIOS4) \
gpio_name_to_num(Reserve_GPIOS5) \
gpio_name_to_num(Reserve_GPIOS6) \
gpio_name_to_num(Reserve_GPIOS7)
◆ name_gpioT
| #define name_gpioT |
Value:
gpio_name_to_num(A_P12V_STBY_SCALED) \
gpio_name_to_num(GND_GPIOT1) \
gpio_name_to_num(A_P3V3_STBY_SCALED) \
gpio_name_to_num(A_P1V05_PCH_STBY_SENSOR) \
gpio_name_to_num(A_P3V_BAT_SCALED) \
gpio_name_to_num(GND_GPIOT5) \
gpio_name_to_num(CARD_TYPE_EXP) \
gpio_name_to_num(HSC_TYPE_ADC)
◆ name_gpioU
| #define name_gpioU |
Value:
gpio_name_to_num(GND_GPIOU0) \
gpio_name_to_num(A_P5V_STBY_SCALED) \
gpio_name_to_num(GND_GPIOU2) \
gpio_name_to_num(A_P12V_CPU_NVDIMM_SCALED) \
gpio_name_to_num(GND_GPIOU4) \
gpio_name_to_num(A_P1V2_STBY_SENSOR) \
gpio_name_to_num(GND_GPIOU6) \
gpio_name_to_num(Reserve_GPIOU7)
Enumeration Type Documentation
◆ _GPIO_NUMS_
| enum _GPIO_NUMS_ |
Function Documentation
◆ disable_PRDY_interrupt()
| void disable_PRDY_interrupt | ( | ) |
◆ enable_PRDY_interrupt()
| void enable_PRDY_interrupt | ( | ) |
Variable Documentation
◆ gpio_name
|
extern |
◆ GPIO_NUMS
|
extern |
