shell_plat_asic_mfio_debug.c File Reference

#include <shell/shell.h>
#include <stdlib.h>
#include <logging/log.h>
#include "plat_isr.h"
#include "plat_i2c.h"
#include "plat_hook.h"
#include "plat_cpld.h"
#include "plat_ioexp.h"
#include "plat_class.h"

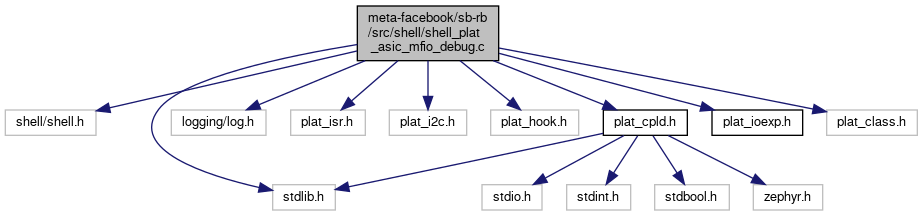

Include dependency graph for shell_plat_asic_mfio_debug.c:

Classes
struct	unassigned_mifo_pin_map_t
struct	port_map_t
struct	asic_mifo_pin_map_t

Macros
#define	NC_HAMSA_MFIO20_BIT   2
#define	NC_HAMSA_MFIO21_BIT   3
#define	NC_HAMSA_MFIO22_BIT   4
#define	NC_HAMSA_MFIO23_BIT   5
#define	NC_HAMSA_MFIO24_BIT   6
#define	NC_HAMSA_MFIO25_BIT   7
#define	NC_HAMSA_MFIO26_BIT   0
#define	NC_HAMSA_MFIO27_BIT   1
#define	NC_HAMSA_MFIO28_BIT   2
#define	NC_HAMSA_MFIO29_BIT   3
#define	NC_HAMSA_MFIO30_BIT   4
#define	NC_HAMSA_MFIO31_BIT   5
#define	PORT_0   0
#define	PORT_1   1
#define	PORT_2   2

Functions
	LOG_MODULE_REGISTER (plat_asic_mfio_debug_shell, LOG_LEVEL_DBG)
	SHELL_DYNAMIC_CMD_CREATE (mifo_name, mfio_dynamic_get_name)
	SHELL_STATIC_SUBCMD_SET_CREATE (sub_mfio_get_cmds, SHELL_CMD(all, NULL, "bootstrap get all", cmd_mfio_get_all), SHELL_SUBCMD_SET_END)
	SHELL_STATIC_SUBCMD_SET_CREATE (sub_set_cmds, SHELL_CMD(io, &mifo_name, "set io <mfio_name> 1/0, 1 = output, 0 = input", cmd_set_mfio_io), SHELL_CMD(value, &mifo_name, "set value <mfio_name> 1/0, 1 = high, 0 = low", cmd_set_mfio_value), SHELL_SUBCMD_SET_END)
	SHELL_STATIC_SUBCMD_SET_CREATE (sub_asic_mfio_debug_cmds, SHELL_CMD(get, &sub_mfio_get_cmds, "get all", NULL), SHELL_CMD(set, &sub_set_cmds, "set io/value <mfio_name> 1/0", NULL), SHELL_SUBCMD_SET_END)
	SHELL_CMD_REGISTER (asic_mfio_debug, &sub_asic_mfio_debug_cmds, "asic_mfio_debug set/get commands", NULL)

Macro Definition Documentation

NC_HAMSA_MFIO20_BIT

#define NC_HAMSA_MFIO20_BIT   2

NC_HAMSA_MFIO21_BIT

#define NC_HAMSA_MFIO21_BIT   3

NC_HAMSA_MFIO22_BIT

#define NC_HAMSA_MFIO22_BIT   4

NC_HAMSA_MFIO23_BIT

#define NC_HAMSA_MFIO23_BIT   5

NC_HAMSA_MFIO24_BIT

#define NC_HAMSA_MFIO24_BIT   6

NC_HAMSA_MFIO25_BIT

#define NC_HAMSA_MFIO25_BIT   7

NC_HAMSA_MFIO26_BIT

#define NC_HAMSA_MFIO26_BIT   0

NC_HAMSA_MFIO27_BIT

#define NC_HAMSA_MFIO27_BIT   1

NC_HAMSA_MFIO28_BIT

#define NC_HAMSA_MFIO28_BIT   2

NC_HAMSA_MFIO29_BIT

#define NC_HAMSA_MFIO29_BIT   3

NC_HAMSA_MFIO30_BIT

#define NC_HAMSA_MFIO30_BIT   4

NC_HAMSA_MFIO31_BIT

#define NC_HAMSA_MFIO31_BIT   5

PORT_0

#define PORT_0   0

PORT_1

#define PORT_1   1

PORT_2

#define PORT_2   2

Function Documentation

LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	plat_asic_mfio_debug_shell	,
		LOG_LEVEL_DBG
	)

SHELL_CMD_REGISTER()

SHELL_CMD_REGISTER	(	asic_mfio_debug	,
		&	sub_asic_mfio_debug_cmds,
		"asic_mfio_debug set/get commands"	,
		NULL
	)

SHELL_DYNAMIC_CMD_CREATE()

SHELL_DYNAMIC_CMD_CREATE	(	mifo_name	,
		mfio_dynamic_get_name
	)

SHELL_STATIC_SUBCMD_SET_CREATE() [1/3]

SHELL_STATIC_SUBCMD_SET_CREATE	(	sub_asic_mfio_debug_cmds	,
		SHELL_CMD(get, &sub_mfio_get_cmds, "get all", NULL)	,
		SHELL_CMD(set, &sub_set_cmds, "set io/value <mfio_name> 1/0", NULL)	,
		SHELL_SUBCMD_SET_END
	)

SHELL_STATIC_SUBCMD_SET_CREATE() [2/3]

SHELL_STATIC_SUBCMD_SET_CREATE	(	sub_mfio_get_cmds	,
		SHELL_CMD(all, NULL, "bootstrap get all", cmd_mfio_get_all)	,
		SHELL_SUBCMD_SET_END
	)

SHELL_STATIC_SUBCMD_SET_CREATE() [3/3]

SHELL_STATIC_SUBCMD_SET_CREATE	(	sub_set_cmds	,
		SHELL_CMD(io, &mifo_name, "set io <mfio_name> 1/0, 1 = output, 0 = input", cmd_set_mfio_io)	,
		SHELL_CMD(value, &mifo_name, "set value <mfio_name> 1/0, 1 = high, 0 = low", cmd_set_mfio_value)	,
		SHELL_SUBCMD_SET_END
	)
