shell_arke_power.h File Reference

#include <shell/shell.h>

Include dependency graph for shell_arke_power.h:

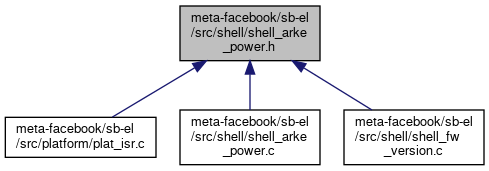

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	pwr_clock_compnt_mapping

Macros
#define	CLK_BUF_U85_ADDR   (0xCE >> 1)
#define	CLK_BUF_U690_ADDR   (0xD8 >> 1)
#define	CLK_BUF_U88_ADDR   (0xDE >> 1)
#define	CLK_GEN_100M_U86_ADDR   0x9
#define	CLK_BUF_100M_WRITE_LOCK_CLEAR_LOS_EVENT_OFFSET   0x27
#define	CLK_GEN_LOSMON_EVENT_OFFSET   0x5a
#define	CLK_BUF_100M_BYTE_COUNT   0x7

Typedefs
typedef struct pwr_clock_compnt_mapping	pwr_clock_compnt_mapping

Enumerations
enum	PWR_CLOCK_COMPONENT {   CLK_BUF_100M_U85 , CLK_BUF_100M_U690 , CLK_BUF_100M_U88 , CLK_GEN_100M_U86 ,   CLK_COMPONENT_MAX , CLK_BUF_100M_U85 , CLK_BUF_100M_U87 , CLK_BUF_100M_U88 ,   CLK_GEN_100M_U86 , CLK_COMPONENT_MAX }

Functions
bool	check_p3v3_p5v_pwrgd (void)
void	power_on_p3v3_osfp ()
void	pwer_gd_get_status (const struct shell *shell)
void	clear_clock_status (const struct shell *shell, uint8_t clock_index)

Macro Definition Documentation

CLK_BUF_100M_BYTE_COUNT

#define CLK_BUF_100M_BYTE_COUNT   0x7

CLK_BUF_100M_WRITE_LOCK_CLEAR_LOS_EVENT_OFFSET

#define CLK_BUF_100M_WRITE_LOCK_CLEAR_LOS_EVENT_OFFSET   0x27

CLK_BUF_U690_ADDR

#define CLK_BUF_U690_ADDR   (0xD8 >> 1)

CLK_BUF_U85_ADDR

#define CLK_BUF_U85_ADDR   (0xCE >> 1)

CLK_BUF_U88_ADDR

#define CLK_BUF_U88_ADDR   (0xDE >> 1)

CLK_GEN_100M_U86_ADDR

#define CLK_GEN_100M_U86_ADDR   0x9

CLK_GEN_LOSMON_EVENT_OFFSET

#define CLK_GEN_LOSMON_EVENT_OFFSET   0x5a

Typedef Documentation

pwr_clock_compnt_mapping

typedef struct pwr_clock_compnt_mapping pwr_clock_compnt_mapping

Enumeration Type Documentation

PWR_CLOCK_COMPONENT

enum PWR_CLOCK_COMPONENT

Enumerator
CLK_BUF_100M_U85
CLK_BUF_100M_U690
CLK_BUF_100M_U88
CLK_GEN_100M_U86
CLK_COMPONENT_MAX
CLK_BUF_100M_U85
CLK_BUF_100M_U87
CLK_BUF_100M_U88
CLK_GEN_100M_U86
CLK_COMPONENT_MAX

Function Documentation

check_p3v3_p5v_pwrgd()

bool check_p3v3_p5v_pwrgd

(

void

)

clear_clock_status()

void clear_clock_status	(	const struct shell *	shell,
		uint8_t	clock_index
	)

power_on_p3v3_osfp()

void power_on_p3v3_osfp

(

)

pwer_gd_get_status()

void pwer_gd_get_status

(

const struct shell *

shell

)
