#include <stdint.h>
#include "sensor.h"

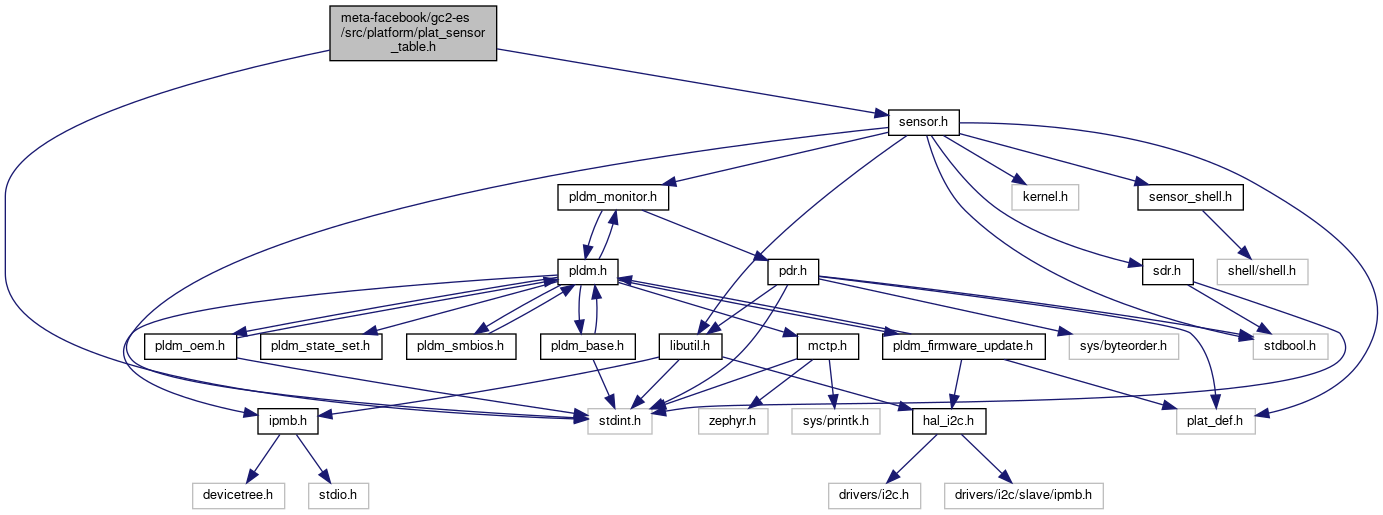

Include dependency graph for plat_sensor_table.h:

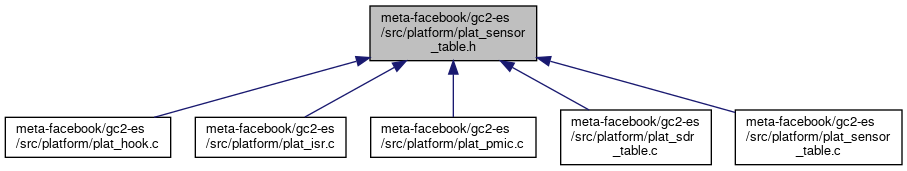

This graph shows which files directly or indirectly include this file:

Classes
struct	_dimm_pmic_mapping_cfg

Macros
#define	TMP75_IN_ADDR (0x92 >> 1)

#define	TMP75_OUT_ADDR (0x94 >> 1)

#define	TMP75_FIO_ADDR (0x90 >> 1)

#define	TMP431_ADDR (0x98 >> 1)

#define	TMP75_TEMP_OFFSET 0x00

#define	SSD0_ADDR (0xD4 >> 1)

#define	SSD0_OFFSET 0x00

#define	ADI_ADM1278_ADDR (0x80 >> 1)

#define	ADI_LTC4286_ADDR (0x84 >> 1)

#define	MPS_MP5990_ADDR (0x16 >> 1)

#define	ADI_LTC4282_ADDR (0x88 >> 1)

#define	PCH_ADDR (0x2C >> 1)

#define	ME_SENSOR_NUM_TEMP_PCH 0x08

#define	PVCCD_HV_ADDR (0xC4 >> 1)

#define	PVCCINFAON_ADDR (0xEC >> 1)

#define	PVCCFA_EHV_ADDR (0xEC >> 1)

#define	PVCCIN_ADDR (0xC0 >> 1)

#define	PVCCFA_EHV_FIVRA_ADDR (0xC0 >> 1)

#define	VR_VOL_CMD 0x8B

#define	VR_CUR_CMD 0x8C

#define	VR_TEMP_CMD 0x8D

#define	VR_PWR_CMD 0x96

#define	SSD0_MUX_ADDR (0xE2 >> 1)

#define	SSD0_CHANNEL 2

#define	CPU_PECI_ADDR 0x30

#define	TEMP_CPU_MARGIN_INDEX 0x02

#define	TEMP_CPU_MARGIN_PARAM 0x00FF

#define	TEMP_CPU_TJMAX_INDEX 0x10

#define	TEMP_CPU_TJMAX_PARAM 0x0000

#define	TEMP_DIMM_INDEX 0x0E

#define	TEMP_DIMM_A0_PARAM 0x0000

#define	TEMP_DIMM_A2_PARAM 0x0002

#define	TEMP_DIMM_A3_PARAM 0x0003

#define	TEMP_DIMM_A4_PARAM 0x0004

#define	TEMP_DIMM_A6_PARAM 0x0006

#define	TEMP_DIMM_A7_PARAM 0x0007

#define	DPV2_16_ADDR 0x50

#define	SENSOR_NUM_TEMP_TMP75_IN 0x01

#define	SENSOR_NUM_TEMP_TMP75_OUT 0x02

#define	SENSOR_NUM_TEMP_TMP75_FIO 0x03

#define	SENSOR_NUM_TEMP_PCH 0x04

#define	SENSOR_NUM_TEMP_CPU 0x05

#define	SENSOR_NUM_TEMP_DIMM_A0 0x06

#define	SENSOR_NUM_TEMP_DIMM_A2 0x07

#define	SENSOR_NUM_TEMP_DIMM_A3 0x09

#define	SENSOR_NUM_TEMP_DIMM_A4 0x0A

#define	SENSOR_NUM_TEMP_DIMM_A6 0x0B

#define	SENSOR_NUM_TEMP_DIMM_A7 0x0C

#define	SENSOR_NUM_TEMP_SSD0 0x0D

#define	SENSOR_NUM_TEMP_HSC 0x0E

#define	SENSOR_NUM_TEMP_CPU_MARGIN 0x14

#define	SENSOR_NUM_TEMP_CPU_TJMAX 0x15

#define	SENSOR_NUM_TEMP_PVCCIN 0x0F

#define	SENSOR_NUM_TEMP_PVCCFA_EHV_FIVRA 0x10

#define	SENSOR_NUM_TEMP_PVCCFA_EHV 0x11

#define	SENSOR_NUM_TEMP_PVCCD_HV 0x12

#define	SENSOR_NUM_TEMP_PVCCINFAON 0x13

#define	SENSOR_NUM_VOL_STBY12V 0x20

#define	SENSOR_NUM_VOL_STBY3V 0x21

#define	SENSOR_NUM_VOL_STBY1V05 0x22

#define	SENSOR_NUM_VOL_BAT3V 0x23

#define	SENSOR_NUM_VOL_STBY5V 0x24

#define	SENSOR_NUM_VOL_DIMM12V 0x25

#define	SENSOR_NUM_VOL_STBY1V2 0x26

#define	SENSOR_NUM_VOL_STBY1V8 0x27

#define	SENSOR_NUM_VOL_HSCIN 0x29

#define	SENSOR_NUM_VOL_PVCCIN 0x2A

#define	SENSOR_NUM_VOL_PVCCFA_EHV_FIVRA 0x2C

#define	SENSOR_NUM_VOL_PVCCFA_EHV 0x2D

#define	SENSOR_NUM_VOL_PVCCD_HV 0x2E

#define	SENSOR_NUM_VOL_PVCCINFAON 0x2F

#define	SENSOR_NUM_CUR_HSCOUT 0x30

#define	SENSOR_NUM_CUR_PVCCIN 0x31

#define	SENSOR_NUM_CUR_PVCCFA_EHV_FIVRA 0x32

#define	SENSOR_NUM_CUR_PVCCFA_EHV 0x33

#define	SENSOR_NUM_CUR_PVCCD_HV 0x34

#define	SENSOR_NUM_CUR_PVCCINFAON 0x35

#define	SENSOR_NUM_PWR_CPU 0x38

#define	SENSOR_NUM_PWR_HSCIN 0x39

#define	SENSOR_NUM_PWR_PVCCIN 0x3A

#define	SENSOR_NUM_PWR_PVCCFA_EHV_FIVRA 0x3C

#define	SENSOR_NUM_PWR_PVCCFA_EHV 0x3D

#define	SENSOR_NUM_PWR_PVCCD_HV 0x3E

#define	SENSOR_NUM_PWR_PVCCINFAON 0x3F

#define	SENSOR_NUM_PWR_DIMMA0_PMIC 0x1E

#define	SENSOR_NUM_PWR_DIMMA2_PMIC 0x1F

#define	SENSOR_NUM_PWR_DIMMA3_PMIC 0x36

#define	SENSOR_NUM_PWR_DIMMA4_PMIC 0x37

#define	SENSOR_NUM_PWR_DIMMA6_PMIC 0x42

#define	SENSOR_NUM_PWR_DIMMA7_PMIC 0x47

#define	SENSOR_NUM_SYSTEM_STATUS 0x10

#define	SENSOR_NUM_POWER_ERROR 0x56

#define	SENSOR_NUM_PROC_FAIL 0x65

#define	SENSOR_NUM_VR_HOT 0xB2

#define	SENSOR_NUM_CPUDIMM_HOT 0xB3

#define	SENSOR_NUM_PMIC_ERROR 0xB4

#define	SENSOR_NUM_CATERR 0xEB

#define	SENSOR_NUM_NMI 0xEA

#define	SENSOR_NUM_VOL_DPV2_12VIN 0x91

#define	SENSOR_NUM_VOL_DPV2_12VOUT 0x92

#define	SENSOR_NUM_CUR_DPV2OUT 0x93

#define	SENSOR_NUM_TEMP_DPV2_EFUSE 0x94

#define	SENSOR_NUM_PWR_DPV2 0x95

#define	POLL_TIME_BAT3V 3600

Typedefs
typedef struct _dimm_pmic_mapping_cfg	dimm_pmic_mapping_cfg

Functions
uint8_t	plat_get_config_size ()

void	load_sensor_config (void)

bool	disable_dimm_pmic_sensor (uint8_t sensor_num)

Macro Definition Documentation

◆ ADI_ADM1278_ADDR

#define ADI_ADM1278_ADDR (0x80 >> 1)

◆ ADI_LTC4282_ADDR

#define ADI_LTC4282_ADDR (0x88 >> 1)

◆ ADI_LTC4286_ADDR

#define ADI_LTC4286_ADDR (0x84 >> 1)

◆ CPU_PECI_ADDR

#define CPU_PECI_ADDR 0x30

◆ DPV2_16_ADDR

#define DPV2_16_ADDR 0x50

◆ ME_SENSOR_NUM_TEMP_PCH

#define ME_SENSOR_NUM_TEMP_PCH 0x08

◆ MPS_MP5990_ADDR

#define MPS_MP5990_ADDR (0x16 >> 1)

◆ PCH_ADDR

#define PCH_ADDR (0x2C >> 1)

◆ POLL_TIME_BAT3V

#define POLL_TIME_BAT3V 3600

◆ PVCCD_HV_ADDR

#define PVCCD_HV_ADDR (0xC4 >> 1)

◆ PVCCFA_EHV_ADDR

#define PVCCFA_EHV_ADDR (0xEC >> 1)

◆ PVCCFA_EHV_FIVRA_ADDR

#define PVCCFA_EHV_FIVRA_ADDR (0xC0 >> 1)

◆ PVCCIN_ADDR

#define PVCCIN_ADDR (0xC0 >> 1)

◆ PVCCINFAON_ADDR

#define PVCCINFAON_ADDR (0xEC >> 1)

◆ SENSOR_NUM_CATERR

#define SENSOR_NUM_CATERR 0xEB

◆ SENSOR_NUM_CPUDIMM_HOT

#define SENSOR_NUM_CPUDIMM_HOT 0xB3

◆ SENSOR_NUM_CUR_DPV2OUT

#define SENSOR_NUM_CUR_DPV2OUT 0x93

◆ SENSOR_NUM_CUR_HSCOUT

#define SENSOR_NUM_CUR_HSCOUT 0x30

◆ SENSOR_NUM_CUR_PVCCD_HV

#define SENSOR_NUM_CUR_PVCCD_HV 0x34

◆ SENSOR_NUM_CUR_PVCCFA_EHV

#define SENSOR_NUM_CUR_PVCCFA_EHV 0x33

◆ SENSOR_NUM_CUR_PVCCFA_EHV_FIVRA

#define SENSOR_NUM_CUR_PVCCFA_EHV_FIVRA 0x32

◆ SENSOR_NUM_CUR_PVCCIN

#define SENSOR_NUM_CUR_PVCCIN 0x31

◆ SENSOR_NUM_CUR_PVCCINFAON

#define SENSOR_NUM_CUR_PVCCINFAON 0x35

◆ SENSOR_NUM_NMI

#define SENSOR_NUM_NMI 0xEA

◆ SENSOR_NUM_PMIC_ERROR

#define SENSOR_NUM_PMIC_ERROR 0xB4

◆ SENSOR_NUM_POWER_ERROR

#define SENSOR_NUM_POWER_ERROR 0x56

◆ SENSOR_NUM_PROC_FAIL

#define SENSOR_NUM_PROC_FAIL 0x65

◆ SENSOR_NUM_PWR_CPU

#define SENSOR_NUM_PWR_CPU 0x38

◆ SENSOR_NUM_PWR_DIMMA0_PMIC

#define SENSOR_NUM_PWR_DIMMA0_PMIC 0x1E

◆ SENSOR_NUM_PWR_DIMMA2_PMIC

#define SENSOR_NUM_PWR_DIMMA2_PMIC 0x1F

◆ SENSOR_NUM_PWR_DIMMA3_PMIC

#define SENSOR_NUM_PWR_DIMMA3_PMIC 0x36

◆ SENSOR_NUM_PWR_DIMMA4_PMIC

#define SENSOR_NUM_PWR_DIMMA4_PMIC 0x37

◆ SENSOR_NUM_PWR_DIMMA6_PMIC

#define SENSOR_NUM_PWR_DIMMA6_PMIC 0x42

◆ SENSOR_NUM_PWR_DIMMA7_PMIC

#define SENSOR_NUM_PWR_DIMMA7_PMIC 0x47

◆ SENSOR_NUM_PWR_DPV2

#define SENSOR_NUM_PWR_DPV2 0x95

◆ SENSOR_NUM_PWR_HSCIN

#define SENSOR_NUM_PWR_HSCIN 0x39

◆ SENSOR_NUM_PWR_PVCCD_HV

#define SENSOR_NUM_PWR_PVCCD_HV 0x3E

◆ SENSOR_NUM_PWR_PVCCFA_EHV

#define SENSOR_NUM_PWR_PVCCFA_EHV 0x3D

◆ SENSOR_NUM_PWR_PVCCFA_EHV_FIVRA

#define SENSOR_NUM_PWR_PVCCFA_EHV_FIVRA 0x3C

◆ SENSOR_NUM_PWR_PVCCIN

#define SENSOR_NUM_PWR_PVCCIN 0x3A

◆ SENSOR_NUM_PWR_PVCCINFAON

#define SENSOR_NUM_PWR_PVCCINFAON 0x3F

◆ SENSOR_NUM_SYSTEM_STATUS

#define SENSOR_NUM_SYSTEM_STATUS 0x10

◆ SENSOR_NUM_TEMP_CPU

#define SENSOR_NUM_TEMP_CPU 0x05

◆ SENSOR_NUM_TEMP_CPU_MARGIN

#define SENSOR_NUM_TEMP_CPU_MARGIN 0x14

◆ SENSOR_NUM_TEMP_CPU_TJMAX

#define SENSOR_NUM_TEMP_CPU_TJMAX 0x15

◆ SENSOR_NUM_TEMP_DIMM_A0

#define SENSOR_NUM_TEMP_DIMM_A0 0x06

◆ SENSOR_NUM_TEMP_DIMM_A2

#define SENSOR_NUM_TEMP_DIMM_A2 0x07

◆ SENSOR_NUM_TEMP_DIMM_A3

#define SENSOR_NUM_TEMP_DIMM_A3 0x09

◆ SENSOR_NUM_TEMP_DIMM_A4

#define SENSOR_NUM_TEMP_DIMM_A4 0x0A

◆ SENSOR_NUM_TEMP_DIMM_A6

#define SENSOR_NUM_TEMP_DIMM_A6 0x0B

◆ SENSOR_NUM_TEMP_DIMM_A7

#define SENSOR_NUM_TEMP_DIMM_A7 0x0C

◆ SENSOR_NUM_TEMP_DPV2_EFUSE

#define SENSOR_NUM_TEMP_DPV2_EFUSE 0x94

◆ SENSOR_NUM_TEMP_HSC

#define SENSOR_NUM_TEMP_HSC 0x0E

◆ SENSOR_NUM_TEMP_PCH

#define SENSOR_NUM_TEMP_PCH 0x04

◆ SENSOR_NUM_TEMP_PVCCD_HV

#define SENSOR_NUM_TEMP_PVCCD_HV 0x12

◆ SENSOR_NUM_TEMP_PVCCFA_EHV

#define SENSOR_NUM_TEMP_PVCCFA_EHV 0x11

◆ SENSOR_NUM_TEMP_PVCCFA_EHV_FIVRA

#define SENSOR_NUM_TEMP_PVCCFA_EHV_FIVRA 0x10

◆ SENSOR_NUM_TEMP_PVCCIN

#define SENSOR_NUM_TEMP_PVCCIN 0x0F

◆ SENSOR_NUM_TEMP_PVCCINFAON

#define SENSOR_NUM_TEMP_PVCCINFAON 0x13

◆ SENSOR_NUM_TEMP_SSD0

#define SENSOR_NUM_TEMP_SSD0 0x0D

◆ SENSOR_NUM_TEMP_TMP75_FIO

#define SENSOR_NUM_TEMP_TMP75_FIO 0x03

◆ SENSOR_NUM_TEMP_TMP75_IN

#define SENSOR_NUM_TEMP_TMP75_IN 0x01

◆ SENSOR_NUM_TEMP_TMP75_OUT

#define SENSOR_NUM_TEMP_TMP75_OUT 0x02

◆ SENSOR_NUM_VOL_BAT3V

#define SENSOR_NUM_VOL_BAT3V 0x23

◆ SENSOR_NUM_VOL_DIMM12V

#define SENSOR_NUM_VOL_DIMM12V 0x25

◆ SENSOR_NUM_VOL_DPV2_12VIN

#define SENSOR_NUM_VOL_DPV2_12VIN 0x91

◆ SENSOR_NUM_VOL_DPV2_12VOUT

#define SENSOR_NUM_VOL_DPV2_12VOUT 0x92

◆ SENSOR_NUM_VOL_HSCIN

#define SENSOR_NUM_VOL_HSCIN 0x29

◆ SENSOR_NUM_VOL_PVCCD_HV

#define SENSOR_NUM_VOL_PVCCD_HV 0x2E

◆ SENSOR_NUM_VOL_PVCCFA_EHV

#define SENSOR_NUM_VOL_PVCCFA_EHV 0x2D

◆ SENSOR_NUM_VOL_PVCCFA_EHV_FIVRA

#define SENSOR_NUM_VOL_PVCCFA_EHV_FIVRA 0x2C

◆ SENSOR_NUM_VOL_PVCCIN

#define SENSOR_NUM_VOL_PVCCIN 0x2A

◆ SENSOR_NUM_VOL_PVCCINFAON

#define SENSOR_NUM_VOL_PVCCINFAON 0x2F

◆ SENSOR_NUM_VOL_STBY12V

#define SENSOR_NUM_VOL_STBY12V 0x20

◆ SENSOR_NUM_VOL_STBY1V05

#define SENSOR_NUM_VOL_STBY1V05 0x22

◆ SENSOR_NUM_VOL_STBY1V2

#define SENSOR_NUM_VOL_STBY1V2 0x26

◆ SENSOR_NUM_VOL_STBY1V8

#define SENSOR_NUM_VOL_STBY1V8 0x27

◆ SENSOR_NUM_VOL_STBY3V

#define SENSOR_NUM_VOL_STBY3V 0x21

◆ SENSOR_NUM_VOL_STBY5V

#define SENSOR_NUM_VOL_STBY5V 0x24

◆ SENSOR_NUM_VR_HOT

#define SENSOR_NUM_VR_HOT 0xB2

◆ SSD0_ADDR

#define SSD0_ADDR (0xD4 >> 1)

◆ SSD0_CHANNEL

#define SSD0_CHANNEL 2

◆ SSD0_MUX_ADDR

#define SSD0_MUX_ADDR (0xE2 >> 1)

◆ SSD0_OFFSET

#define SSD0_OFFSET 0x00

◆ TEMP_CPU_MARGIN_INDEX

#define TEMP_CPU_MARGIN_INDEX 0x02

◆ TEMP_CPU_MARGIN_PARAM

#define TEMP_CPU_MARGIN_PARAM 0x00FF

◆ TEMP_CPU_TJMAX_INDEX

#define TEMP_CPU_TJMAX_INDEX 0x10

◆ TEMP_CPU_TJMAX_PARAM

#define TEMP_CPU_TJMAX_PARAM 0x0000

◆ TEMP_DIMM_A0_PARAM

#define TEMP_DIMM_A0_PARAM 0x0000

◆ TEMP_DIMM_A2_PARAM

#define TEMP_DIMM_A2_PARAM 0x0002

◆ TEMP_DIMM_A3_PARAM

#define TEMP_DIMM_A3_PARAM 0x0003

◆ TEMP_DIMM_A4_PARAM

#define TEMP_DIMM_A4_PARAM 0x0004

◆ TEMP_DIMM_A6_PARAM

#define TEMP_DIMM_A6_PARAM 0x0006

◆ TEMP_DIMM_A7_PARAM

#define TEMP_DIMM_A7_PARAM 0x0007

◆ TEMP_DIMM_INDEX

#define TEMP_DIMM_INDEX 0x0E

◆ TMP431_ADDR

#define TMP431_ADDR (0x98 >> 1)

◆ TMP75_FIO_ADDR

#define TMP75_FIO_ADDR (0x90 >> 1)

◆ TMP75_IN_ADDR

#define TMP75_IN_ADDR (0x92 >> 1)

◆ TMP75_OUT_ADDR

#define TMP75_OUT_ADDR (0x94 >> 1)

◆ TMP75_TEMP_OFFSET

#define TMP75_TEMP_OFFSET 0x00

◆ VR_CUR_CMD

#define VR_CUR_CMD 0x8C

◆ VR_PWR_CMD

#define VR_PWR_CMD 0x96

◆ VR_TEMP_CMD

#define VR_TEMP_CMD 0x8D

◆ VR_VOL_CMD

#define VR_VOL_CMD 0x8B

Typedef Documentation

◆ dimm_pmic_mapping_cfg

typedef struct _dimm_pmic_mapping_cfg dimm_pmic_mapping_cfg

Function Documentation

◆ disable_dimm_pmic_sensor()

bool disable_dimm_pmic_sensor ( uint8_t sensor_num )

◆ load_sensor_config()

void load_sensor_config ( void )

◆ plat_get_config_size()

uint8_t plat_get_config_size ( )
