plat_ipmb.h File Reference

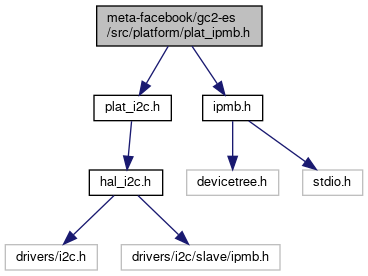

Include dependency graph for plat_ipmb.h:

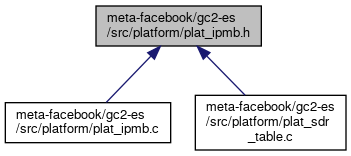

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | IPMB_BMC_BUS I2C_BUS7 |
| #define | IPMB_ME_BUS I2C_BUS3 |
| #define | IPMB_EXP1_BUS I2C_BUS8 |
| #define | IPMB_EXP2_BUS I2C_BUS9 |
| #define | IPMB_BB_BIC_BUS I2C_BUS8 |
| #define | BMC_I2C_ADDRESS 0x10 |
| #define | ME_I2C_ADDRESS 0x16 |
| #define | SELF_I2C_ADDRESS 0x20 |
| #define | BIC1_I2C_ADDRESS 0x20 |
| #define | BIC2_I2C_ADDRESS 0x20 |
| #define | BB_BIC_I2C_ADDRESS 0x20 |
| #define | MAX_IPMB_IDX 5 |
Enumerations | |
| enum | { BMC_IPMB_IDX , ME_IPMB_IDX , EXP1_IPMB_IDX , BB_IPMB_IDX = EXP1_IPMB_IDX , EXP2_IPMB_IDX } |
Variables | |
| IPMB_config | pal_IPMB_config_table [] |
Macro Definition Documentation
◆ BB_BIC_I2C_ADDRESS
| #define BB_BIC_I2C_ADDRESS 0x20 |
◆ BIC1_I2C_ADDRESS
| #define BIC1_I2C_ADDRESS 0x20 |
◆ BIC2_I2C_ADDRESS
| #define BIC2_I2C_ADDRESS 0x20 |
◆ BMC_I2C_ADDRESS
| #define BMC_I2C_ADDRESS 0x10 |
◆ IPMB_BB_BIC_BUS
| #define IPMB_BB_BIC_BUS I2C_BUS8 |
◆ IPMB_BMC_BUS
| #define IPMB_BMC_BUS I2C_BUS7 |
◆ IPMB_EXP1_BUS
| #define IPMB_EXP1_BUS I2C_BUS8 |
◆ IPMB_EXP2_BUS
| #define IPMB_EXP2_BUS I2C_BUS9 |
◆ IPMB_ME_BUS
| #define IPMB_ME_BUS I2C_BUS3 |
◆ MAX_IPMB_IDX
| #define MAX_IPMB_IDX 5 |
◆ ME_I2C_ADDRESS
| #define ME_I2C_ADDRESS 0x16 |
◆ SELF_I2C_ADDRESS
| #define SELF_I2C_ADDRESS 0x20 |
Enumeration Type Documentation
◆ anonymous enum
Variable Documentation
◆ pal_IPMB_config_table
|
extern |
