Provisioning Requirements - NPI

PE Network Provisioning​

Version 0.4.0​

October 2025​

4-5 Grand Canal Quay

Dublin, D02 X525

Republic of Ireland

Overview​

The purpose of this document is to specify a set of requirements new devices should be compliant with, so that any integration with the internal provisioning process is simple and fast. Same kind of problems keep appearing during new product introductions and instead of trying to resolve them every time a new device is added to the fleet, the intention is to formally specify the features and requirements that should be supported and tested by vendors before any integration work would commence. That would save a lot of time and effort for both the company and external vendors, since addressing these issues is expensive and slow for all parties involved. All of the requirements in this document are Must-Have (MH) and essential to the provisioning process.

Goals​

  1. Define required features: These features are supported by the device but can often come disabled or misconfigured.

  2. Define acceptance tests: Specify a set of tests and features that should work out-of-the-box for all devices.

Table of Contents​

Required features​

1. DHCP Options​

Applies to: BMC

To allow for the device to provision, we need to have a mapping between MAC addresses and serial numbers. For this reason, devices are required to submit their serial number within the DHCPv6 packet. For existing compatibility with Facebook systems, the following information string format is used:

OpenBMC:key1=value1:key2=value2[...:keyN=valueN]

The keys we are currently using are:

Prefix: Device family - must be present

Model: Hardware model - mandatory

Serial: Serial Number – mandatory

The vendor should use the string “OpenBMC” as the prefix, since the BMC is the device tasked with sending these DHCP options. If there are multiple network-capable components (microserver with an attached BMC), only one device should send the request - the BMC. The requests should have the serial number that reflects the main (chassis) serial number of the device. Meta owns the responsibility of extending this specification if needed, but in the current version of the provisioning requirements specification prefix, model and serial number are the fields required and vendors are not expected to deviate from this specification.

Examples provided are for a BMC (1):

  1. send vendor-class-identifier "OpenBMC:model=MINIPACK-SMB:serial=1234";

If DHCPv4 is agreed to be implemented, data is encoded in Option 60 (Vendor Class Identifier, RFC 3925).

For DHCPv6, this information will be included as a sub-option in the "Vendor-specific Information Option" (17). The sub-option number will be (1). (RFC 3315, section 22.15). In this case, an Enterprise Number needs to be included to be compliant.

Facebook has Enterprise Number 40981, and is provided merely as an example here - it is valid and expected for the vendor to provide its own number instead.

Example DHCP config:

send vendor-class-identifier "OpenBMC:model=MINIPACK-SMB";

option dhcp6.linuxboot-id code 17 = {

  integer 32, # enterprise number

  integer 16, # sub option

  integer 16, # length

  string

};

send dhcp6.linuxboot-id 40981 1 44 "OpenBMC:model=MINIPACK-SMB=serial=1234";

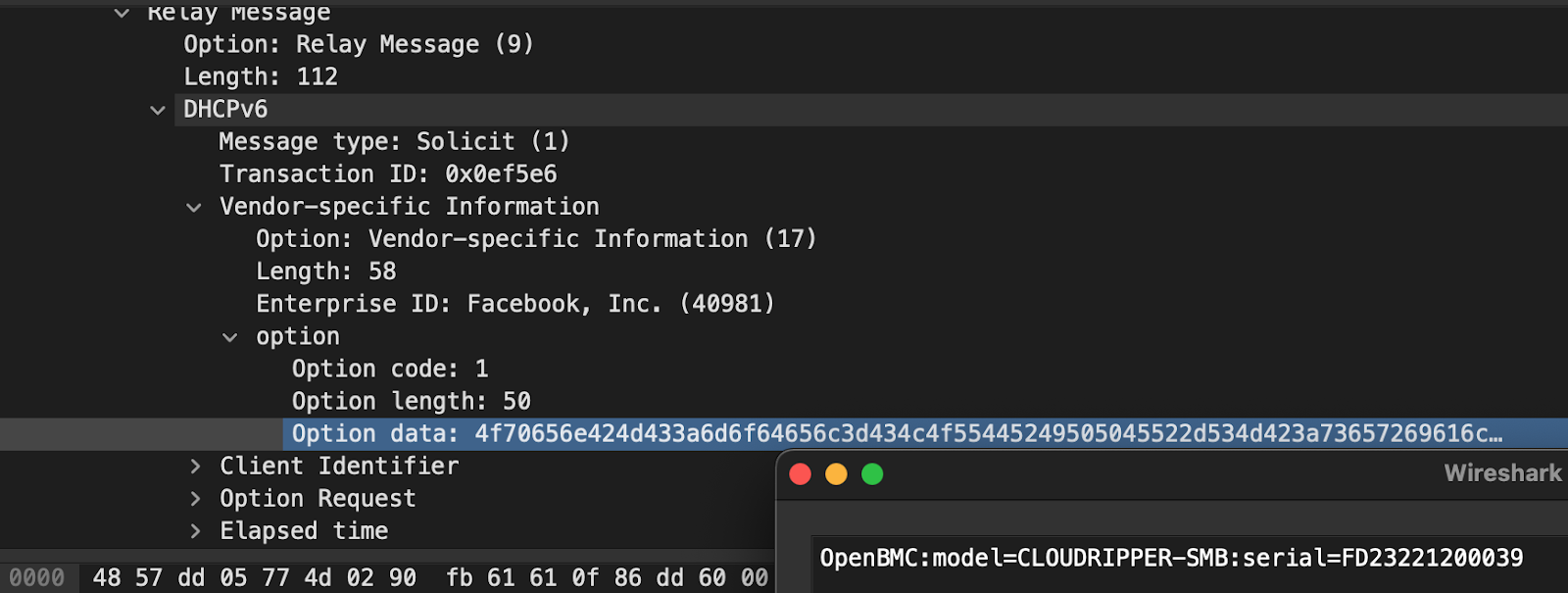

DHCPv6 Option 17 Encoding Example DHCPv6 Option 17 Encoding Example

2. IPv6 Stateless Address Autoconfiguration Support​

Applies to: BMC​

In order to be able to contact the device, the provisioning system needs to correctly assume which address it needs to connect to. Therefore, it is necessary to support stateless address autoconfiguration according to RFC 4862.

  • System sends ICMPv6 Router Solicitation (RS) message
  • Gets a Router Advertisement (RA) message
  • Configures the SLAAC address on the network management interface out of the box, respecting the flags received within the RA message

3. SSH access capability​

Applies to: BMC

Provisioning system needs to be able to log in out of the box and issue commands to commence the provisioning process. Therefore, the SSH daemon on port 22 will accept connections regardless of the originating address and allow access with OpenBMC default credentials.

4. Console Auto Discovery​

Applies to: BMC

At every boot time (even with the initial image shipped on the device from the factory) and once per day, the OpenBMC should print a special string to the serial console used to automatically detect the location and port of the console server the device plugs into.

Ideally, the BMC bootloader would also output the console autodiscovery string described in this document. If, from the implementation perspective, it’s too complex to read the serial from a bootloader environment, it is a perfectly acceptable alternative to do it in OpenBMC only.

The string begins with an exclamation mark, followed by the magic string “serfmon” and 3 fields separated by colons - serial length, serial number, and checksum, as follows:

!serfmon:{serial number length}:{serial number}:{serial number checksum}

Example:

!serfmon:10:AI21204498:8

Remarks

Both serial number length and checksum are printed as a decimal number.

Checksum is calculated by bitwise XORing all characters of the serial number together.

Serial number refers to the main, chassis serial number of this device, not the BMC’s serial number.

String is followed by a newline.

Reference implementation:

C

char serial[]="AI21204498";
char checksum = '\0';

for (int i=0; i<strlen(serial); i++)
   checksum ^= serial[i];

printf("!serfmon:%d:%s:%d\n", strlen(serial), serial, checksum);

Python 3

from functools import reduce
serial = "AI21204498"

checksum = reduce(lambda a, b: a ^ ord(b), serial, 0)
print("!serfmon:{0}:{1}:{2}".format(len(serial), serial, checksum))

5. Bootloader​

Applies to: BMC

BMC serial console speed is required to be 9600 bps, 8-N-1, no flow control. Bootloader should offer CLI on interruption where a custom image can be specified and booted by any means supported.

Applies to: Microserver

Bootloader should have a networking stack with IPv6 support and should be able to support netboot from such a network. To netboot, devices should support TFTP and HTTP/HTTPS. Also, it’s important to implement DNS resolving support, so if a hostname is provided in the bootfile URL, the name servers returned by the DHCP request should be used to resolve this hostname into an IP. DHCPv6 implementation used to netboot should rely on DUID-LLT instead of DUID-EN, since we rely on the client's link-layer address present within the packet.

6. Boot sequence behavior​

Applies to: Microserver

  • PXE IPv6 boot will always be the first choice
  • Local SSD/flash is the next choice
  • USB flash drive is the next choice (optional, disabled by default).
  • Start from beginning

There should be no unconventional requirements to boot the kernel, like providing the ACPI tables as a binary blob, etc. Those should be defined by the BIOS and loaded into the main memory for the OS to consume.

BIOS should, after loss of power, default to ON state when power is reapplied and NOT try to return to "last known state".

7. Weutil support​

Applies to: BMC

To retrieve the Serial Number, Asset Tag and other information essential for device identification, the “weutil” command is used. The output is provided as colon+space separated keys and values, one per line.

Weutil being able to read the chassis EEPROM is a hard requirement on the BMC side. Format for these should be previously agreed with Meta.

Applies to: MICROSERVER

Similar commands are provided for major components in the system (e.g., peutil tool to dump the information about PIMs) - these are expected to get implemented on the x86 side and details agreed with Meta.

Output format​

Example command output:

            Wedge EEPROM :
            Version: 1
            Product Name: WEDGE100S12V
            Product Part Number: 20-002324
            System Assembly Part Number: 13-5000013-03
            Facebook PCBA Part Number: 132-000052-03
            Facebook PCB Part Number: 131-000025-04
            ODM PCBA Part Number: NP3FB7632001A
            ODM PCBA Serial Number: RRG43015754
            Product Production State: 4
            Product Version: 1
            Product Sub-Version: 2
            Product Serial Number: RRG43015754
            Product Asset Tag: 8377476
            System Manufacturer: Joytech
            System Manufacturing Date: 04-15-21
            PCB Manufacturer: ISU
            Assembled At: Joytech
            Local MAC: 90:3C:B3:17:08:4C
            Extended MAC Base: 90:3C:B3:17:08:4D
            Extended MAC Address Size: 128
            Location on Fabric: WEDGE100
            CRC8: 0xc3

Weutil mandatory fields:

  • Product Serial Number
  • Local MAC
  • Product Name
  • Product Asset Tag
  • Product Part Number
  • Product Version
  • Product Sub-Version
  • CRC8

As an optional argument, the tool should be able to take a path (eeprom readout binary file) and parse/display the data as if it were reading the eeprom itself.

JSON output support - provide weutil --json to produce both machine and human parsable output, like:

{
    "Product Name": "ELBERT",
    "Product Part Number": "7388",
    "System Assembly Part Number": "ASY123456789",
    "Product Serial Number": "SJC1234567",
…

This reduces the chance of introducing bugs due to parsing.

Serial number needs to match the chassis serial number, even if the component storing the serial number is a FRU and can be replaced itself. The reasoning behind this is that the serial number in internal databases references the chassis itself, regardless of which parts are swapped throughout the product’s life cycle.

8. Layer 2 Packet Forwarding​

Applies to: BMC, Microserver

The device must support the link-layer discovery protocol (LLDP). Therefore, it needs to forward packets with a destination physical address of 01:80:c2:00:00:0e to all other ports instead of dropping them.

Internal switch usually consists of an Ethernet IC like the BCM5389, which loads its configuration through an externally connected EEPROM. Option to support MAC multicast packets forwarding needs to be explicitly configured - one of the things frequently missing in devices delivered.

BMC should support lldp-util command out of the box and this command is expected to display the received lldp broadcasts in the following format:

OpenBMC# lldp-util
Listening for LLDP Packets…

LLDP: local_port=eth0 remote_system=rsw1aa.99.tst1 remote_port=Ethernet36

9. wedge_us_mac.sh​

Applies to: BMC

This command, when executed on the BMC, returns the mac address of the x86/microserver. The mac address is printed in the standard colon-separated hex format followed by a newline. Exit code should differ from 0 in case there was a problem reading/retrieving the mac due to e.g. communication problems with the microserver.

Example:

bash$ wedge_us_mac.sh
de:ad:be:ef:ca:fe
bash$

If the x86/microserver has more than one management ethernet, the command with no arguments will retain the existing behavior and when invoked with --interface2 or --interfaceN will return the N-th interface’s MAC address.

10. wedge_power.sh script​

Applies to: BMC

One of the most important features the BMC is required to have on delivery is the correct power control script behavior which is defined in FBOSS Meta Switch Architecture document, section I-3 System Control, subsection Power.

It is expected that the wedge_power.sh off command takes no more than 30 seconds, and wedge_power.sh on and reset take no more than 10.

11. Firmware upgrade support​

Applies to: Microserver

Upgrading the firmware can be done from the microserver side. A fixed order of upgrade should be clearly defined, addressing potential issues where upgrading a component’s controller might prevent further communication with the component itself.

Upgrade binary that performs the actual write should be supplied by the vendor, preferably with source code. If that is not possible, a static binary built for the target platform is required. The entire tooling to upgrade the firmware should not exceed 25 MB in size, as it might need to be included in the universal ramdisk image which also applies to platforms with little memory.

Bootloader is required to have a recovery path in case of a bad/failed upgrade. It can either be an active-backup image configuration or an additional read-only failsafe image, with the latter preferred. There should exist no scenario in which the device requires physical/JTAG access to recover a failed upgrade or a broken firmware image. This applies to malicious intent scenarios as well as accidents.

Upgrade time is to be considered during the hardware design phase and the entire firmware upgrade procedure for the device, assuming version mismatch in every component, should not exceed 20 minutes. Suggested strategy for programmable logic devices is to avoid using offline mode and choosing devices which support background programming by e.g., writing the SPI flash the device is bootstrapped from. That way, all components’ versions change simultaneously on the next reboot and reduce the number of different states the switch can be in.

Performing the upgrade should be an atomic operation, with two possible outcomes - success or failure. After the operation finishes with a successful outcome, we expect the component to be upgraded; staging the upgrade for future writes violates this requirement, as there might be a discrepancy between provisioning systems considering the component upgraded vs. the component failing a staged future write.

We require the ability to downgrade the firmware versions, so a rollback is possible in case of a bad/buggy firmware release.

12. Serial console speed​

BMC serial console is always 9600 bps, 8-N-1 as this is a fleetwide standard.

For compatibility reasons, serial output for both BIOS and OS on the x86 must match the same speed - 57600 bps 8-N-1 (therefore, terminal implementation on the BMC must support this).

For further information, please refer to Meta Switch Architecture document section I-5 Console Connection.

Provisioning Requirements Verification Delivery​

All the features in this requirement must be tested by ODM/JDM vendors either manually or with automated tests, before exit each development phase, e.g. EVT, DVT, PVT and any related BOM changes.

As a mandatory deliverable, vendors should provide the google sheet formatted as below, either as a standalone sheet or a tab of the test verification sheet. Each test result checked as “Done” should have proof with either links of screenshot, automated testing output, log file, or video clip. The format example of the sheet:

Feature IDOwnerFeature NameSW PlatformDescription (Link)Test Caseslink of screen capture, log or videoDoneVendor POC - Approval-byApproval DateDEPENDENCY
PF1ProvisioningDHCP OptionsBMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#1-dhcp-optionsCheck DHCP packets and make sure the all the required options are implemented[]
PF2ProvisioningIPv6 Stateless Address Autoconfiguration SupportBMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#2--ipv6-stateless-address-autoconfiguration-supportCheck stateless address autoconfiguration compliance with RFC 4862[]
PF3ProvisioningSSH access capabilityBMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#3-ssh-access-capabilitySSH daemon listen on port 22 and accept SSH login[]
PF4ProvisioningConsole Auto DiscoveryBMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#4-console-auto-discoveryVerify special "serfmon" string with options print to serial console[]
PF5ProvisioningBootloaderx86 and BMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#5-bootloaderBMC: check serial console speed as 9600bps, 8-N-1 and no flow control x86: verify IPv6 based TFTP and HTTP/HTTPS support. verify netboot rely on DUID-LLT[]
PF6ProvisioningBoot sequence behaviorx86https://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#6-boot-sequence-behaviorVerify boot sequence order as PXE -> SSD/Flash -> USB drive[]
PF7ProvisioningWeutil supportx86 and BMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#7-weutil-supportBMC: verify weutil read and print chassis EEPROM in required format x86: verify weutil read and print all FRU EEPROM info in required format, including chassis[]
PF8ProvisioningLayer 2 Packet Forwardingx86 and BMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#8-layer-2-packet-forwardingVerify LLDP and lldp-util works []
PF9Provisioningwedge_us_mac.sh readyBMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#9-wedge_us_macshRun commands on BMC, and print the MAC of x86[]
PF10Provisioningwedge_power.sh script readyBMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#10-wedge_powersh-scriptVerify the wedge_power.sh works as required, no more than 30s for "off", no more than 10s for "on" and "reset"[]
PF11ProvisioningFirmware upgrade supportx86https://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#11-firmware-upgrade-supportFor all firmwares, verify upgrade and downgrade works[]
PF12ProvisioningSerial console speedx86 and BMChttps://facebook.github.io/fboss/docs/provisioning/provisioning_requirements_npi/#11-firmware-upgrade-supportx86: verify serial for both BIOS and OS is 57600bps, 8-N-1 []
